Brother MFC-J6520DW Service Manual

3-25
Confidential
[ 3 ] Disconnecting Cables, Removing Accessories, and Setting the Protective Part
Before starting disassembly, perform the following procedure.
(1) Disconnect the following:
- Telephone line cord, if connected
- Power cord (for 200 V models)
- USB cable, if connected
- LAN cable, if connected
- External memory card, if connected

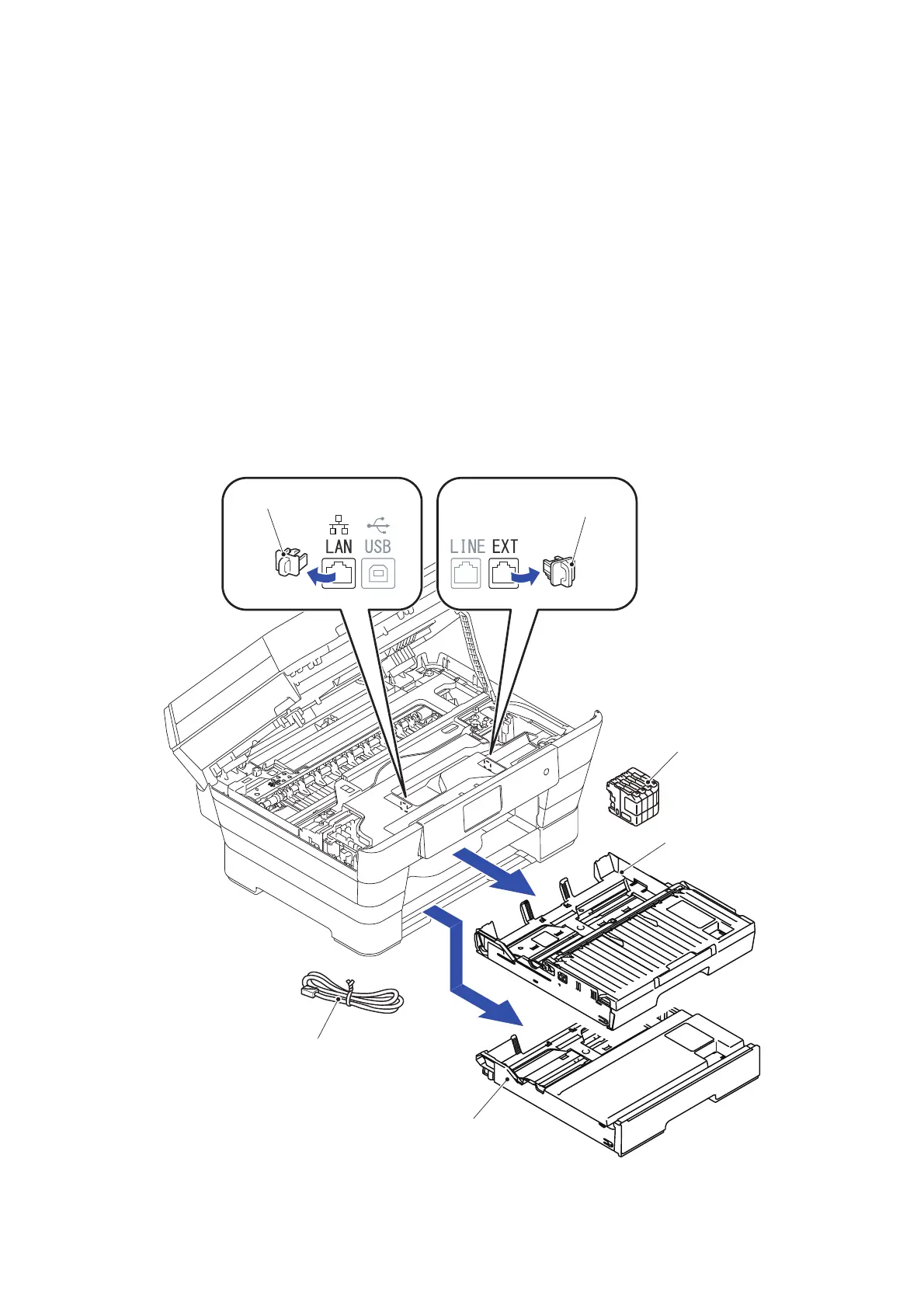

(2) Remove the following:
- Paper tray ASSY #1
- Paper tray ASSY #2
- Ink cartridges
- LAN port cap
-EXT cap
LAN port cap
EXT cap
Telephone line cord
Ink cartridges
Paper tray ASSY #1
Paper tray ASSY #2

Brother MFC-J6520DW Specifications

General

Type	all in one
Color	gray
Tray Capacity	250
Automatic Document Feeder Capacity	35 sheets
Paper Size	11" x 17"
Paper Handling	up to 250 sheets
Color Print Speed	20 pages per minute
Mono Print Speed	22 pages per minute
Print Resolution Mono	up to 6000 x 1200
Print Resolution Color	up to 6000 x 1200
Maximum Number of Pages Per Month	up to 25, 000
Scanner Type	flatbed
Scan Resolution	up to 2400 x 1200
Copier Resolution Mono	up to 2400 x 1200
Copier Resolution Color	up to 2400 x 1200
Fax Function	yes
Cartridges	lc103bk/c/m/y
Number Of Cartridges	4
Internal Memory	yes
Memory Card	yes
Network	wired, wireless
Connectivity	usb
OS Compatibility	pc: windows xp home, xp professional, vista, 7, 8, server 2003, server 2003 r2, server 2008, server 2008 r2 or server 2012, mac: os x 10.6.x, 10.7.x or 10.8.x
Mobile Devices Connection	yes

Weight and Dimensions

Height	21.8 inches
Width	17 inches
Net Weight	31.5 pounds
