3-62

Confidential

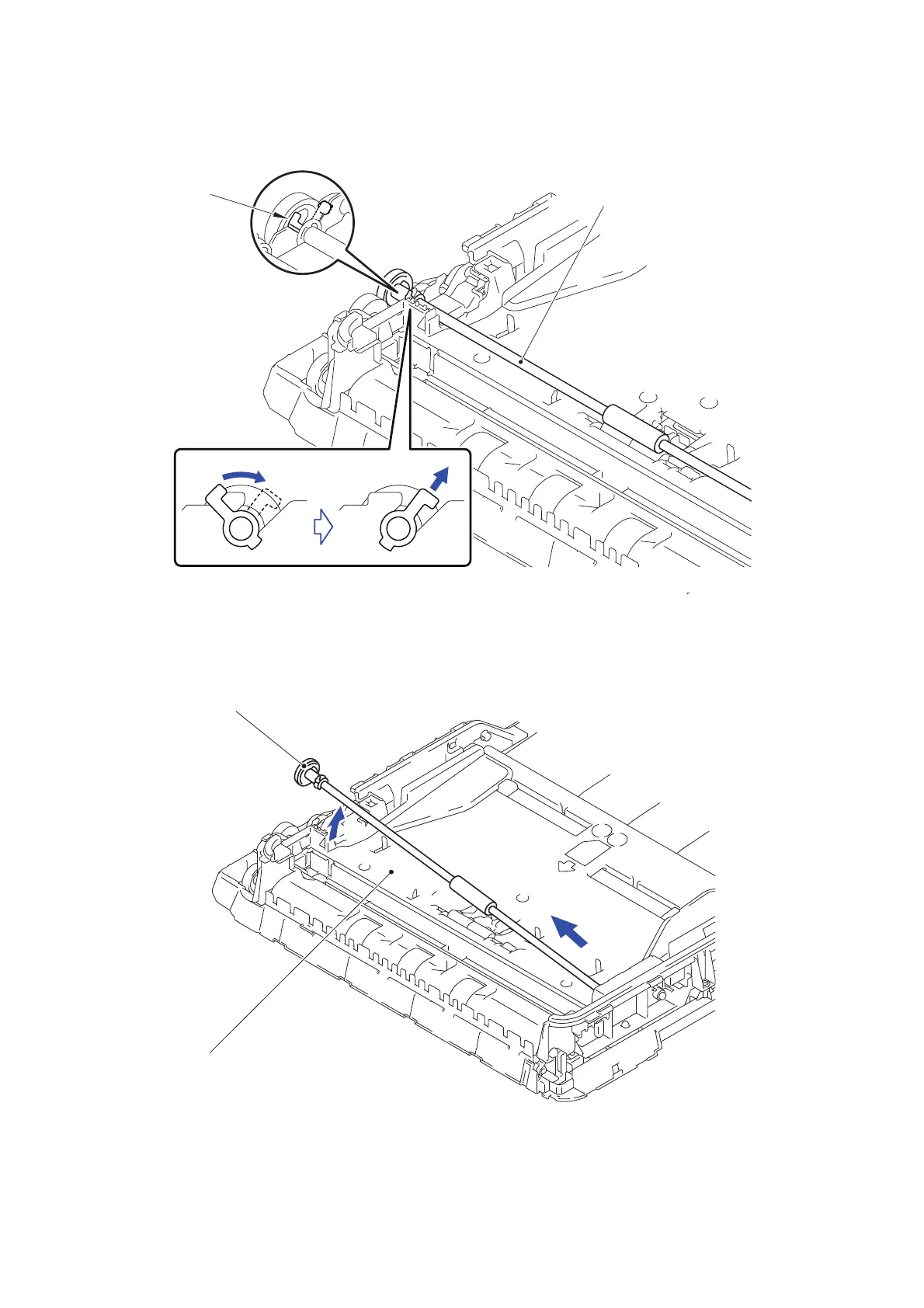

(3) Turn the Bushing of the Document feed roller ASSY in the direction of the arrow 3a

to unlock it.

Fig. 3-59

(4) Remove the Document feed roller ASSY from the Upper document chute.

Fig. 3-60

Document feed roller ASSY

Bushing

3a

3b

Document feed roller ASSY

Upper document chute

4a

4b
