(3) Turn the Document scanner base ASSY right side up.

(4) Lift up the rear side of the Document scanner top cover as shown in the figure.

Release the six Hooks at the front side and remove the Document scanner top

cover from the Document scanner base ASSY.

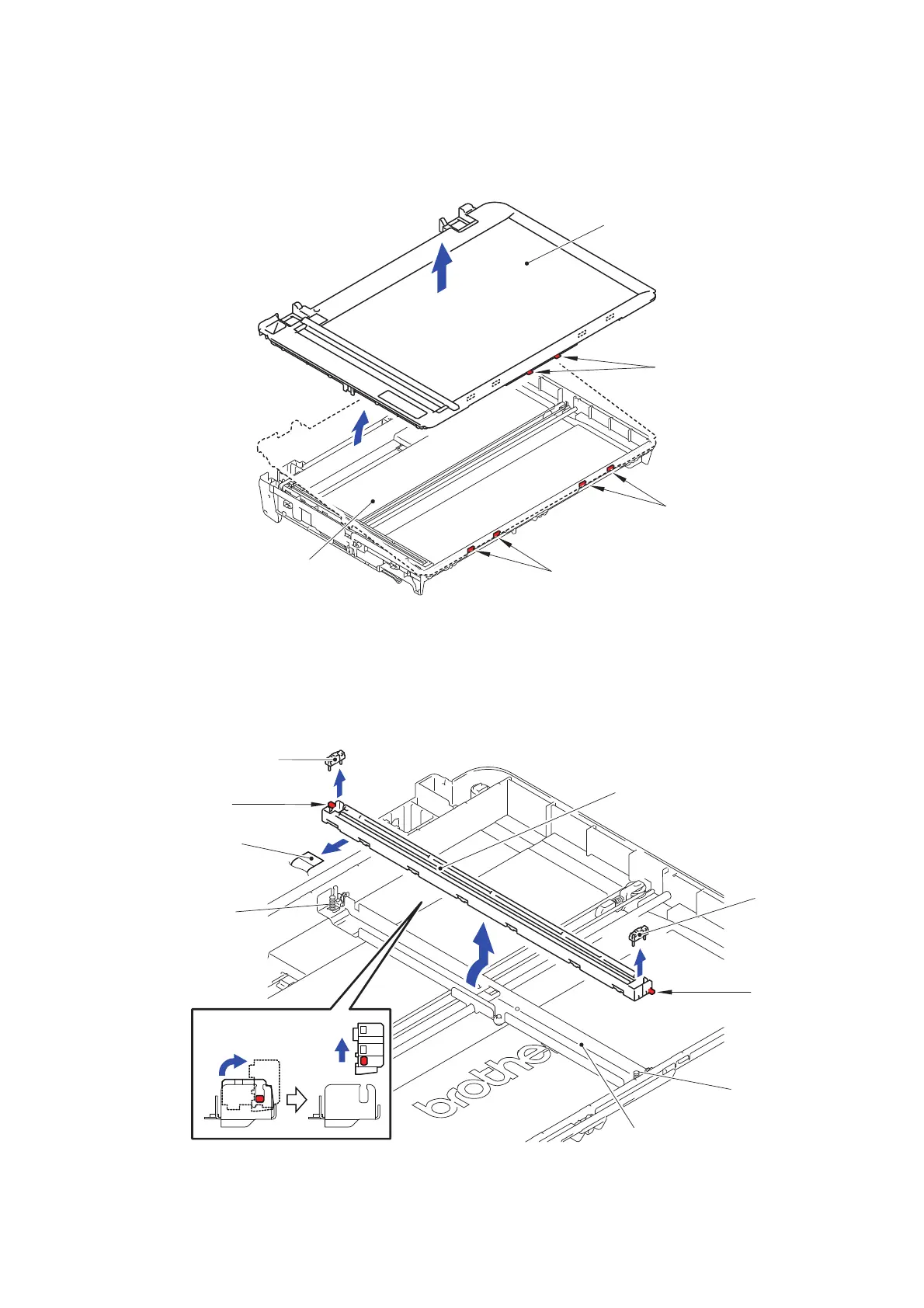

Fig. 3-71

(5) Take off the two CIS roller holders from the First side CIS unit.

(6) Disconnect the First side CIS flat cable from the First side CIS unit and remove the

First side CIS unit from the CIS carriage.

Note: Be careful not to lose the CIS spring when removing the First side CIS unit.

Fig. 3-72

Document scanner top cover

Document scanner base ASSY

Hooks

<Front>

<Rear>

CIS roller holder

CIS roller

holder

First side CIS unit

CIS spring

First side CIS flat cable

CIS carriage

CIS spring
