Brother MFC-J6520DW

3-90
Confidential

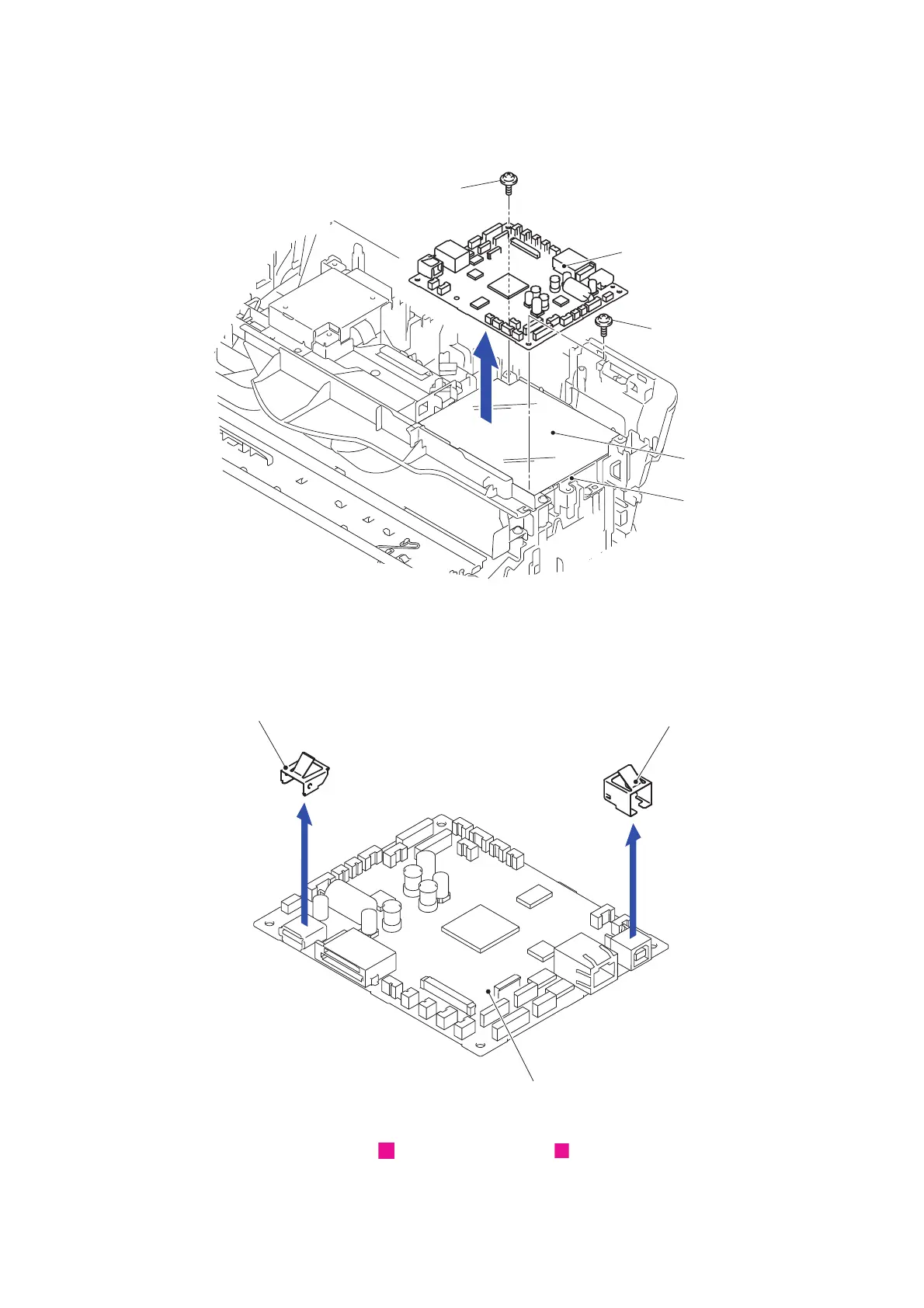

(5) Remove the two screws (TAPTITE CUP S M3x6) and remove the Main PCB ASSY
from the Main PCB frame.
Fig. 3-104
(6) Remove the USB ground plate from the Main PCB ASSY.
(7) Remove the Pictbridge ground plate from the Main PCB ASSY.
Fig. 3-105
Harness routing: Refer to " Main PCB ASSY", " Main PCB ASSY and MJ PCB
ASSY"
TAPTITE CUP S M3x6
TAPTITE CUP S M3x6
Main PCB ASSY
Main PCB frame
<Front>
<Rear>
Insulation film
USB ground plate
Pictbridge ground plate
Main PCB ASSY
1
2
