Brother MFC-J6520DW

To Next Page

To Previous Page

3-111

Confidential

(4)

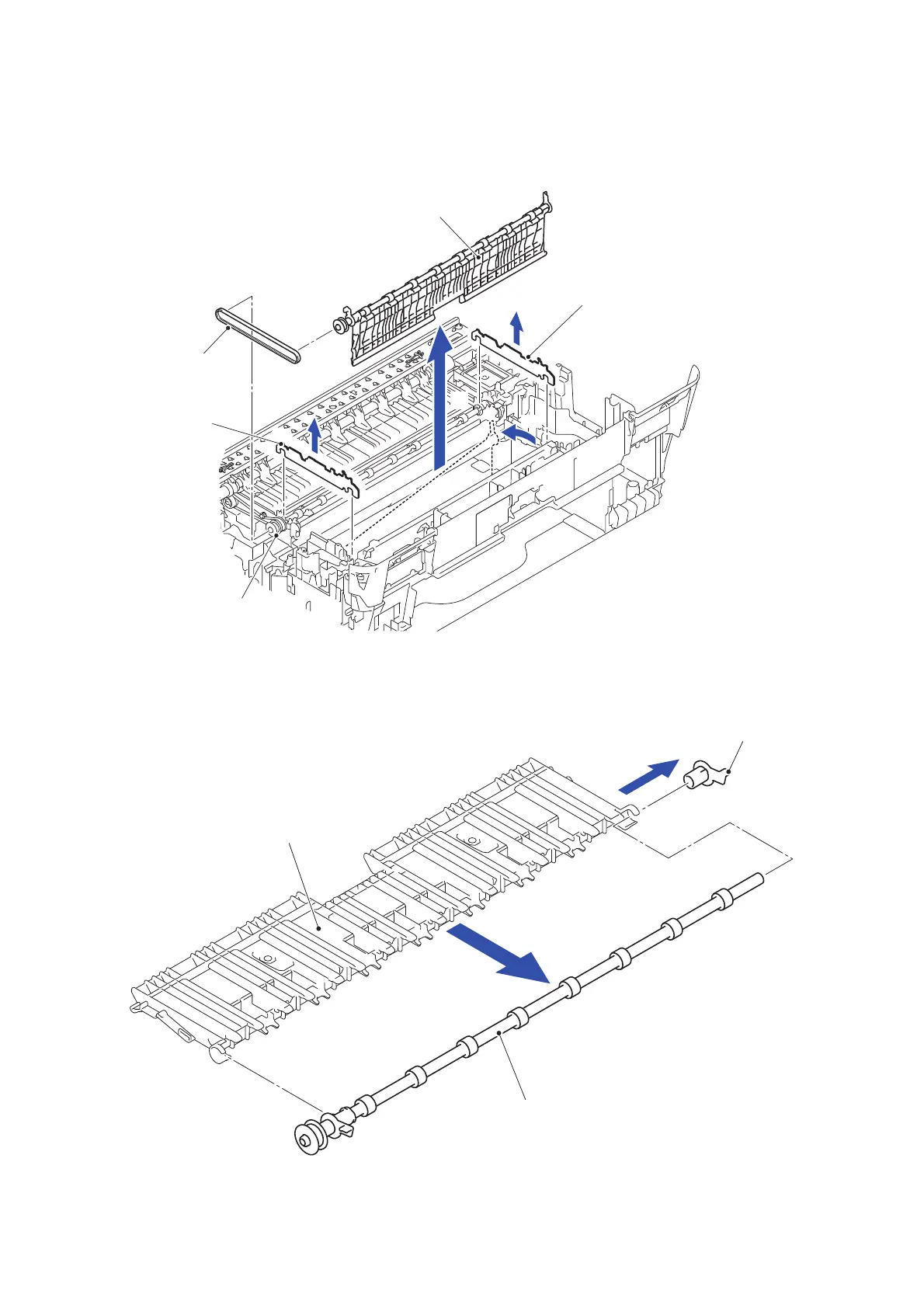

Remove the two Switchback side frames.

(5) Remove the Switchback roller belt from the Switchback roller and

Paper ejection

roller

(6) Remove the Switchback roller.

Fig. 3-130

(7) Remove the Bushing from the Switchback outer paper guide.

(8) Remove the Switchback roller from the Switchback outer paper guide.

Fig. 3-131

Switchback roller belt

Switchback roller

Paper ejection roller

Switchback side frame

Switchback

side frame

Switchback roller

Bushing

Switchback outer paper guide
