4-13

Confidential

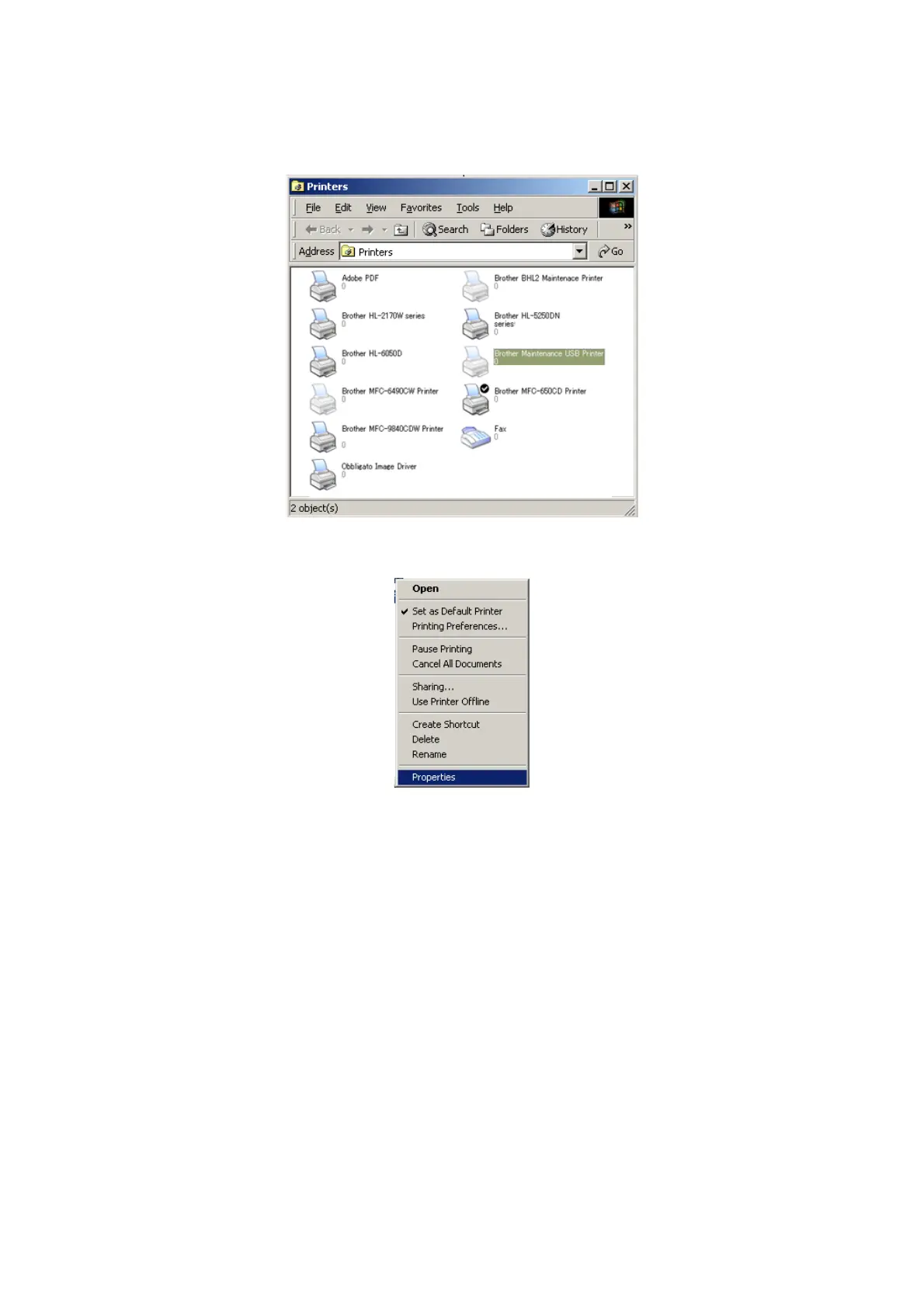

The Printers window appears as shown below.

2) Right-click the Brother Maintenance USB Printer driver icon.

3) Click Properties.
