App. 1-2

Confidential

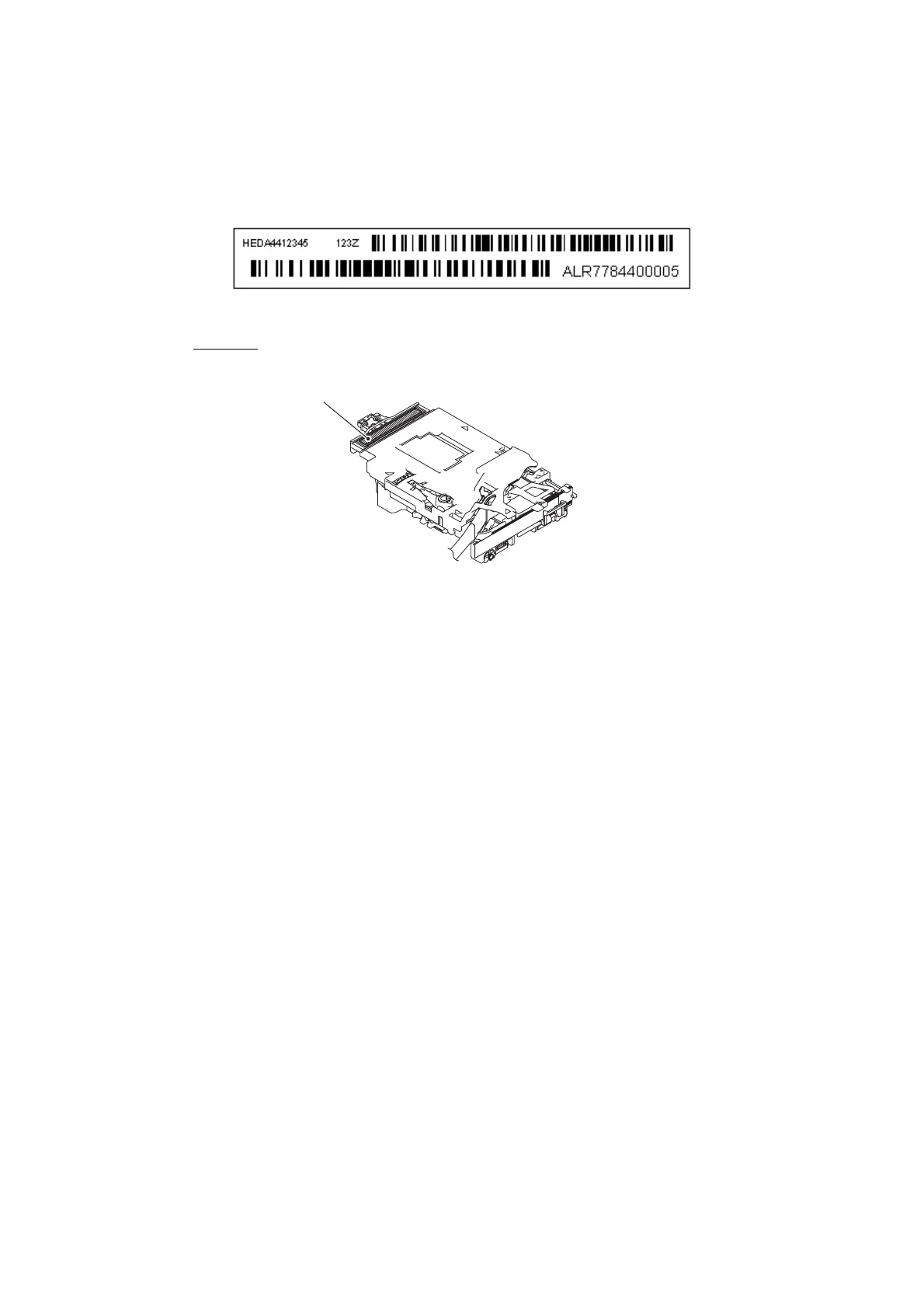

(2) Head property label

The property code of the head/carriage unit is printed on the head property label

attached to the head/carriage unit.

 On the head/carriage unit

Location

Fig. App 1-2

Head property label
