BRP ROTAX 916 i A Series Installation Manual

BRP-Rotax
INSTALLATION MANUAL
916 i TYPE C24

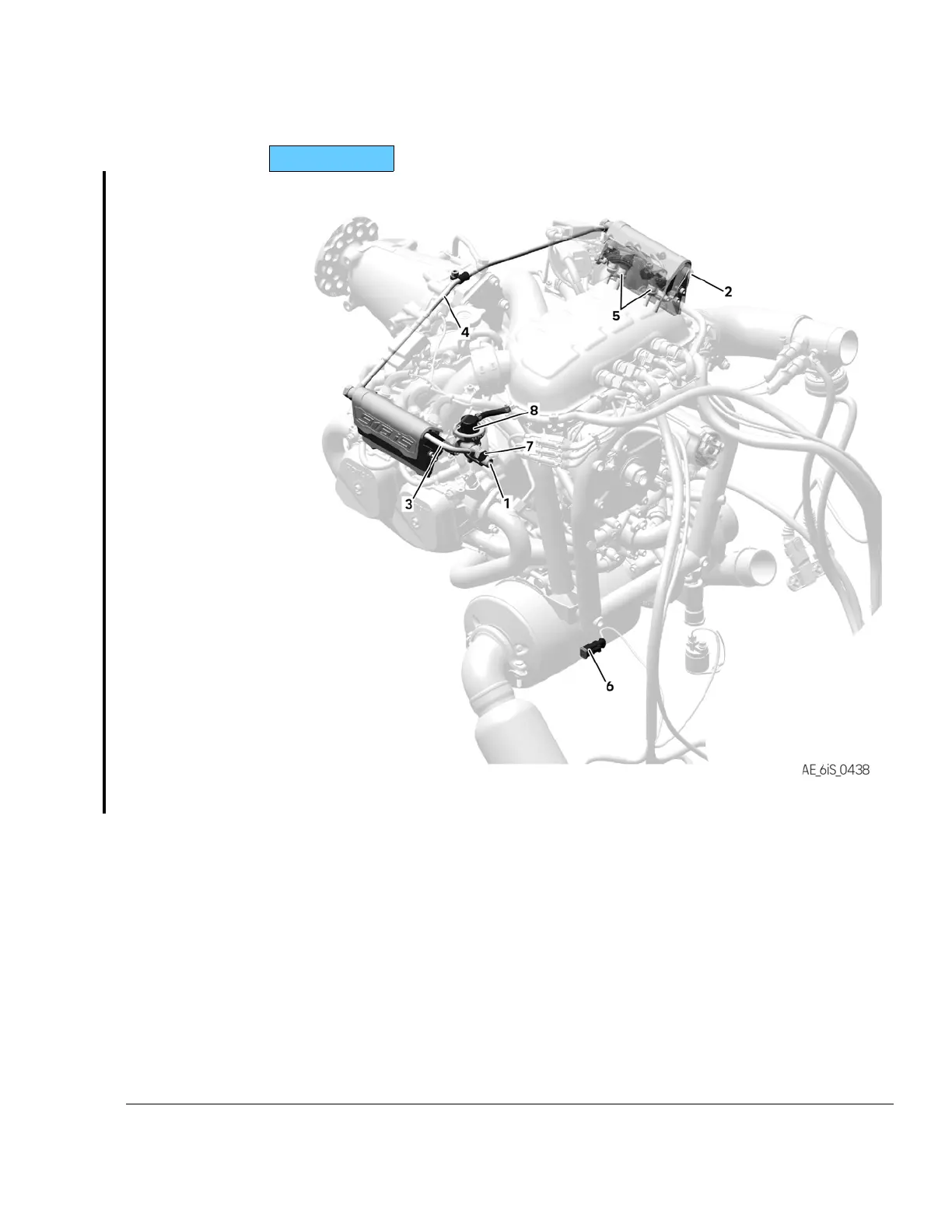

Figure 7.3: Fuel System: Interface overview and components
1
Fuel rail 2/4 outlet line (hydraulic
Interface)
2
Fuel rail 1/3 feed line (hydraulic Interface)
3 Fuel rail 4
Fuel line assy.
5
Injection valves
6
Fuel pump connectors (electrical
interface)
7
Banjo bolt adapter (mechanical
interface)
8
Fuel pressure regulator
Effectivity: 916 i A / C24
Edition 0/Rev. 1
73–00–00
Page 5
December 01 2023
