BRP-Rotax
INSTALLATION MANUAL
AIR COOLING INTERFACES
Cooling air baffle

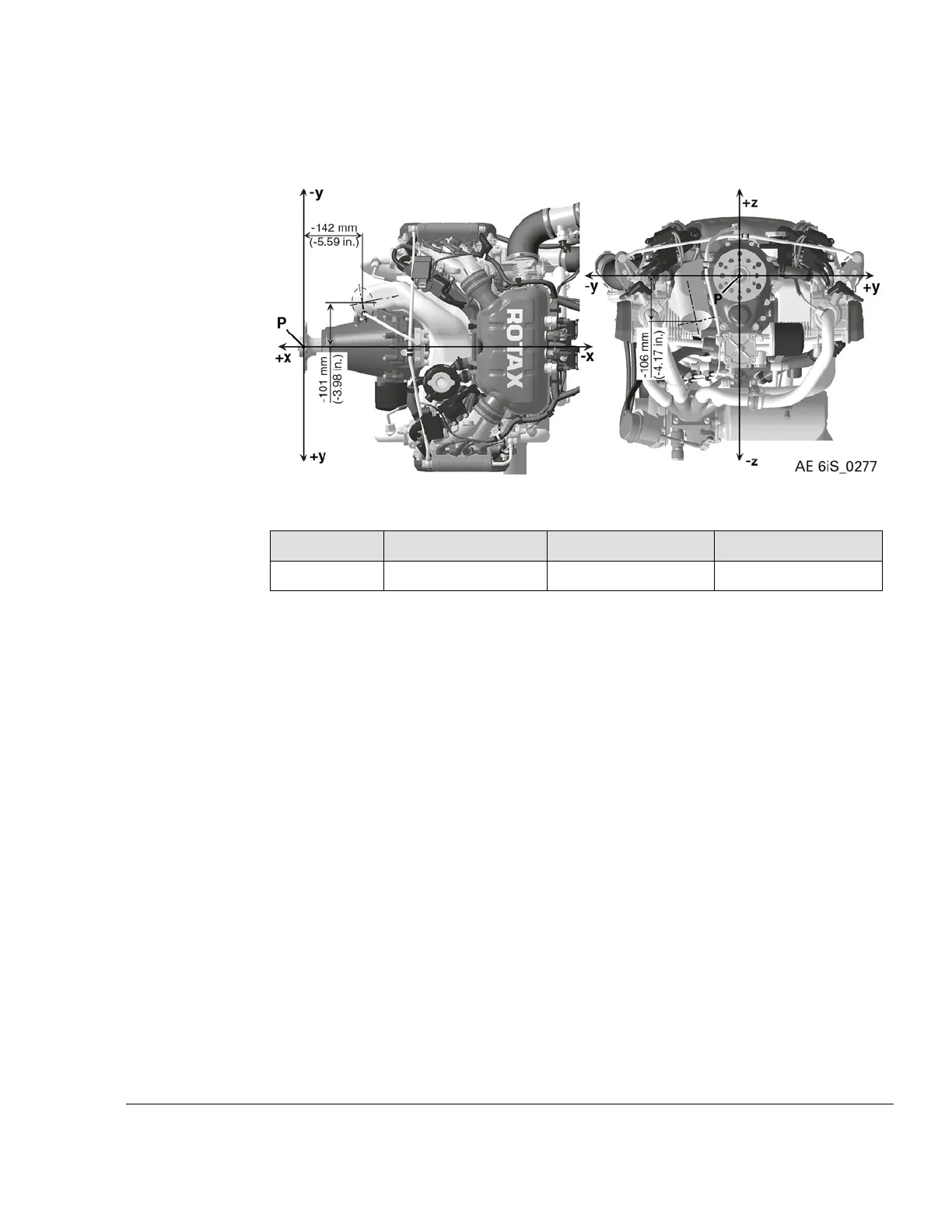

Figure 8.5: Cooling air baffle position, TYPICAL
Position x-axis y-axis z-axis
P1
- 142 mm (- 5.59 in.) - 101 mm (- 3.98 in.) - 106 mm (- 4.17 in.)
General
information
NOTE
In some special cases a separate cold air supply to the air baffle should be
provided.
Cylinder wall
temperature
Max. permitted cylinder wall temperature on hottest cylinder is 200 °C (392 °F). See the
following figure. The cylinder wall temperature can be measured using a thermocouple.
NOTE
If this temperature is exceeded, appropriate measures (e.g. cooling air ducts,
modifications to cowling, etc.) must be taken to bring it within limits again.
Effectivity: 916 i A / C24
Edition 0/Rev. 1
75–00–00
Page 7
December 01 2023
