BRP ROTAX 916 i A Series - Installation Overview

BRP-Rotax
INSTALLATION MANUAL
INSTALLATION OVERVIEW

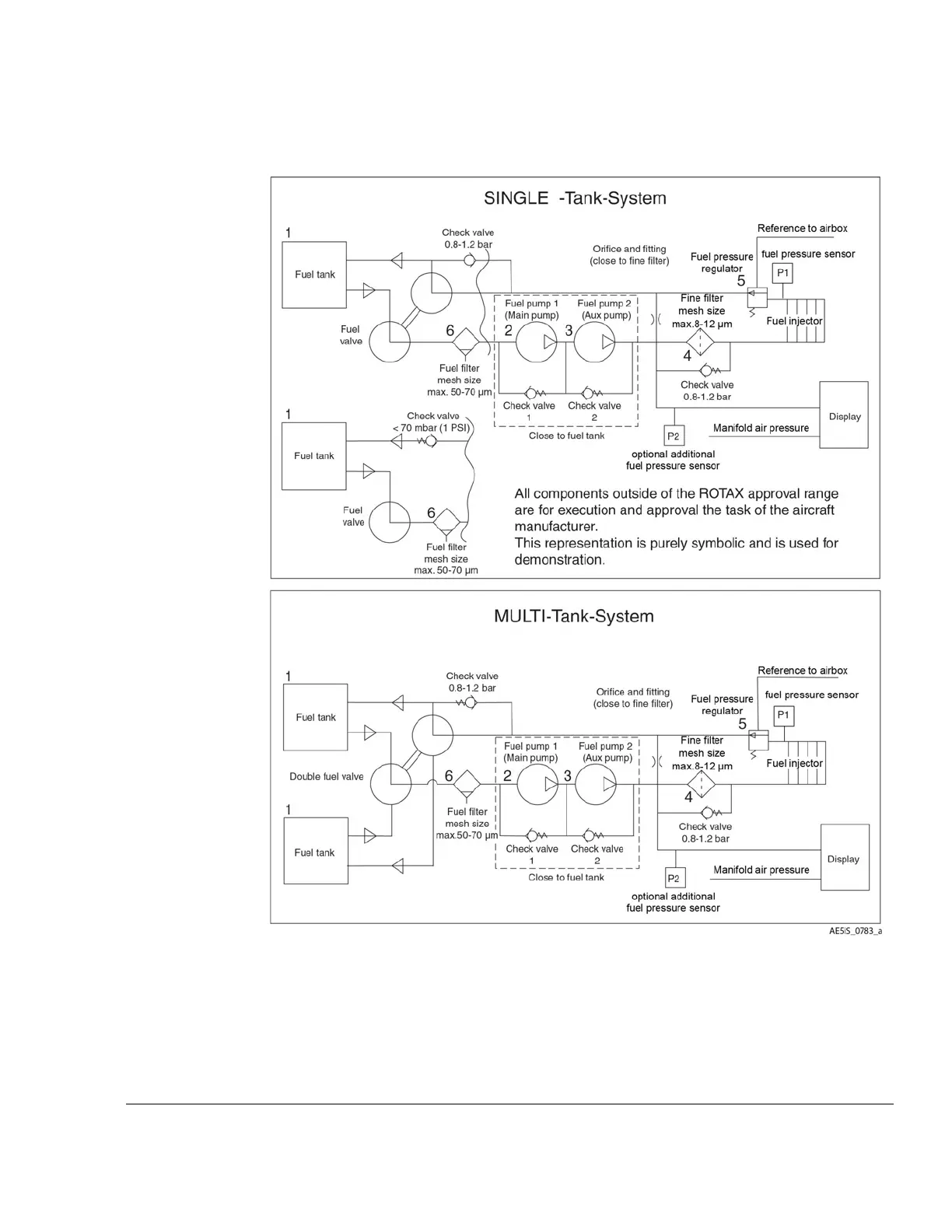

Figure 7.4: Fuel system
1 Fuel tank 2
Fuel pump 1
3
Fuel pump 2
4 Fine filter
5
Fuel pressure regulator
6
Coarse filter/water trap
Effectivity: 916 i A / C24
Edition 0/Rev. 1
73–00–00
Page 9
December 01 2023
