SYSTEM DESCRIPTION
For a detailed System description refer to the latest issue of the Operators Manual (OM).

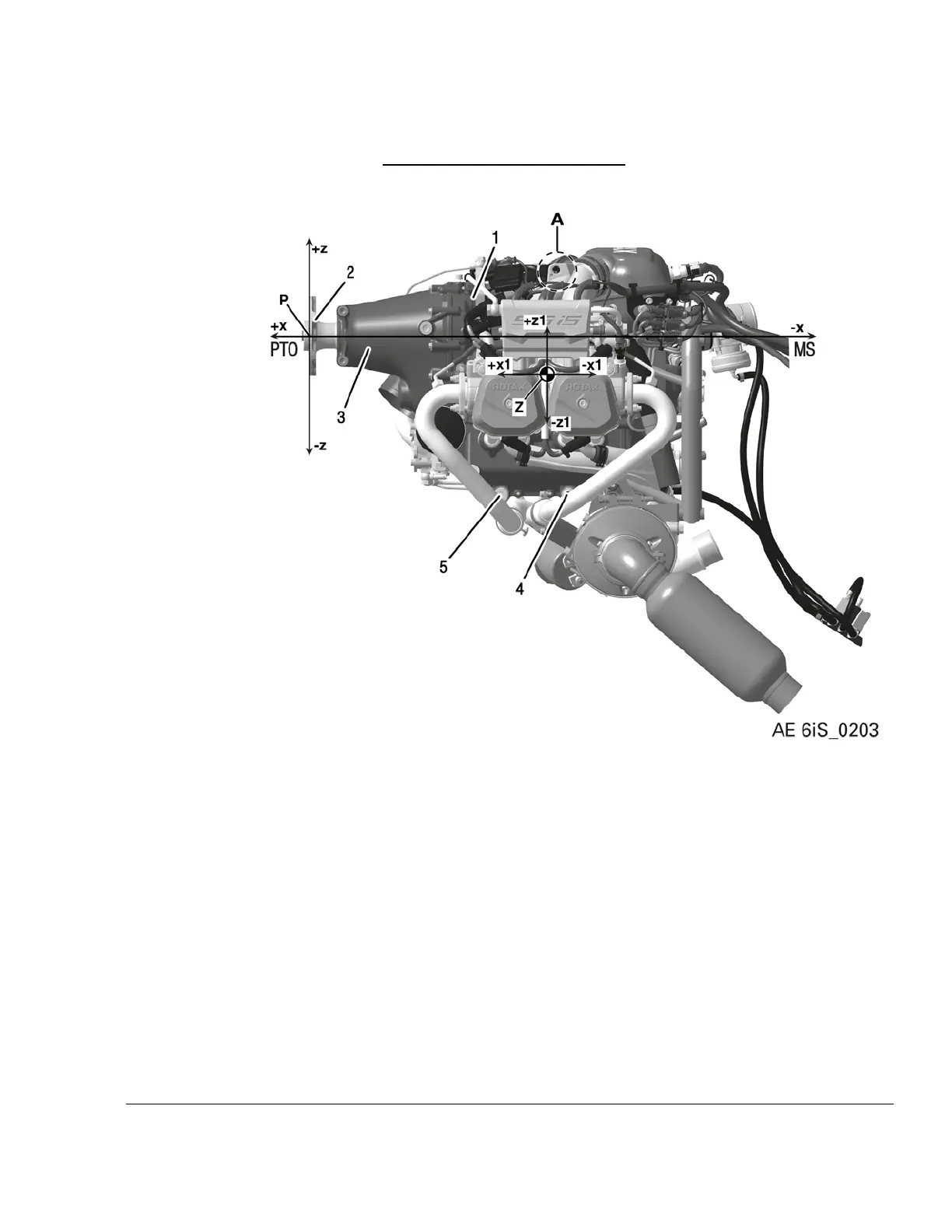

Figure 5.2: Engine side view
1
Engine serial number
2
Propeller flange
3
Propeller gearbox
4
Connection for return line, both sides
mandatory
5 Connection for return line A
Attachment points (for engine transport)
Z
Center of gravity (Z)
P
Reference coordinate system (X, Y, Z)
