BRP ROTAX 916 i A Series Installation Manual

BRP-Rotax
INSTALLATION MANUAL
9
Pressure control valve (PCV)
10
Actuator assy. (wastegate)
11 Airbox 12 Intake manifold
MECHANICAL INTERFACES
Pressure control
valve (PCV)
Interface Parameter
Min. Max.
Tightening torque
–
1 Nm (9 in. lb)
Pressure control
valve (PCV)

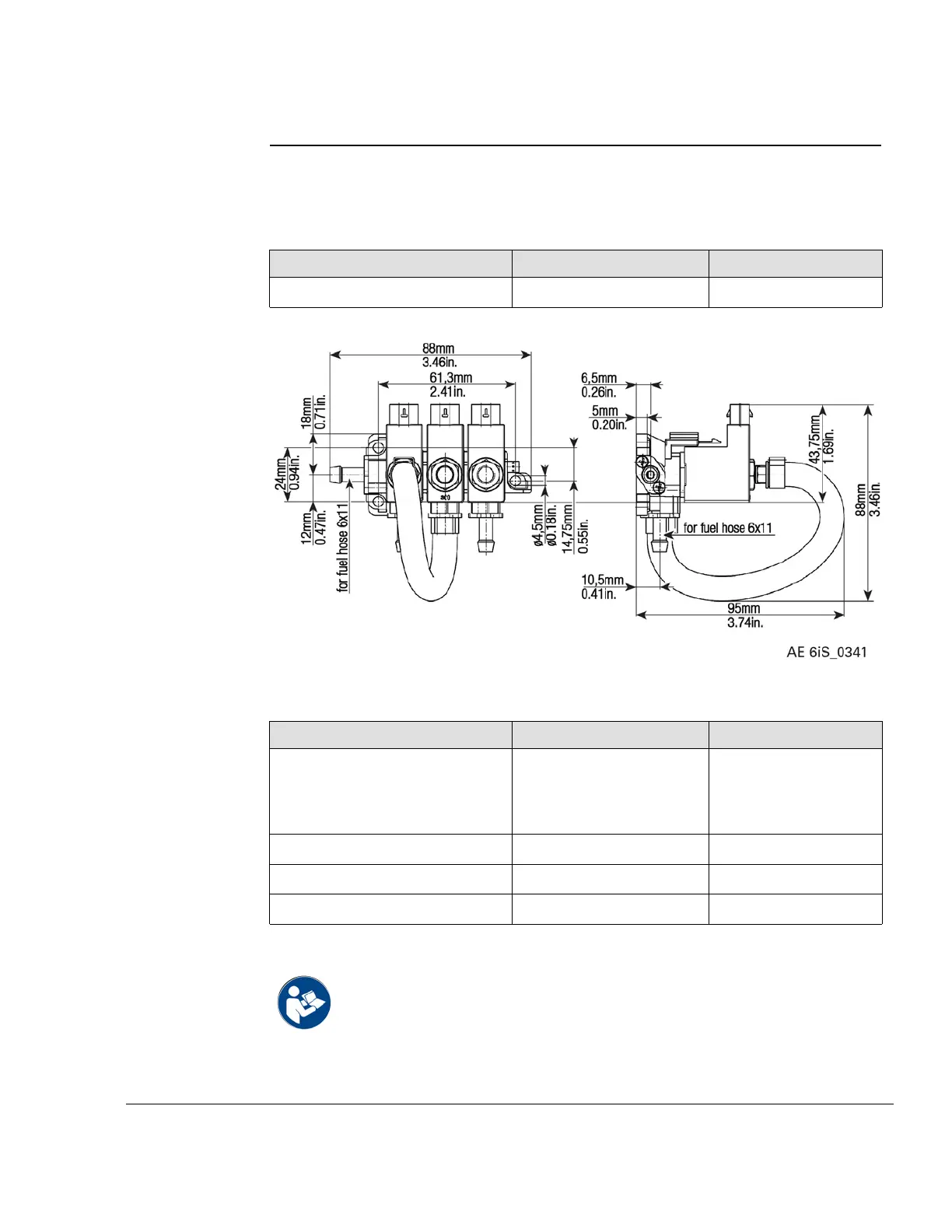

Figure 6.4: Connection and dimensions
Throttle body
Interface Parameter
Min. Max.
Tightening torque (Bowden cable
to throttle arm)
4 Nm (35 in. lb) (suitable
for flexible cable), 1.5 mm
(0.06 in.) steel rope or sin-
gle-strand wire
—
Cable travel 65 mm (2.56 in.)
—
Actuating force 7.5 N (1.69 lbs.) 20 N (4.5 lbs)
Max. permissible actuating force
—
20 N (4.5 lbs)
Connection: Set screw M6x12 mm
Intercooler
For details see SI-PAC-005.
Effectivity: 916 i A / C24
Edition 0/Rev. 1
72–60–00
Page 7
December 01 2023
