BRP-Rotax
INSTALLATION MANUAL
SYSTEM LIMITATIONS
Operating limits Refer to latest issue of the Operators Manual (OM).
Installation
position
The oil system, fuel system and the cooling system are unsuitable for upside-down / in-
verted installation of the engine.
System Limit
Min. Max.
Static roll angle ß 40°
The oil level should be in the upper half (between the “50%” and the “Max.” mark) and
should never fall below the “Min.” mark. For the oil level measuring procedure refer to the
latest version of the respective Operators Manual (OM).

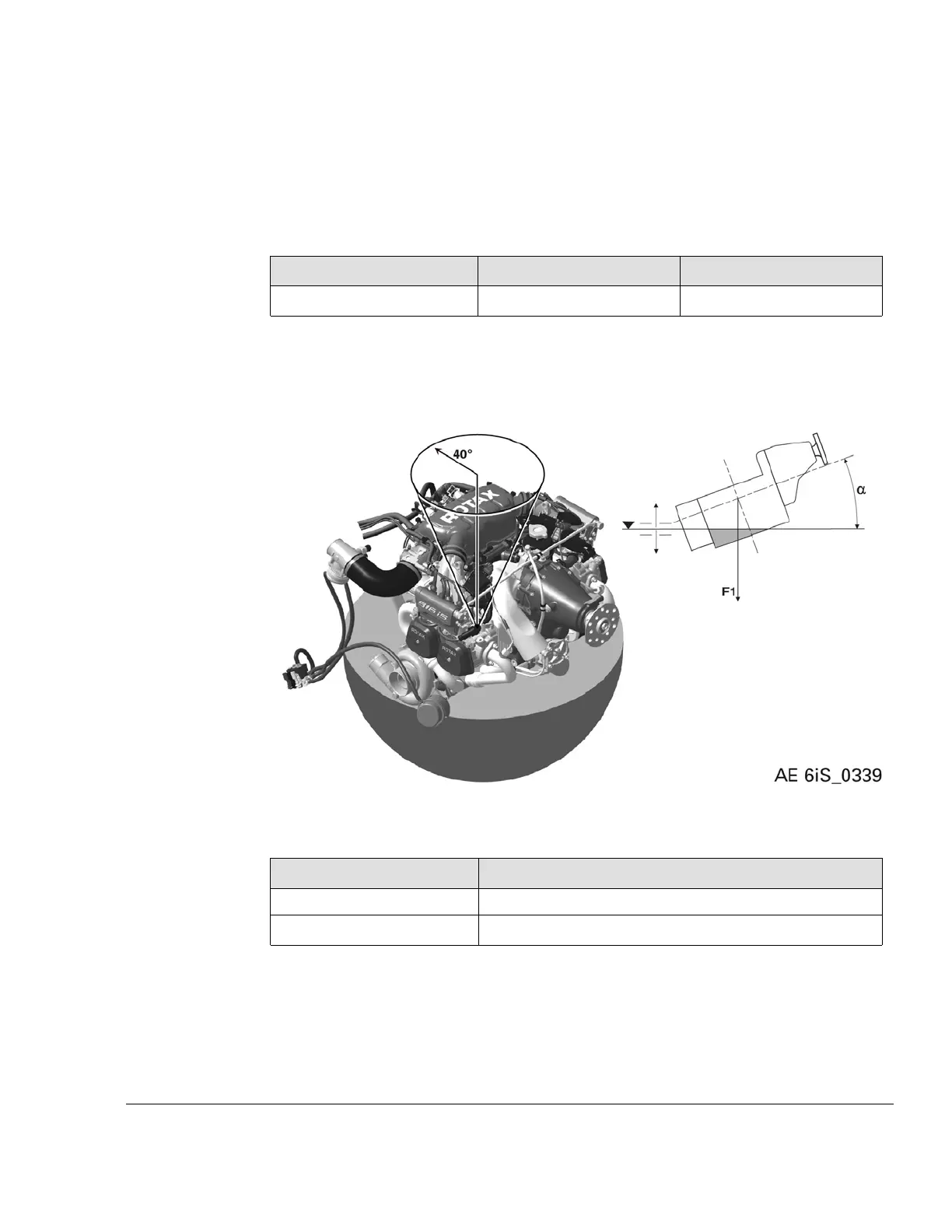

Figure 5.6: Bank angle
Angle/force
Description
ɑ
Bank or rotation
F1
Gravity
Attachment
points
For mounting the engine on the engine suspension, R2, R3, L3 and L2 of attachment
points must be used. All used screws must not be touch engine components.
Effectivity: 916 i A / C24
Edition 0/Rev. 1
72–00–00
Page 7
December 01 2023
