BRP-Rotax
INSTALLATION MANUAL
MECHANICAL INTERFACES
Propeller shaft
flange
The propeller in tractor or pusher arrangement must be fitted on the propeller flange in ac-
cordance with applicable regulations. As required utilize one of three possible pitch circle
diameters (P.C.D.) on the flange.
NOTICE
Modification of the propeller shaft is not permitted.

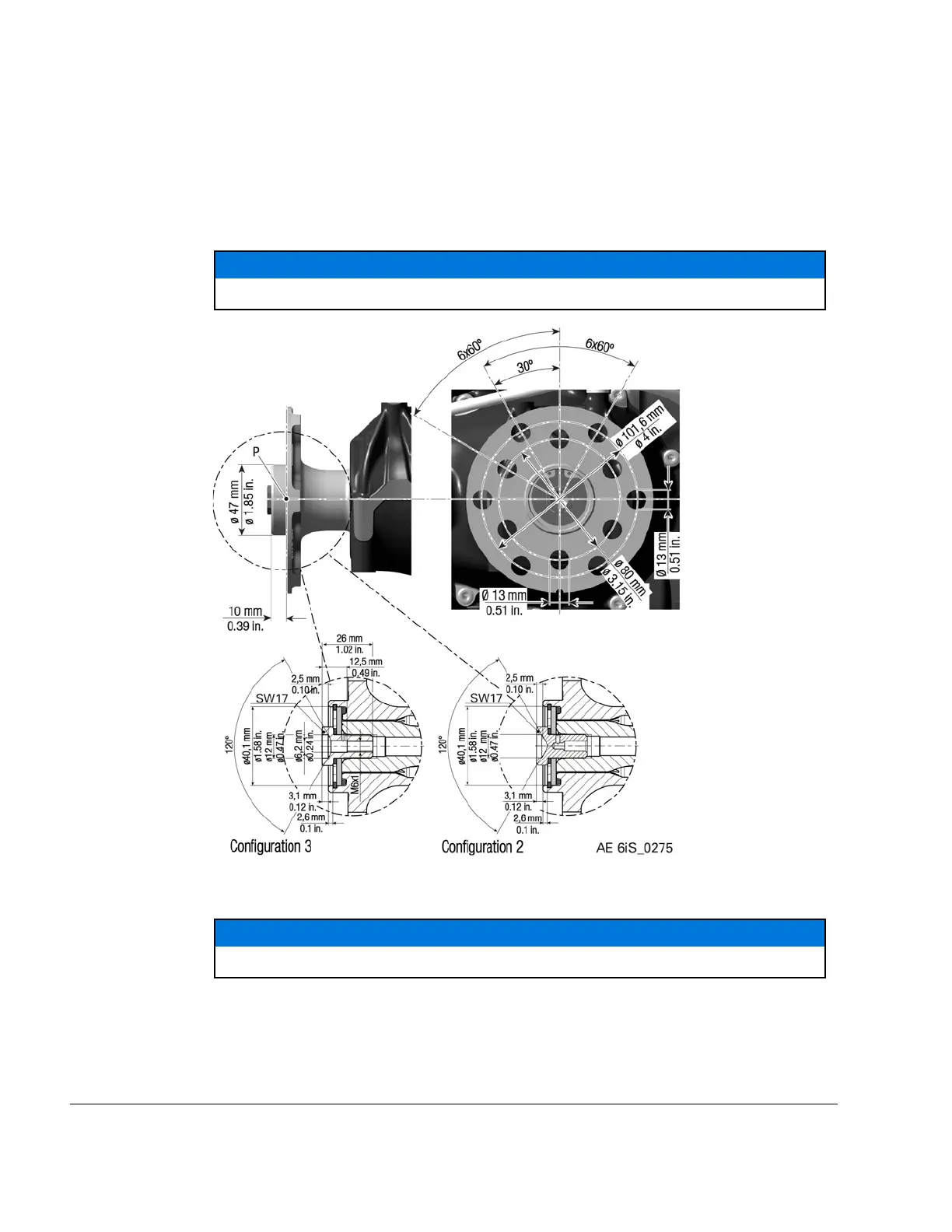

Figure 4.5: Propeller shaft flange
NOTICE
Propeller hub has to be centered on diameter 47 mm (1.85 in.).
61–00–00
Page 6
December 01 2023
Effectivity: 916 i A / C24
Edition 0/Rev. 1
