BRP ROTAX 916 i A Series Installation Manual

BRP-Rotax
INSTALLATION MANUAL
INTERFACE DESCRIPTION
INTERFACE OVERVIEW

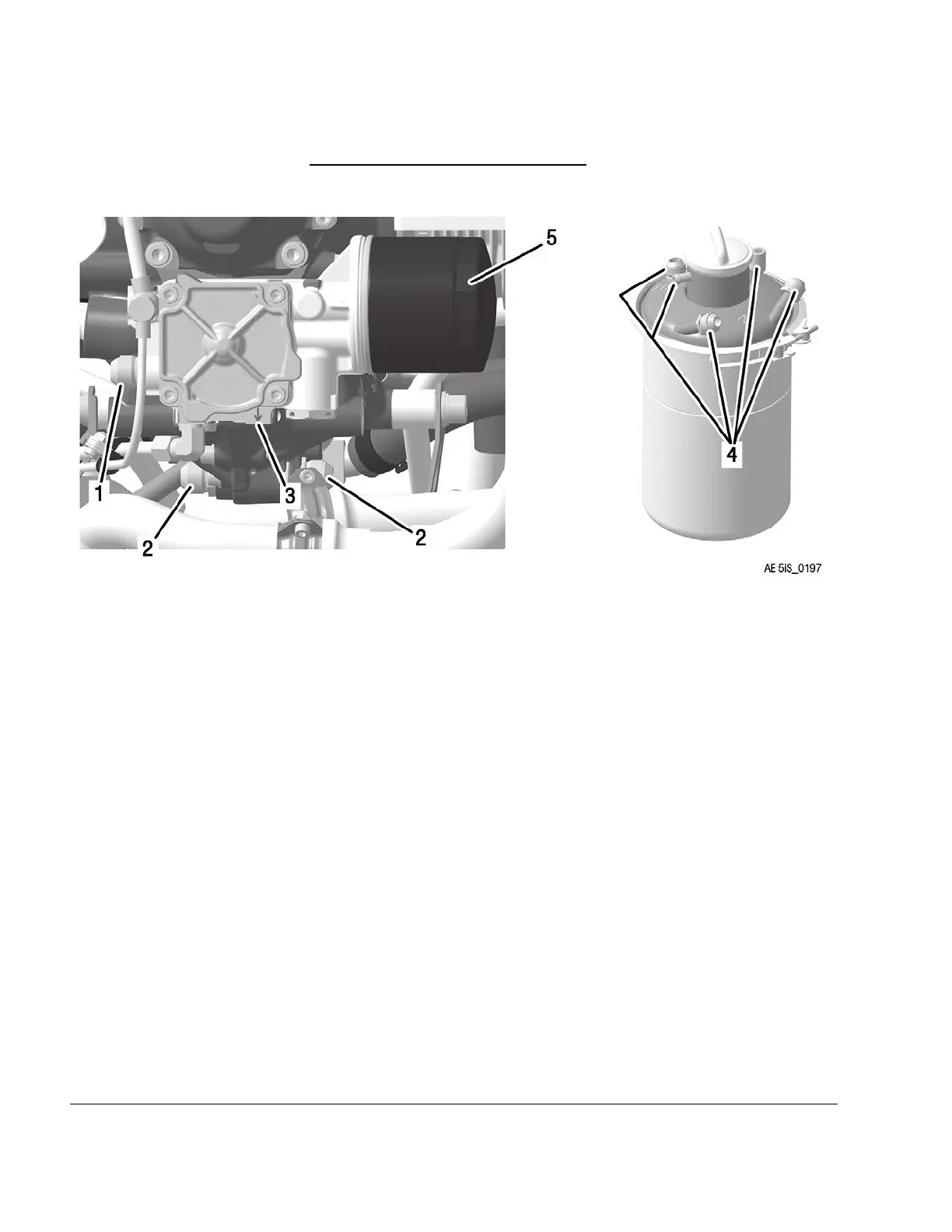

Figure 12.5: Lubrication system interfaces
1
Oil pump inlet (hydraulic
interface)
2
Oil return outlet (hydraulic
interface)
3
Oil return outlet (turbocharger)
(hydraulic interface)
4
Oil tank in- and outlets (hydraulic
interface)
5
Oil filter (hydraulic interface)
OIL TANK DIMENSIONS
Oil tank The oil tank must be mounted by using appropriate clamps.
79–00–00
Page 8
December 01 2023
Effectivity: 916 i A / C24
Edition 0/Rev. 1
