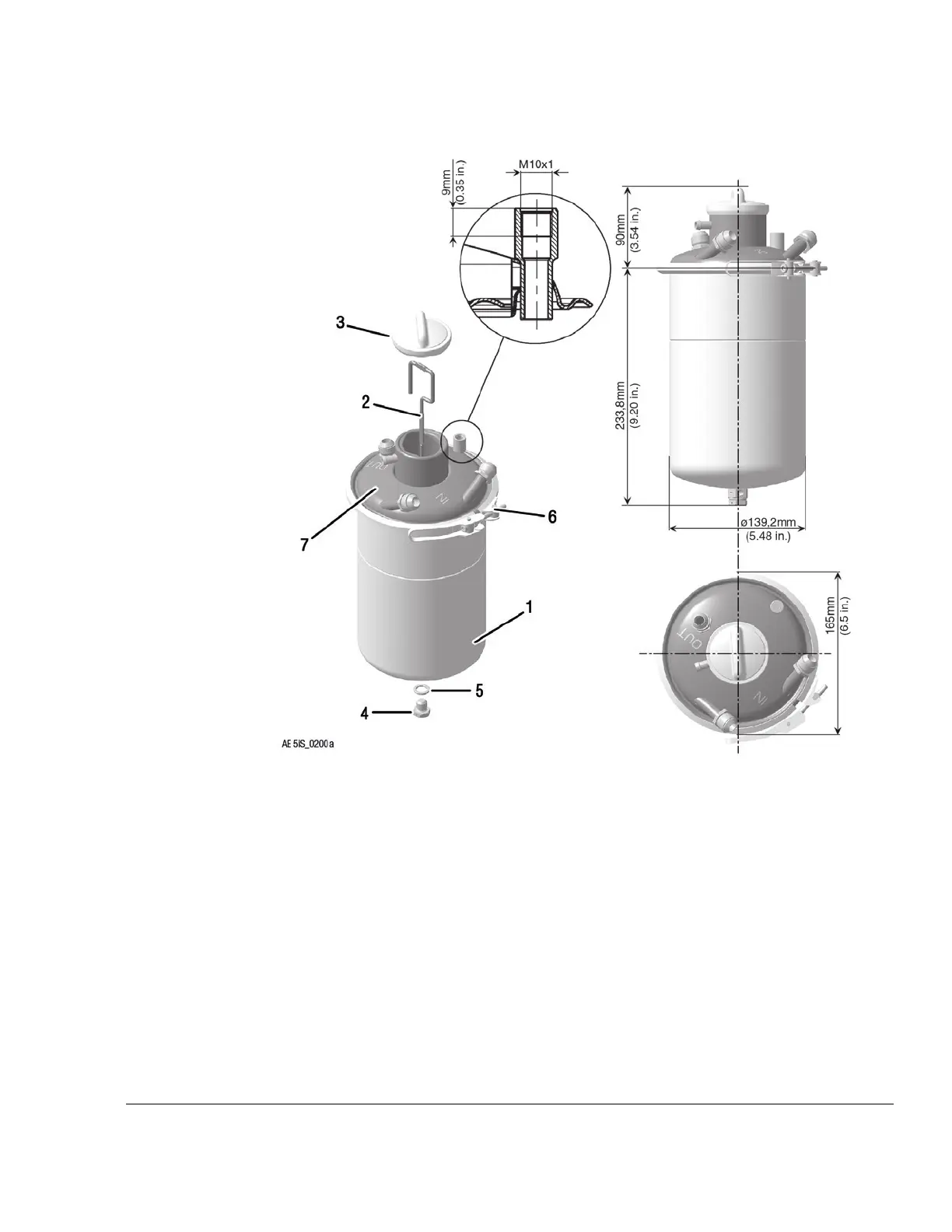

Figure 12.6: Oil tank dimensions
1 Oil tank 2
Oil dipstick
3 Oil tank cover 4
Plug screw M12x12
5
Gasket ring C12x18
6
Profile clamp 163
7
Oil tank cover assy. (metric or UNF)
