BRP-Rotax
INSTALLATION MANUAL
INTERFACE DESCRIPTION
INTERFACE OVERVIEW
916 i TYPE A

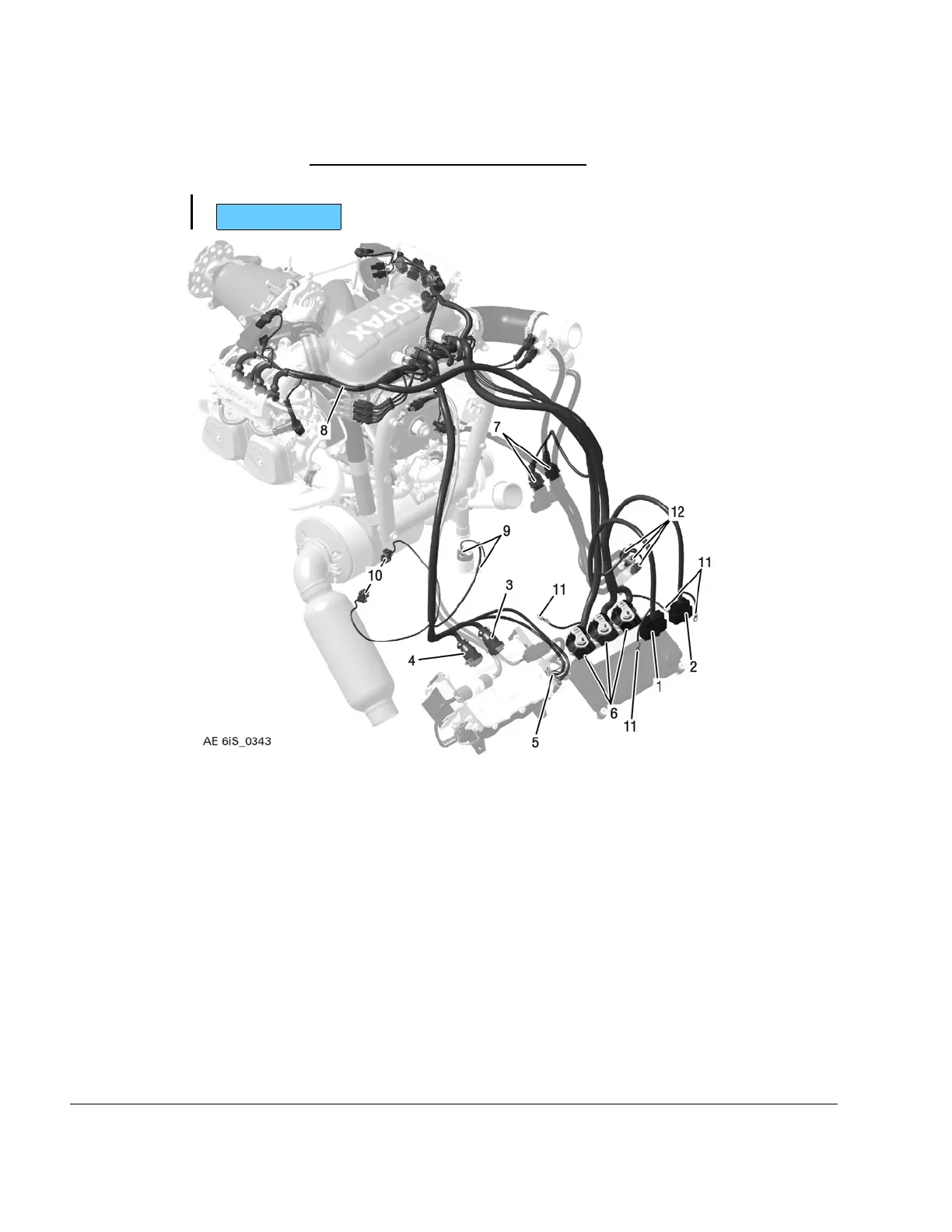

Figure 9.3: Engine Management System (EMS) Interfaces
1
Harness Interface Connector A (HIC A)
(electrical interface)
2
Harness Interface Connector B (HIC B)
(electrical interface)
3
X1 Connector (electrical interface)
4
X2 Connector (electrical interface)
5
Regulator A (electrical interface)
6
ECU (electrical, mechanical interface)
7
AAPTS (electrical, mechanical
interface)
8
Wiring harness
9
Starter relay connectors (electrical
interface)
10
Fuel pump connectors (electrical
interface)
11
Wiring harness grounding
12 PCV Connector
76–00–00
Page 6
December 01 2023
Effectivity: 916 i A / C24
Edition 0/Rev. 1
