BRP ROTAX 916 i A Series - Hydraulic Interfaces

BRP-Rotax
INSTALLATION MANUAL
HYDRAULIC INTERFACES
Water inlet elbow
Interface Parameter
Min. Max.
Cooling system pressure (relative) 1.6 bar (232 psi)
-
Cooling water temperature - 20 °C (- 4 °F) 125 °C (257 °F)
Cooling water flow (at 5800 rpm) 70 l/h (18.49 USgal/
min)
-
Slip on length 19 mm (0.75 in)

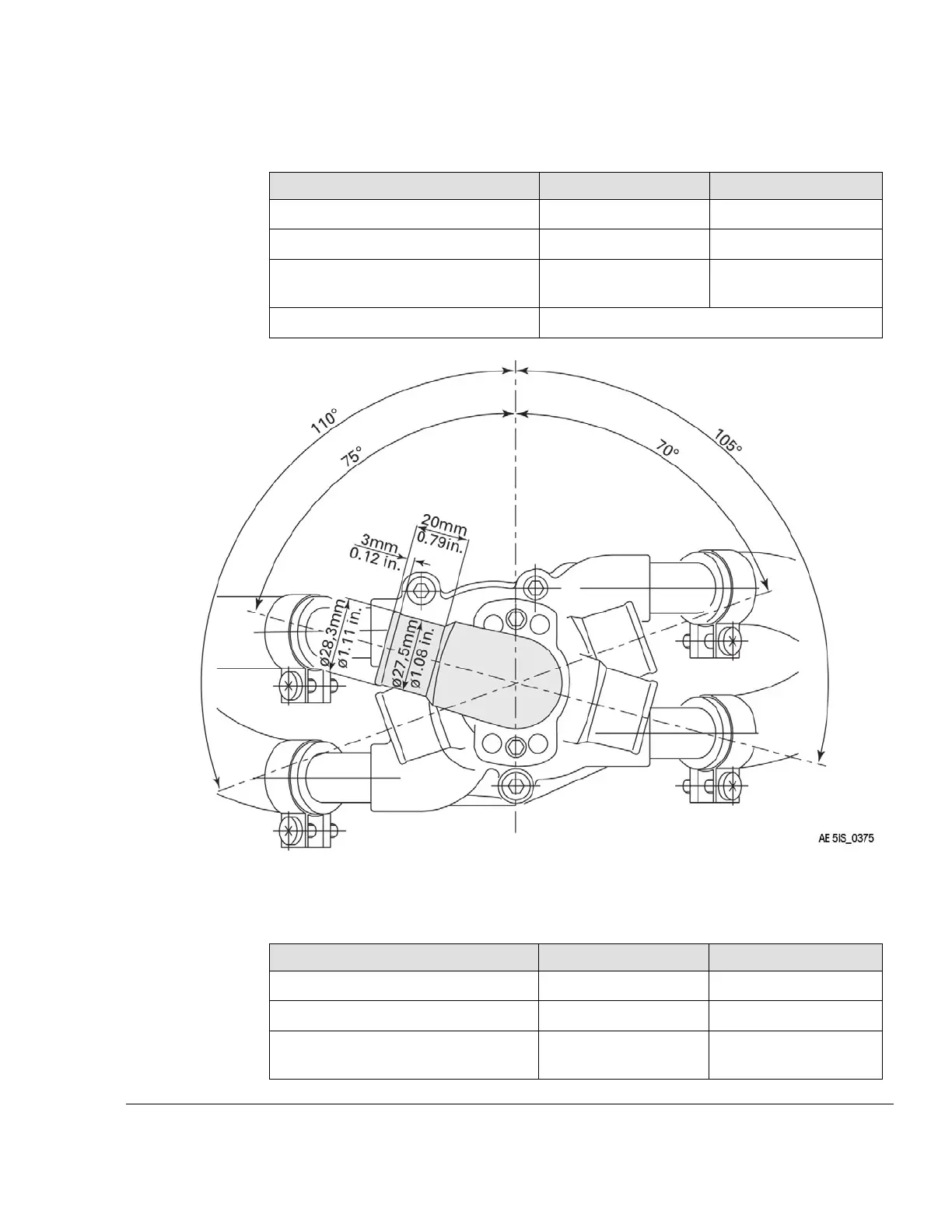

Figure 8.3: Water inlet elbow
Connection: Outer diameter 27 mm (1.07 in).
Water outlet
Interface Parameter
Min. Max.
Cooling system pressure (relative) 1.6 bar (232 psi)
-
Cooling water temperature - 20 °C (- 4 °F) 130 °C (266 °F)
Cooling water flow (at 5800 rpm) 70 l/h (18.49 USgal/
min)
-
Effectivity: 916 i A / C24
