BRP ROTAX 916 i A Series - Pneumatic Interfaces

BRP-Rotax
INSTALLATION MANUAL
PNEUMATIC INTERFACES
Airfilter
connection
See figure Connection on turbocharger
Interface Parameter
Min. Max.
Slip-on length 30 mm (1.18 in.)
-
NOTE
Use only filter elements which will not tend to restrict the flow when in contact with
water.
Turbocharger to
intercooler
Connection on turbocharger:
Interface Parameter
Min. Max.
Slip-on length 30 mm (1.18 in.)
-

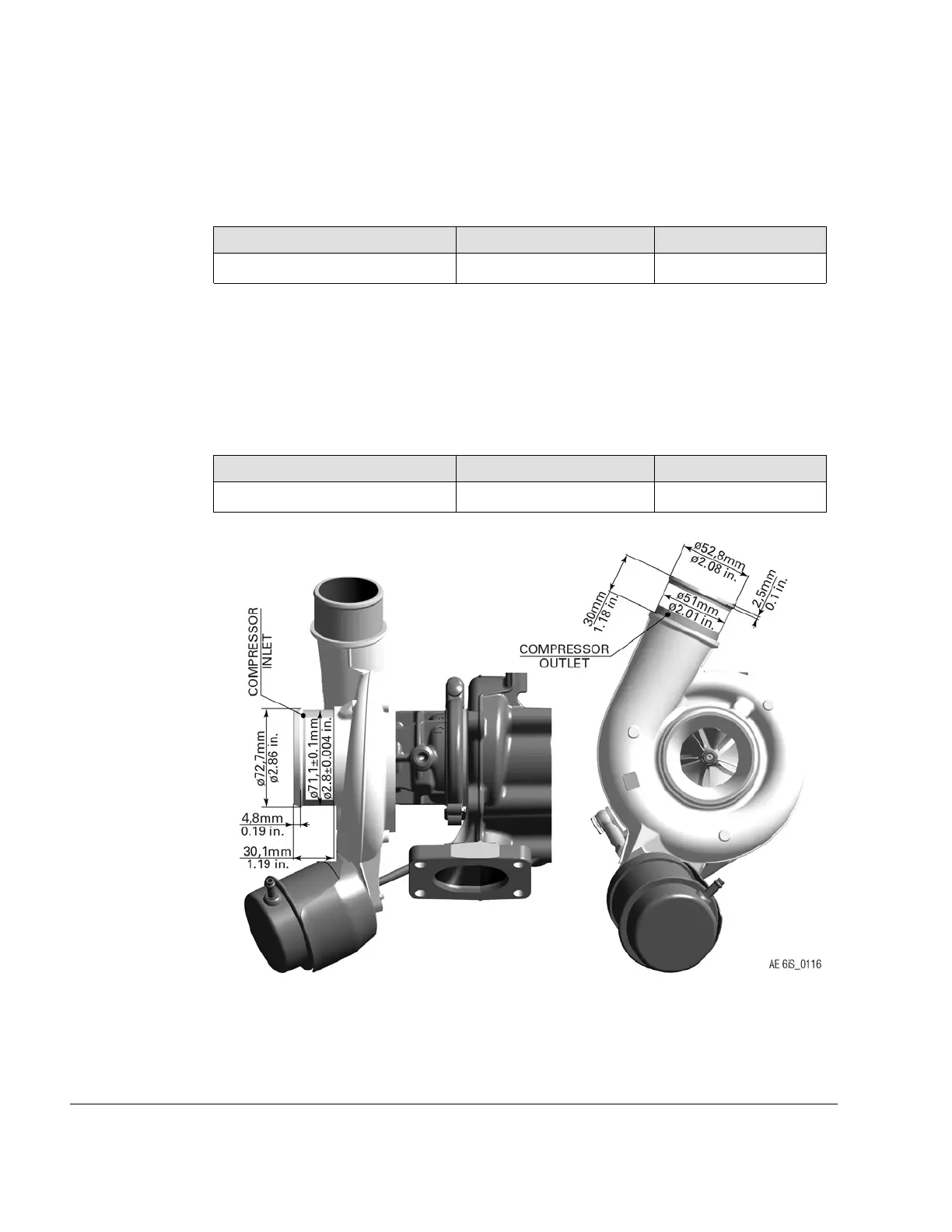

Figure 6.5: Connection on turbocharger
72–60–00
Page 8
December 01 2023
Effectivity: 916 i A / C24
Edition 0/Rev. 1
