BRP-Rotax
INSTALLATION MANUAL
SYSTEM DESCRIPTION
For a detailed System description refer to the latest issue of the Operators Manual (OM).
SYSTEM LIMITATIONS
Operating limits Refer to latest issue of the Operators Manual (OM).
Moment of inertia
System Limit
Min. Max.
Moment of inertia on
propeller
1500 kg cm
2
(3.559 lb ft
2
) 9000 kg cm
2
(21.357 lb ft
2
)
Out of balance Dynamic balancing of the propeller as specified by the propeller manufacturer must be
carried out.
Propeller shaft
System Limit
Min. Max.

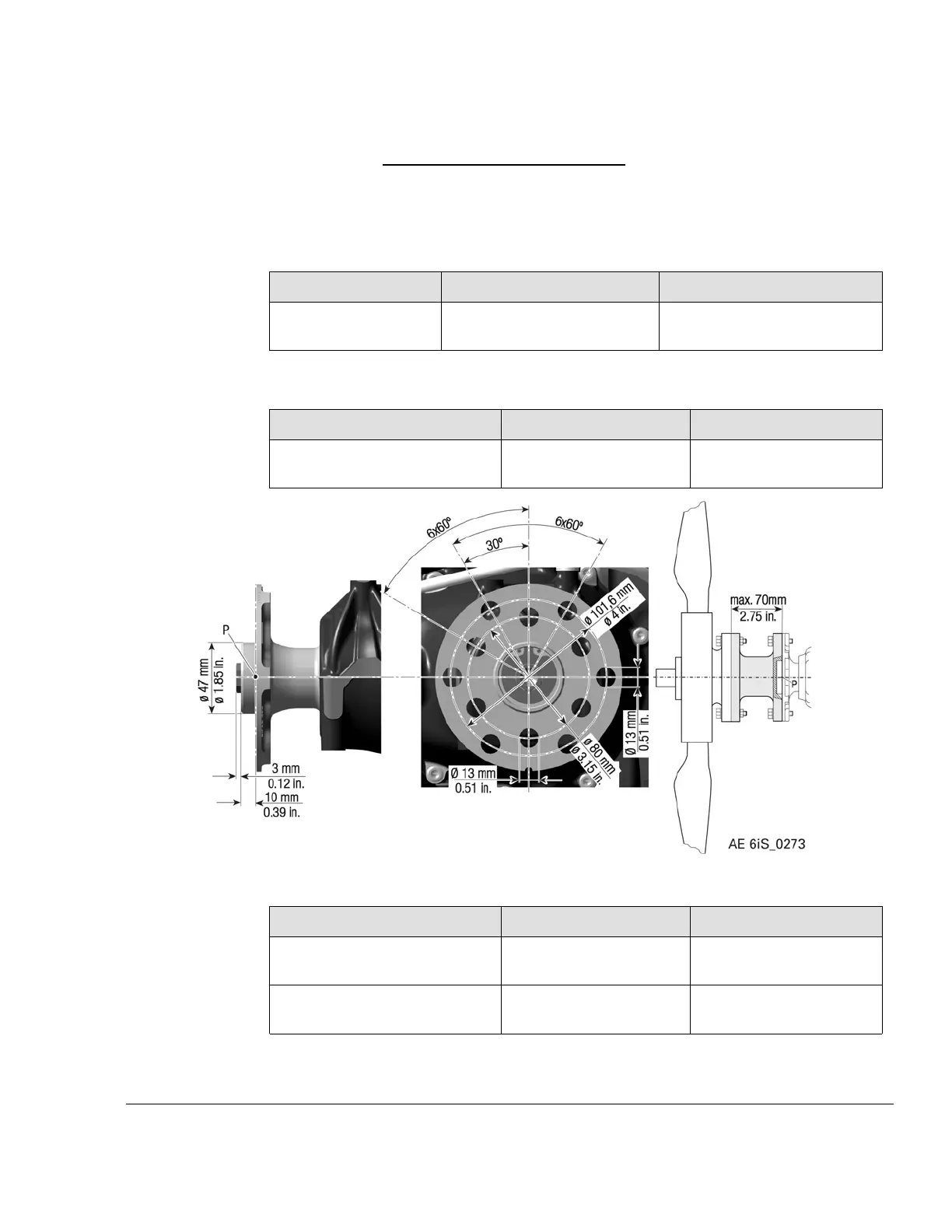

Extension of the propeller shaft
-
Maximum 70 mm
(2.75 in.)
Figure 4.2
Hydraulic gover-
nor flange/drive/
oil supply
System Limit
Min. Max.
Power consumption of
governor
-
600 W
Operating pressure of governor
-
10 bar (145 psi) peak
pressure: 30 bar (435 psi)
Effectivity: 916 i A / C24
Edition 0/Rev. 1
61–00–00
Page 3
December 01 2023
