BRP ROTAX 916 i A Series Installation Manual

BRP-Rotax
INSTALLATION MANUAL
INTERFACE DESCRIPTION
INTERFACE OVERVIEW

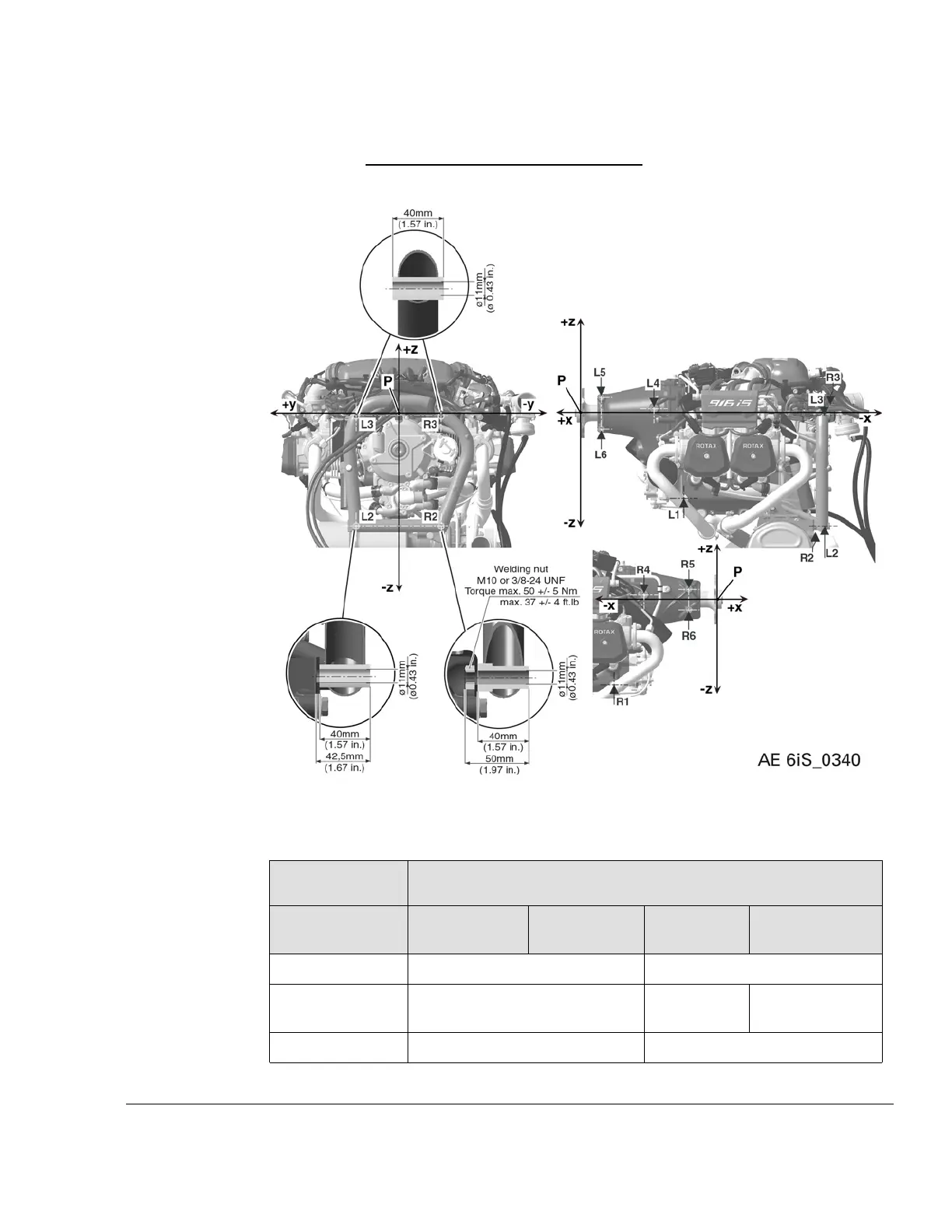

Figure 5.8: Attachment points
MECHANICAL INTERFACES
Attachment
points
Interface
Parameter
Value
Attachment
points
L1 R1 L2 R2
x-axis (in) - 253.5 mm (-99.8 in.) - 615 mm (-24.21 in.)
y-axis (in) -71 mm (-2.8 in.)
105 mm
(4.13 in.)
-105 mm (-4.13
in.)
z-axis (in) -211 mm (-8.31 in.) –277 mm (-10.91 in.)
Effectivity: 916 i A / C24
Edition 0/Rev. 1
72–00–00
Page 9
December 01 2023
