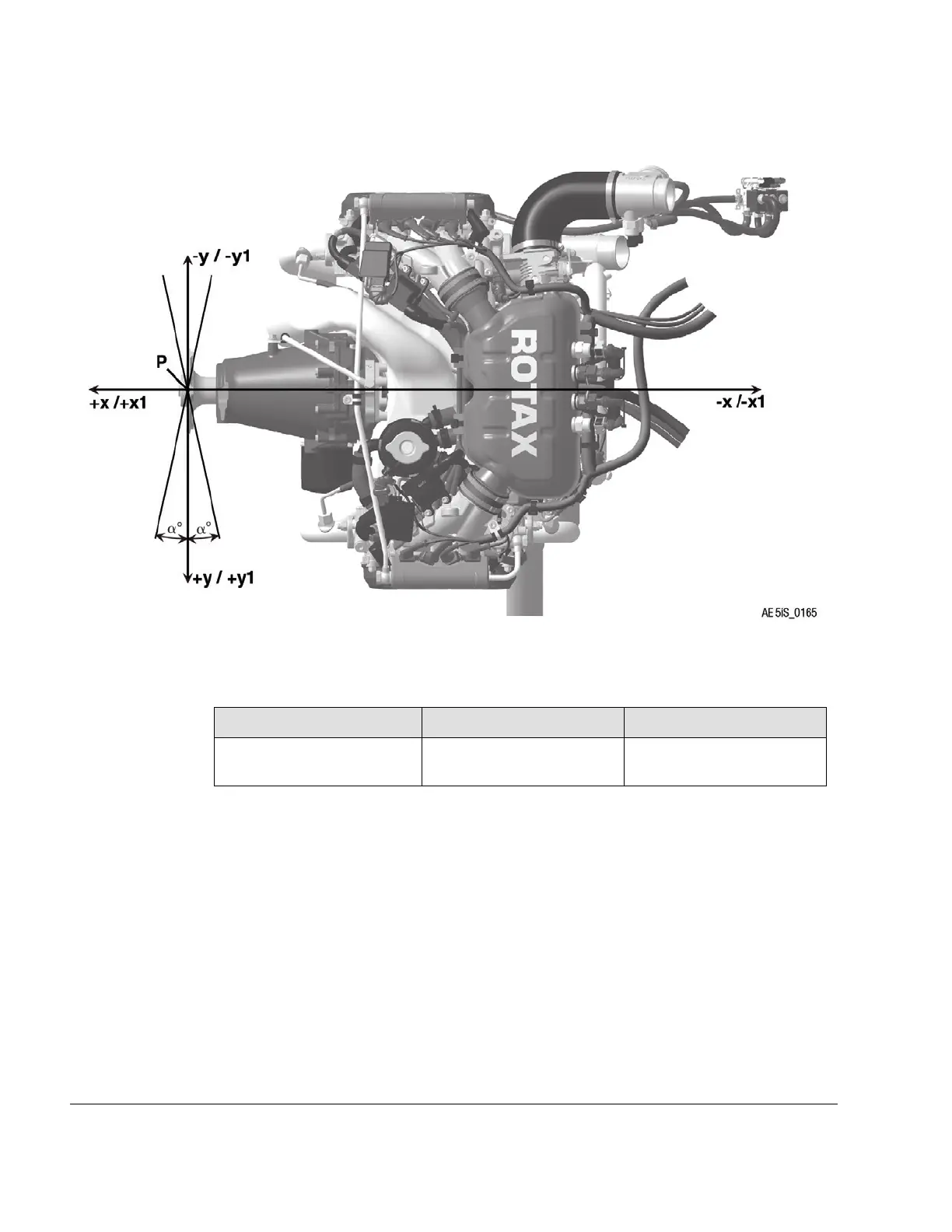

Figure 5.7: Propeller and vertical axis TYPICAL
Propeller axis The y1-axis must be perpendicular to the longitudinal axis of the aircraft.
System Limit
Min. Max.
Permissible deviation from
perpendicular (α)
- 10° + 10°
72–00–00
Page 8
December 01 2023
Effectivity: 916 i A / C24
Edition 0/Rev. 1
