LANE SELECT SWITCHES
Lane Select
Switch A (-S4)
Interface Parameter
Value
Switch type Toggle (normally open)
Nominal voltage 28 V
Nominal current 7.5 A
Number of poles 1-pole
Lane Select
Switch B (-S5)
Interface Parameter
Value
Switch type Toggle (normally open)
Nominal voltage 28 V
Nominal current 7.5 A
Number of poles 1-pole

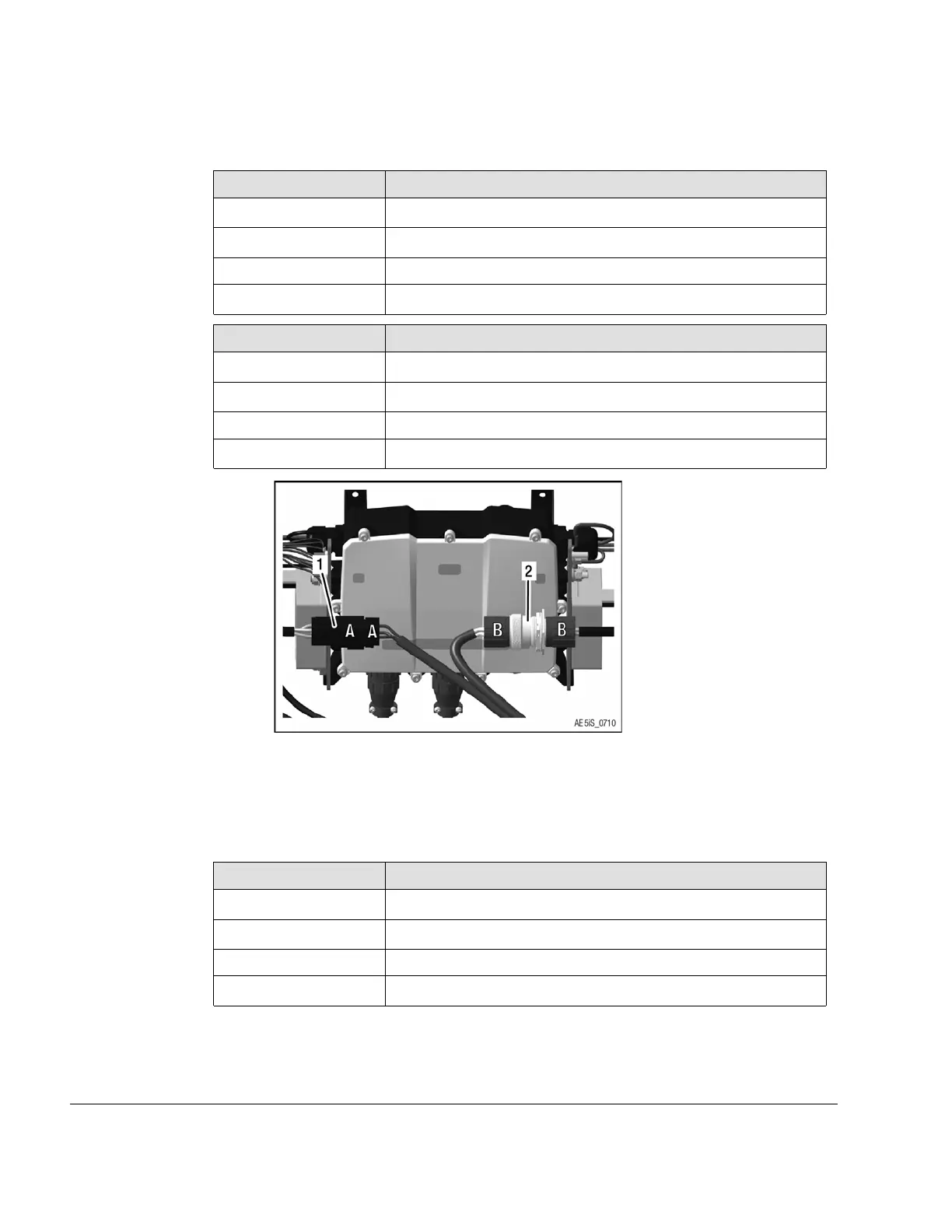

Figure 9.19: Fusebox
1
Connector Regulator A
2
Amphenol connector Regulator B
START SWITCH
Start Switch (-S6)
Interface Parameter
Value
Switch type Button (normally open, non-locking)
Nominal voltage 28 V
Nominal current 5 A
Number of poles 1–pole
76–00–00
Page 20
December 01 2023
Effectivity: 916 i A / C24
Edition 0/Rev. 1
