INSTALLATION MANUAL
INTERFACE DESCRIPTION – 916 I TYPE C24
INTERFACE OVERVIEW.– 916 I TYPE C24
916 i TYPE C 24

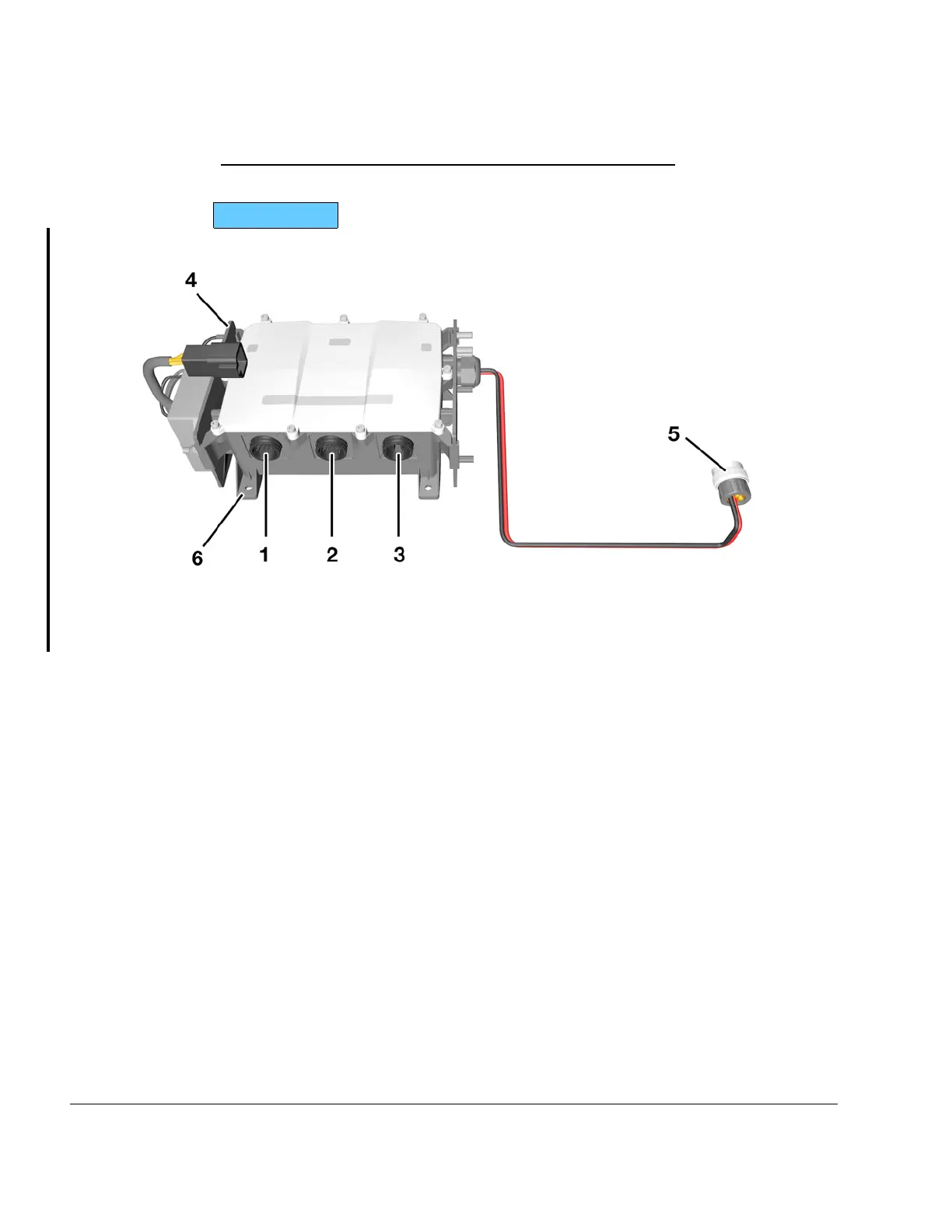

Figure 3.12: Fusebox connections
1
X1 Connector (electrical interface)
2
X2 Connector (electrical interface)
3
X3 Connector (electrical. interface)
4
Regulator Plate A (electrical interface)
5
Connector to 28 V AC-DC Converter
assy.
6
Mounting points
