INSTALLATION MANUAL

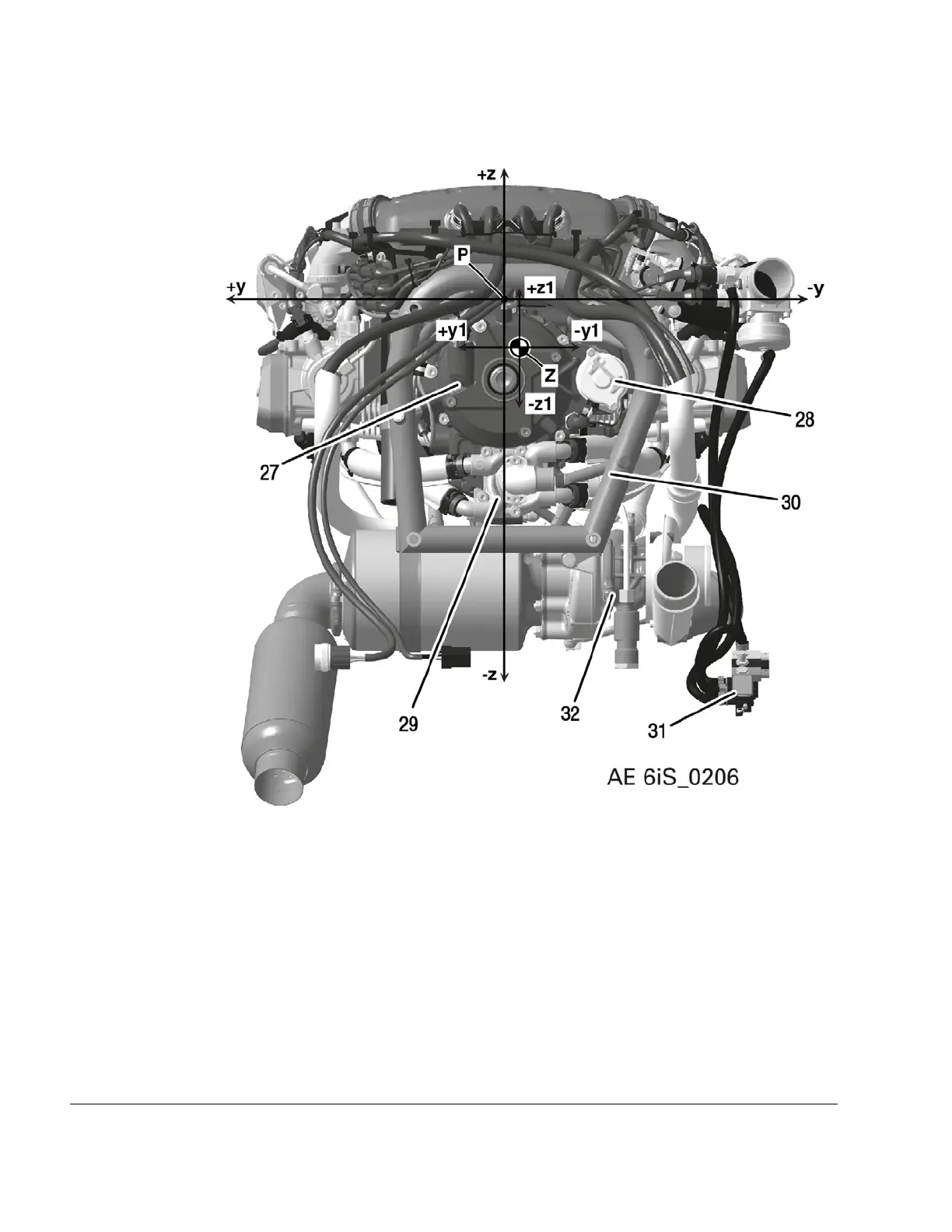

Figure 5.5: Rear view
27
Ignition housing
28 Electric starter
29
Water pump housing
30
Engine suspension frame (ring mount)
31
Solenoid Valve (PCV)
32
Turbocharger assy.
72–00–00
Page 6
December 01 2023
Effectivity: 916 i A / C24
Edition 0/Rev. 1
