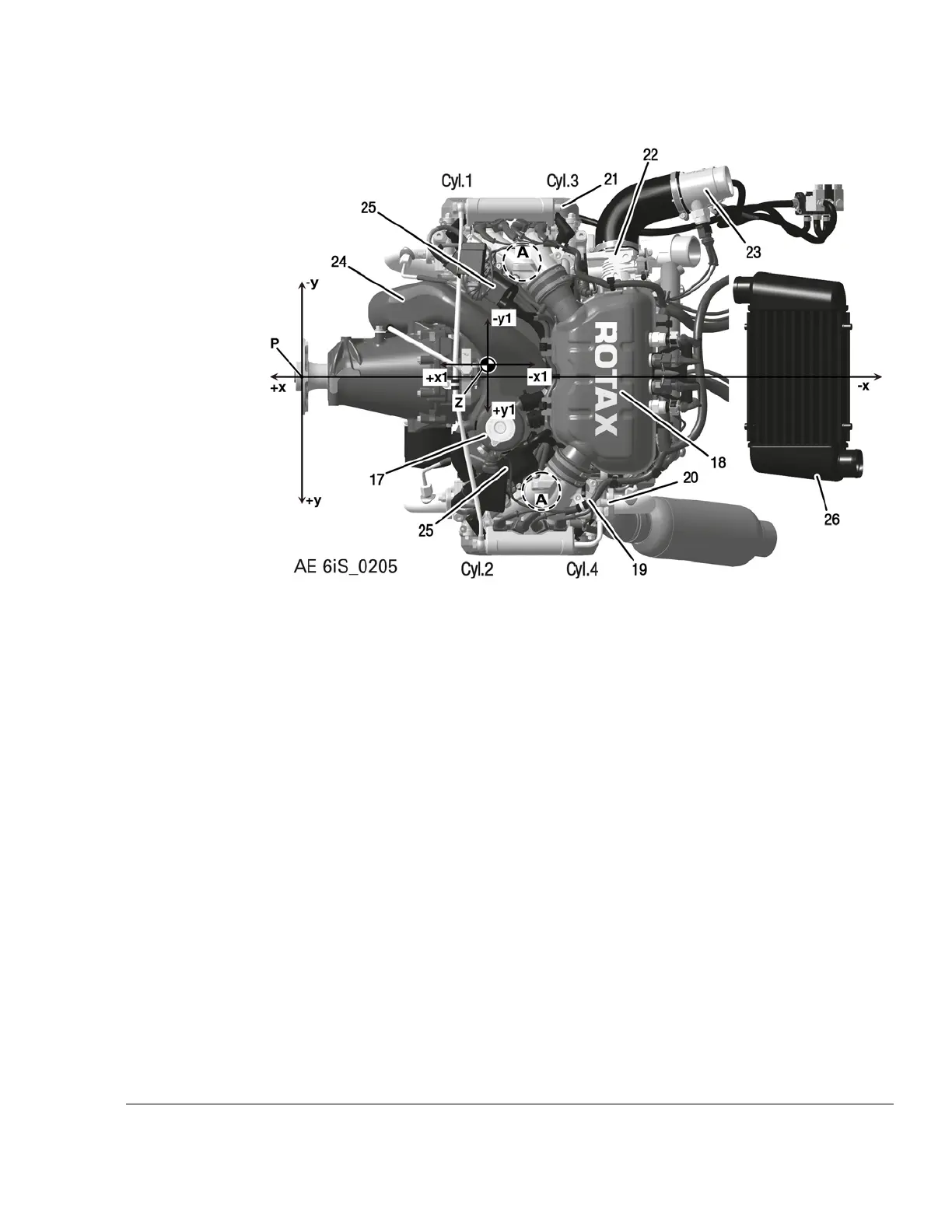

Figure 5.4: Top view
17
Expansion tank assy.
18 Airbox
19
Fuel pressure regulator
20 Connection for fuel return line
21 Connection for fuel feed line 22
Throttle body
23
Pop off valve
24
Cooling air baffle
25
Dual ignition coils
26 Intercooler
A
Attachment points (for engine lifting)
Effectivity: 916 i A / C24
