BRP ROTAX 916 i A Series Installation Manual

BRP-Rotax
INSTALLATION MANUAL

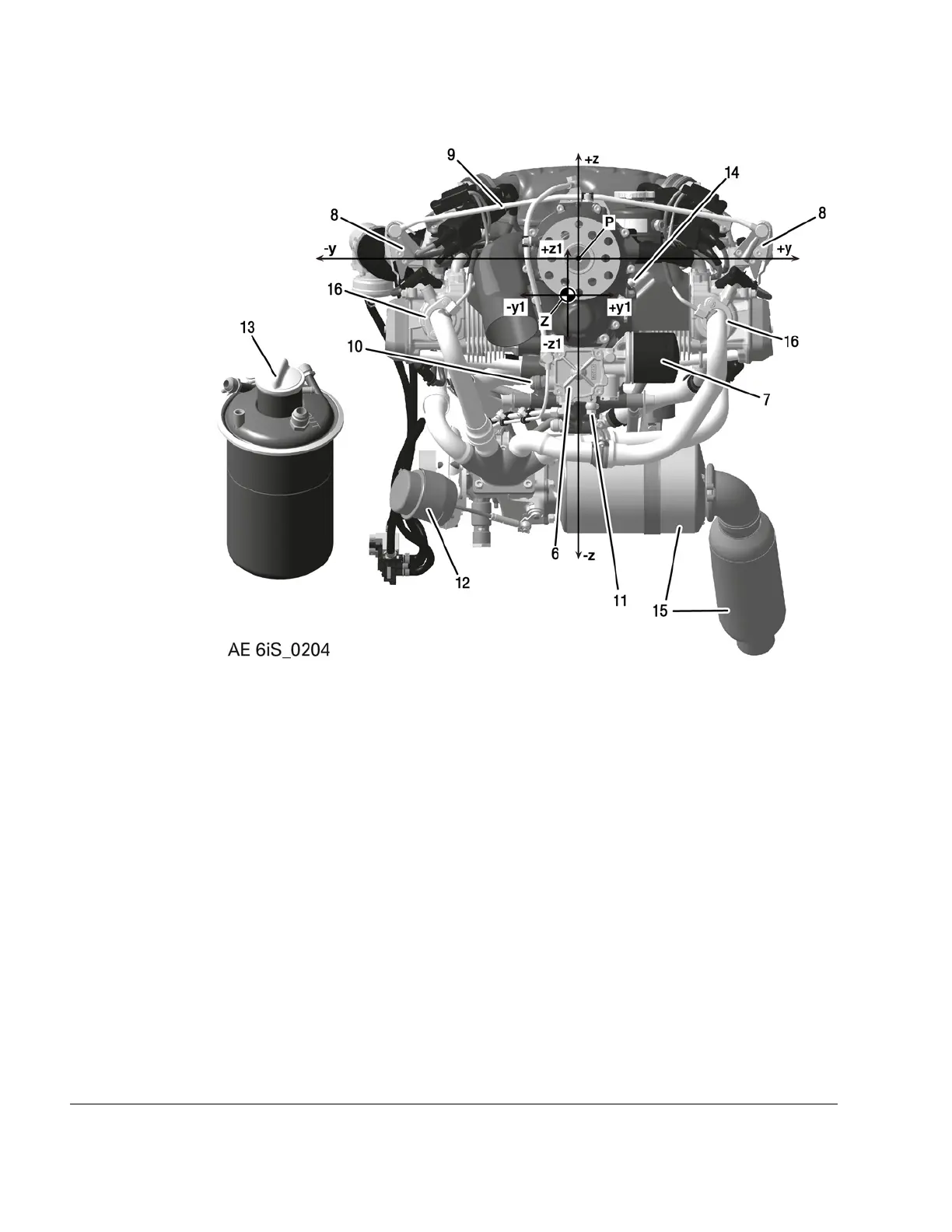

Figure 5.3: Engine Front view
6
Oil pump housing
7 Oil filter
8
Fuel rail left/right
9
Fuel line assy.
10 Connection for oil feed line 11 Connection for turbo oil return line to tank
12
Wastegate actuator assy.
13
Oil tank (metric or UNF)
14
Crankshaft locking screw position
15
Muffler assy.
16
Exhaust flange
72–00–00
Page 4
December 01 2023
Effectivity: 916 i A / C24
Edition 0/Rev. 1
