BRP-Rotax
INSTALLATION MANUAL
Sensors Ambient Air Pressure and Temperature Sensors (AAPTS 1, 2)

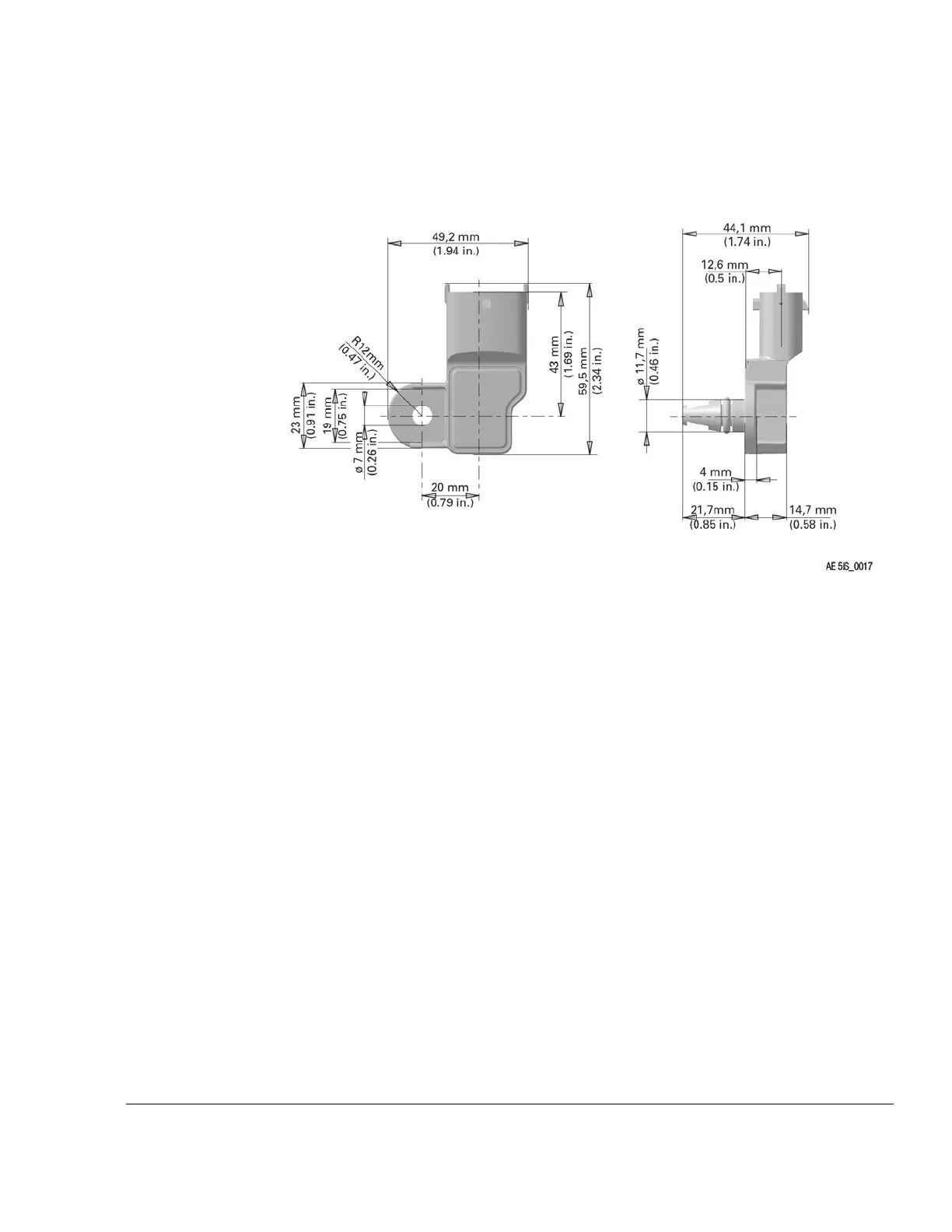

Figure 9.14: AAPTS – mounting points
Maximum diameter of fastener in the interior of the mounting hole: 6 mm (0.24 in). Only
mount sensor with a washer (Ø 10 mm (0.39 in) or with an adequate fastener head diame-
ter. The maximum permissible pressure at the mounting flange may not exceed 20 N/mm
2
(0.0029 psi).
Effectivity: 916 i A / C24
Edition 0/Rev. 1
76–00–00
Page 15
December 01 2023
