BRP ROTAX 916 i A Series - Page 155

BRP-Rotax
INSTALLATION MANUAL

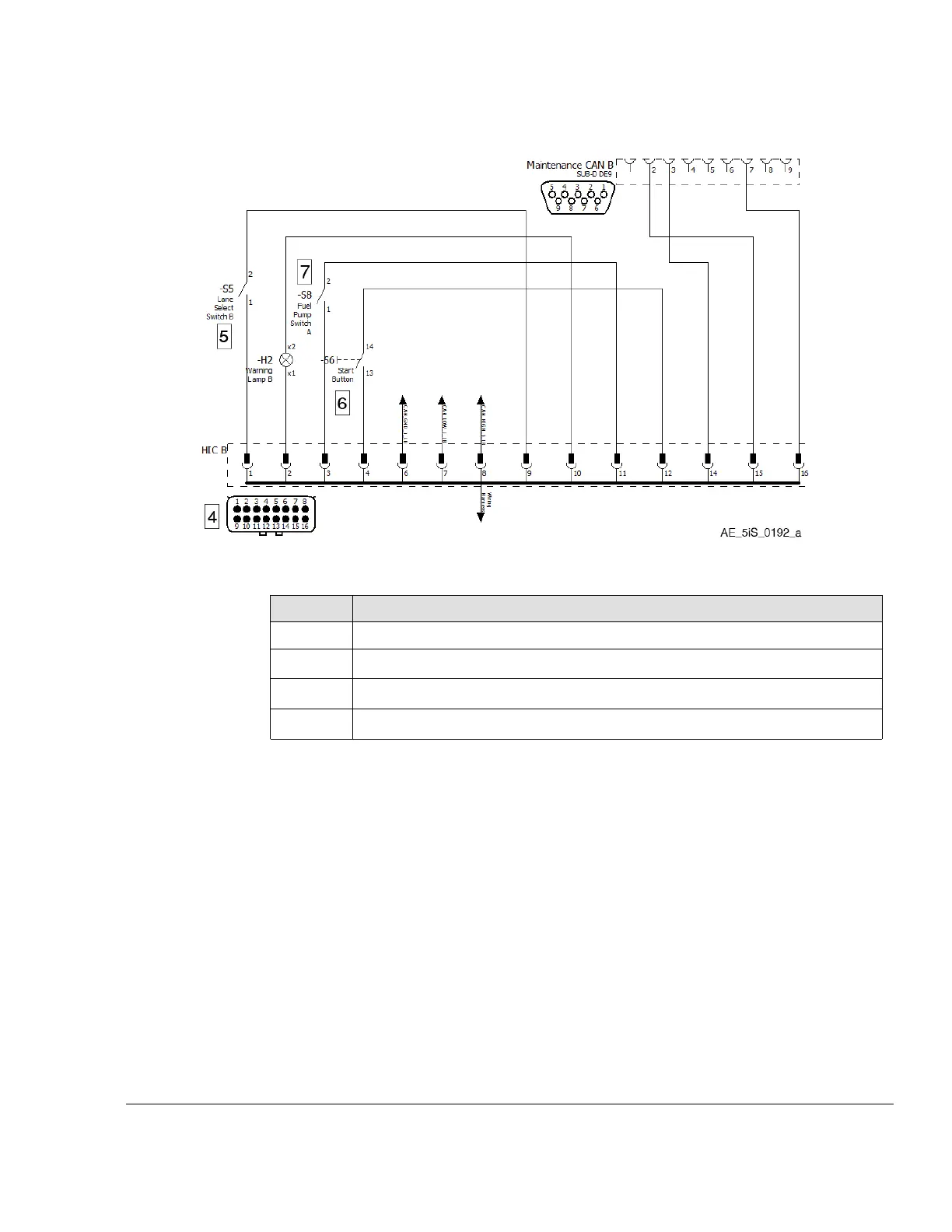

Figure 9.16: Harness Interface Connector B-Schematic
Part Function
4
Harness Interface Connector B
5
Lane Select Switch B (-S5)
6
Start Switch (-S6)
7
Fuel Pump Switch A (-S8)
Effectivity: 916 i A / C24
Edition 0/Rev. 1
76–00–00
Page 17
December 01 2023
