BRP ROTAX 916 i A Series - Page 172

BRP-Rotax
INSTALLATION MANUAL
6
Display CAN A
7
Maintenance CAN A
916 i TYPE A

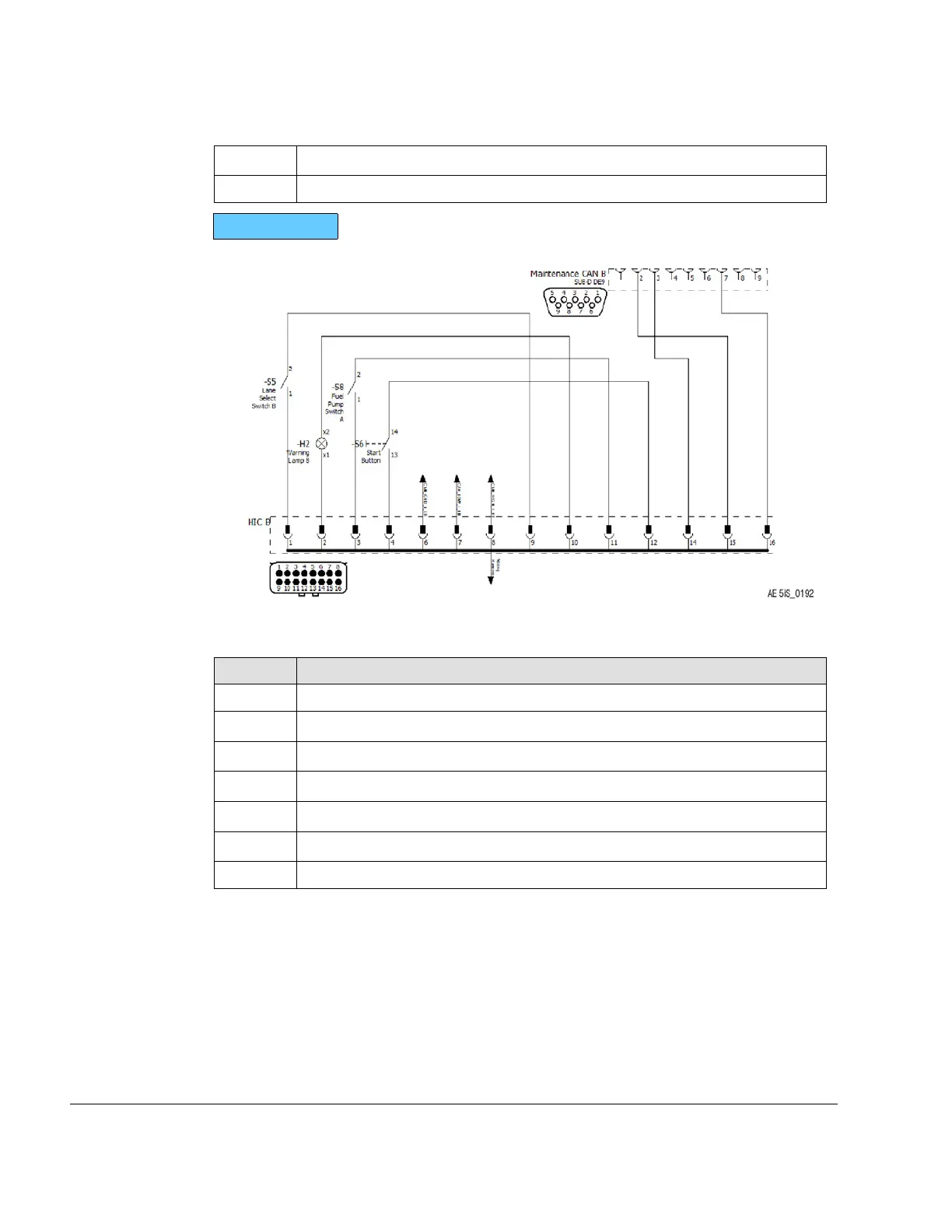

Figure 10.10: Harness Interface Connector B – Schematic
Part Function
8 Harness Interface Connector B
9 Warning Lamp B (-H2)
10
Warning Lamp B (LED) (-H2 V2)
11
Resistor 1.5 kΩ (-F8)
12
Resistor 1 kΩ (-F9)
13
Display CAN B
14 Maintenance CAN B
77–00–00
Page 14
December 01 2023
Effectivity: 916 i A / C24
Edition 0/Rev. 1
