BRP-Rotax
INSTALLATION MANUAL
Grounding

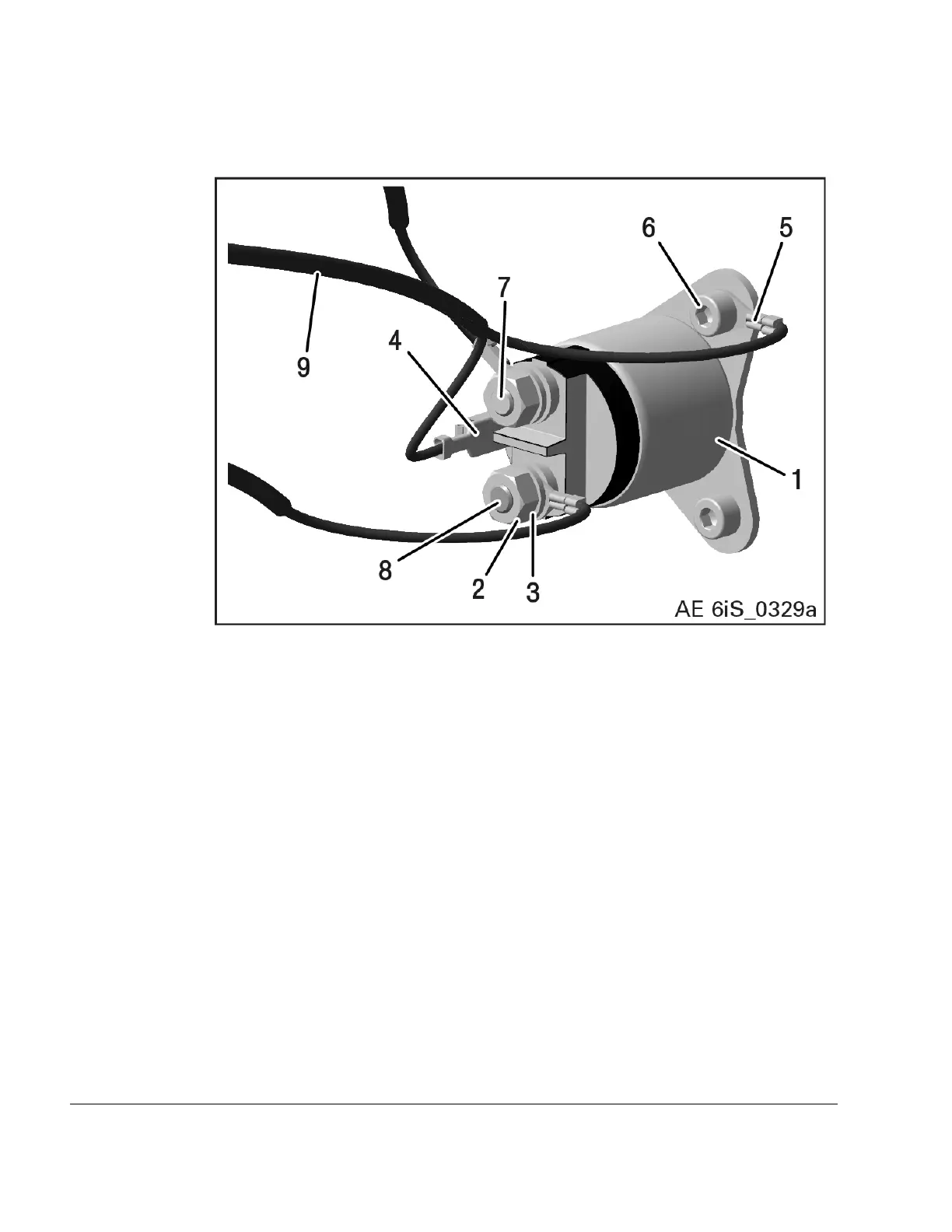

Figure 13.6: Starter relay
1
Starter relay
2 Hex. nut M6
3 Washer 6.4 4 Terminal S
5 Ground 6 Bolt/screw
7 Terminal B 8 Terminal M
9
Wiring harness (Engine)
80–00–00
Page 10
December 01 2023
Effectivity: 916 i A / C24
Edition 0/Rev. 1
