BRP-Rotax
INSTALLATION MANUAL
916 i TYPE C 24

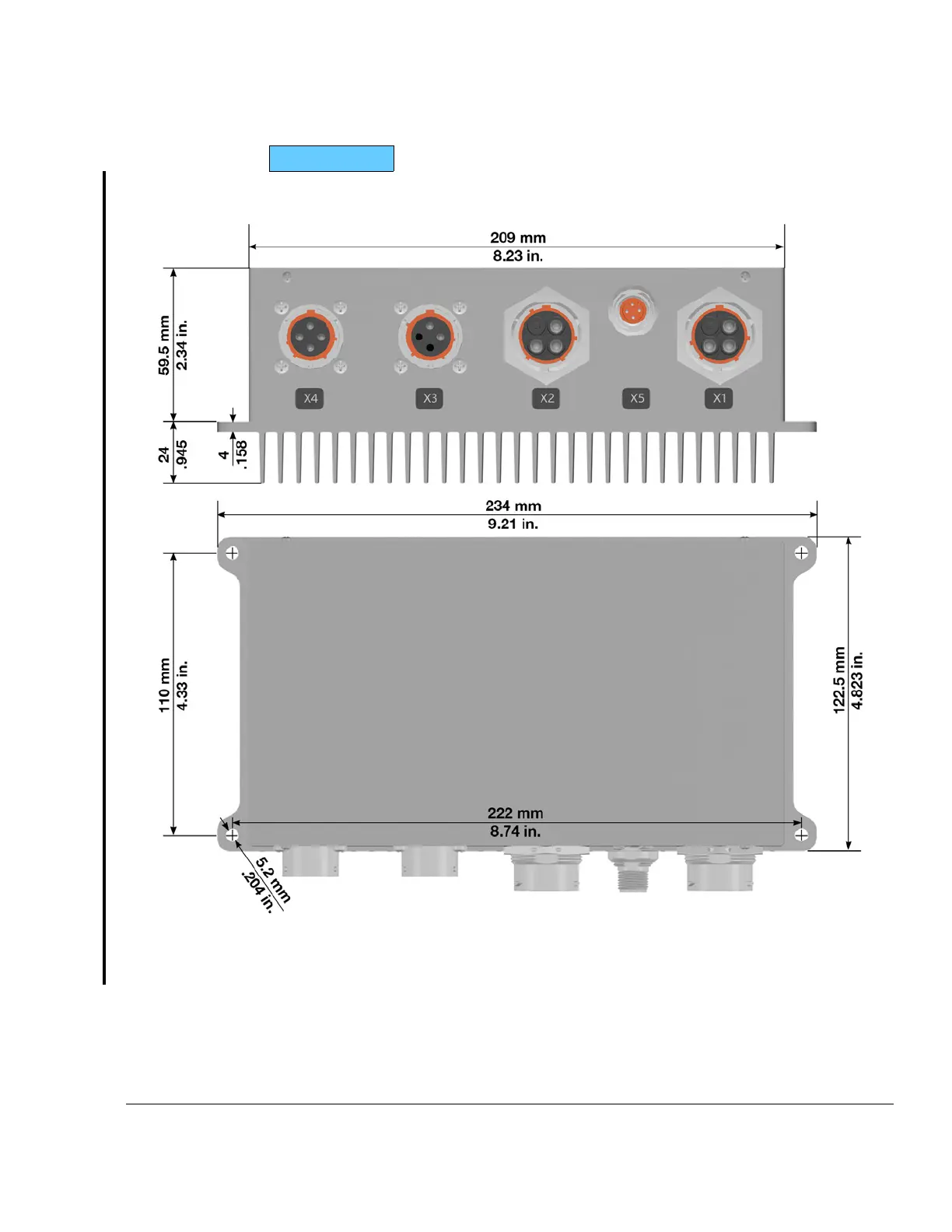

Figure 3.18: 28 V Converter: Connections and dimensions
NOTE
28 V AC-DC converter need to be installed with connector facing down.
Effectivity: 916 i A / C24
Edition 0/Rev. 1
24–00–00
Page 19
December 01 2023
