m WARNING
The hex. screws M10x60 on the attachment points R2 and L2 are only used for
transport securing but must never be utilized for engine suspension. See inter-
face overview. Therefore, use the ROTAX engine suspension frame and the 4
stated attachment points R2, L2, R3, L3.

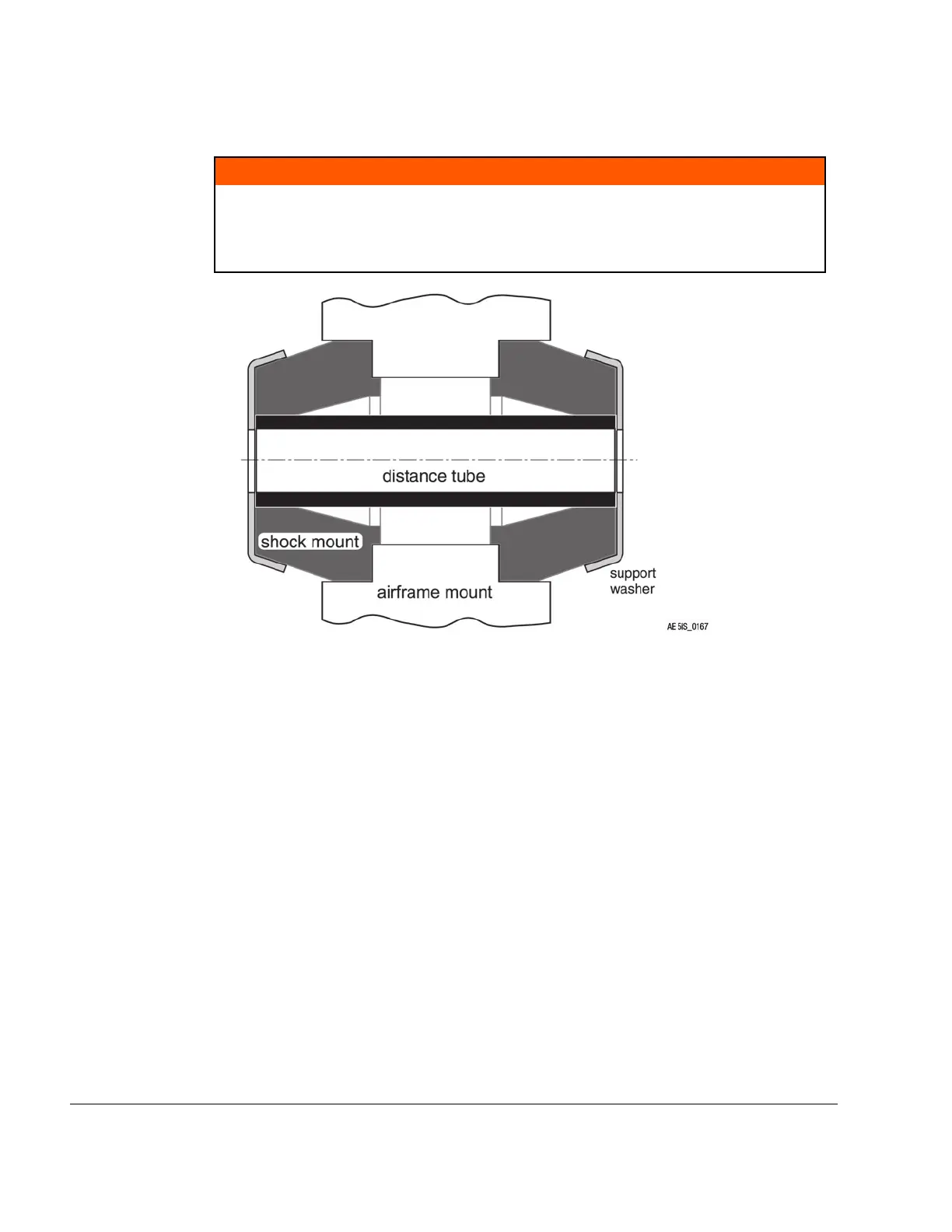

Figure 5.9: Damping element engine suspension
Standard aircraft industry damping elements (e.g. Lord) are suitable and need to be
choosen according to the aircraft specific design requirements. Check with the relevant
equipment manufacturer.
The vibration and acoustic insulation factor depends on the airframe.
