2-84 2007 Buell Lightning: Chassis
HOME

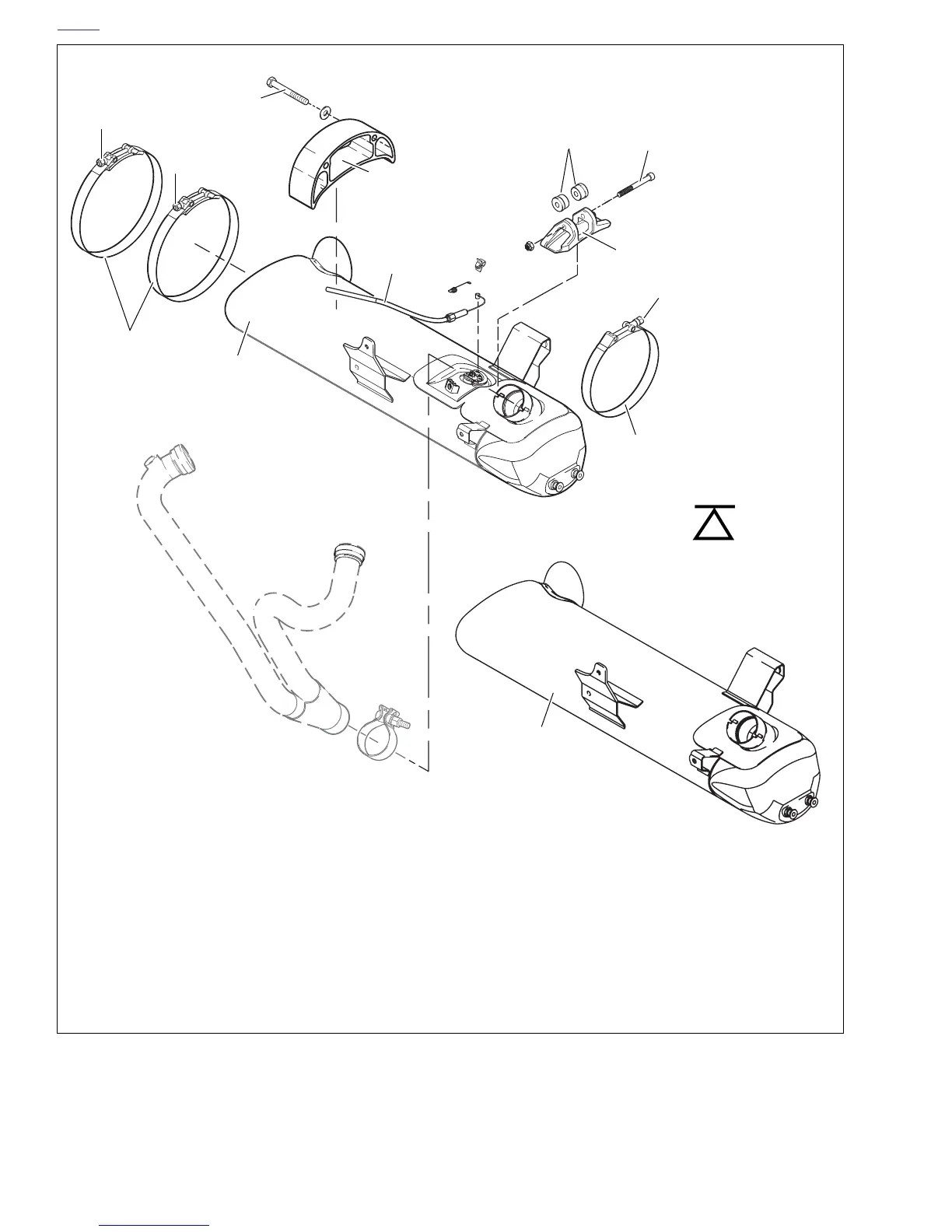

Figure 2-114. Muffler Assembly
b1260x1x
1. Rear muffler strap fastener (2)
2. Rear muffler strap (2)
3. Interactive muffler (XB12S, XB12Scg, XB12Ss)
4. Front muffler strap
5. Front muffler strap fastener
6. Front muffler mount
7. Front muffler mount fastener
8. Front muffler mount bushings
9. Interactive exhaust cable
10. Rear muffler bracket
11. Rear muffler bracket fasteners (2)
2
6
11
*Jacking point symbol shown
on both sides of muffler.
*
*
5
3
9
4
1
7
8
1
10
XB12S, XB12Scg, XB12Ss
XB9SX
*
*
*
3
