3-10 2007 Buell Lightning: Engine
HOME
12. Disconnect and remove air scoops, right and left sides.
See 2.39 AIR SCOOPS.
13. Remove idler pulley . See 6.6 DRIVE BELT SYSTEM.
NOTE
See 7.6 INTERACTIVE EXHAUST SYSTEM for specific
details on removal of interactive components.
14. See Figure 3-3. Remove muffler: see 2.32 EXHAUST
SYSTEM.

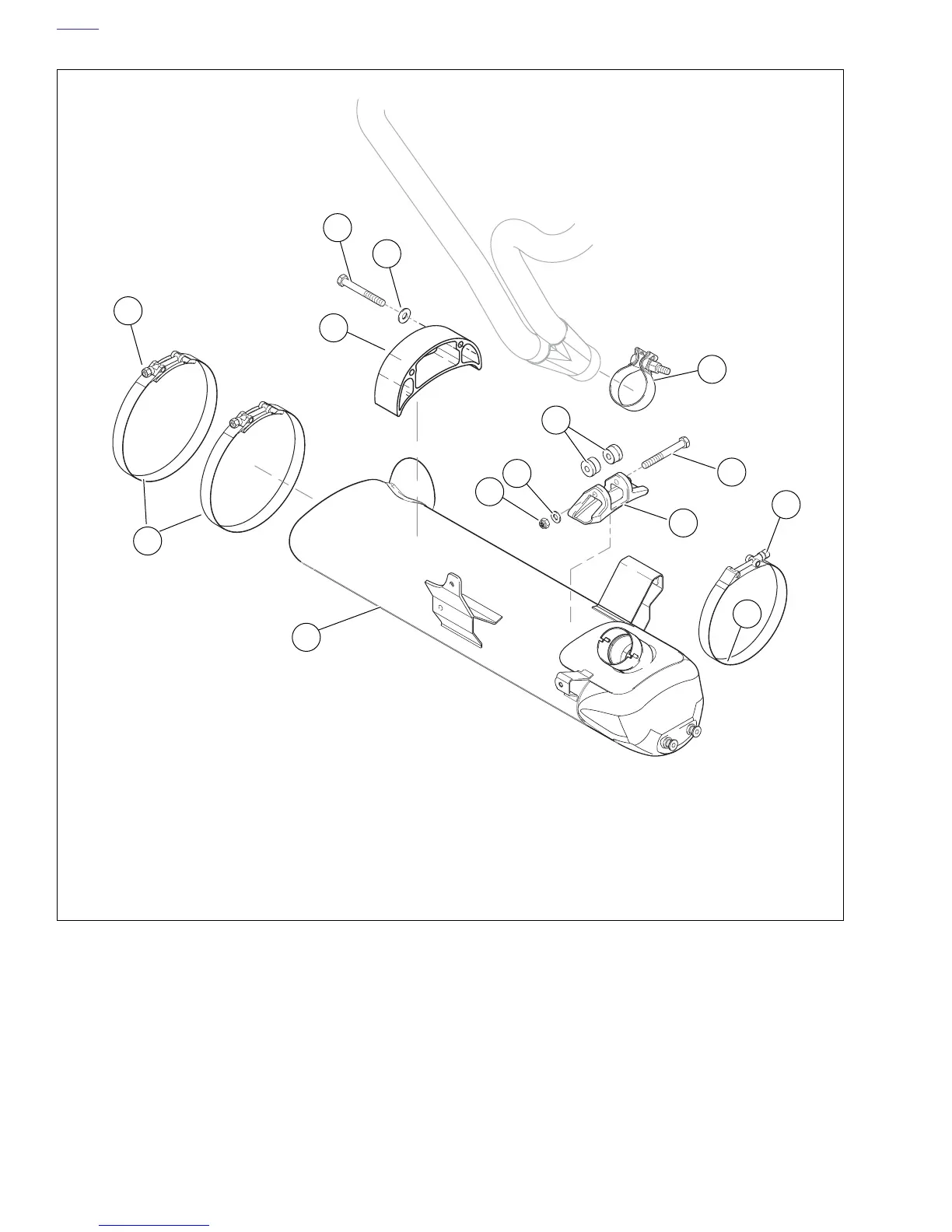

Figure 3-3. Muffler and Mounting System (XB9SX Model)
1. Torca clamp
2. Front muffler mount
3. Front muffler mount fastener (1)
4. Front muffler mount bushings (2)
5. Front muffler mount washer (1)
6. Front muffler mount nut (1)
7. Front muffler strap fastener
8. Front muffler strap
9. Rear muffler bracket
10. Rear muffler bracket screw (2)
11. Flat washer (2)
12. Rear muffler strap fastener
13. Rear Muffler strap, rear (2)
14. Muffler
11
9
14
8
2
1
13
3
10
b0986
x
3
x
12
7
4
5
6
