2007 Buell Lightning: Engine 3-17
HOME
NOTE
Remove shop towel from entrance of throttle body to ensure
proper operation of induction module.
13. See Figure 3-12. Connect throttle position sensor (2)
[88].
14. Connect fuel injector leads (3) [84 & 85].
15. Connect fuel line (1).
16. Install throttle body velocity stack.
17. Install air filter base plate. See 4.44 AIR CLEANER
ASSEMBLY.
18. Install muffler. See 2.32 EXHAUST SYSTEM.
NOTE
To remove and install the interactive exhaust system, see 7.6
INTERACTIVE EXHAUST SYSTEM.
19. Install intake cover. See 2.38 INTAKE COVER ASSEM-
BLY.
20. Install rear belt and idler pulley. See 6.6 DRIVE BELT
SYSTEM.
21. Install left side rider footrest and support plate. See 2.33
FOOTPEG, HEEL GUARD AND MOUNT.
22. Install sprocket cover. See 2.34 SPROCKET COVER.
23. Install chin fairing. See 2.37 CHIN FAIRING.
24. Install air scoops, right and left sides. See 2.39 AIR
SCOOPS.
25. Connect fuel pump. See4.39 FUEL PUMP.
NOTE
The connection for fuel pump is just above the pump located
at the rear of the fuel tank on the left side of the vehicle.
Connect positive (+) battery cable first. If positive (+)
cable should contact ground with negative (-) cable con-
nected, the resulting sparks can cause a battery explo-
sion, which could result in death or serious injury.
(00068a)
26. Connect negative ground cable to battery and tighten
fastener to 72-96 in-lbs (8-11 Nm).
After installing seat, pull upward on front of seat to be
sure it is in locked position. While riding, a loose seat can
shift causing loss of control, which could result in death
or serious injury. (00070a)
27. Install seat. See 2.44 SEAT.

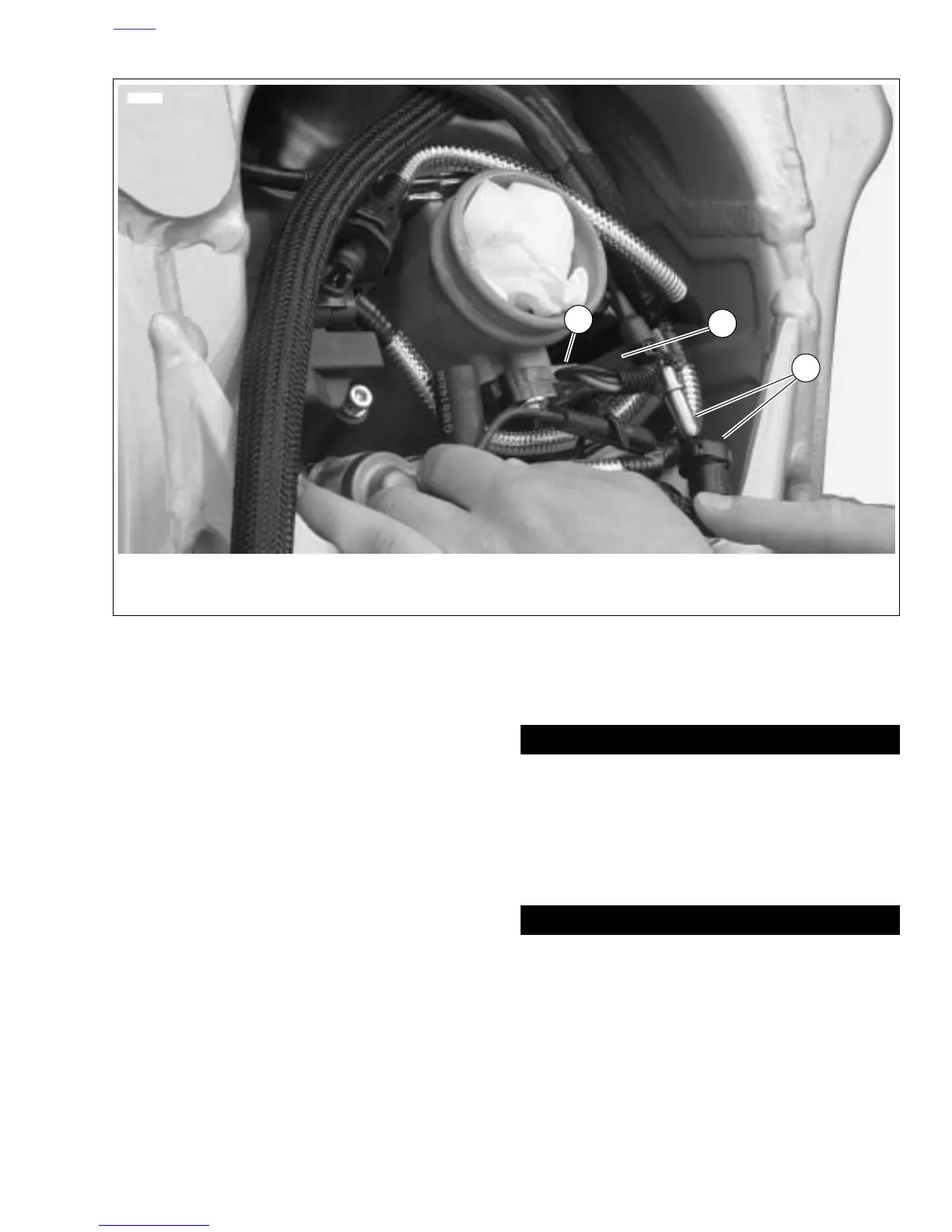

Figure 3-12. Fuel Line and DDFI Electrical Connections (Typical)
2
10646a
1. Fuel line connection
2. Connection for throttle position sensor [88]
3. Connections for fuel injectors [84 & 85]
1
3
