Buell 2007 LIGHTNING Service Manual

3-28 2007 Buell Lightning: Engine
HOME
40. See Figure 3-30. If the crankcases are being separated it
will be necessary to remove rear isolator assembly by
removing the forward two fasteners first and then the two
rear fasteners (re-install with new fasteners).
41. See Figure 3-31. Place a block of wood between rear
isolator mount on main frame and swingarm/oil tank.
42. Route a ratcheting tie down through the swingarm bear-
ings, up over the main frame, through the top stabilizer
area, back down to the ratchet mechanism and secure
swingarm to main frame.
NOTE
See Figure 3-32. This allows the vehicle to remain together
as a rolling chassis and to be removed from the lift and stored
if necessary.
43. Remove support from under swingarm/oil tank.
44. Remove overhead support.

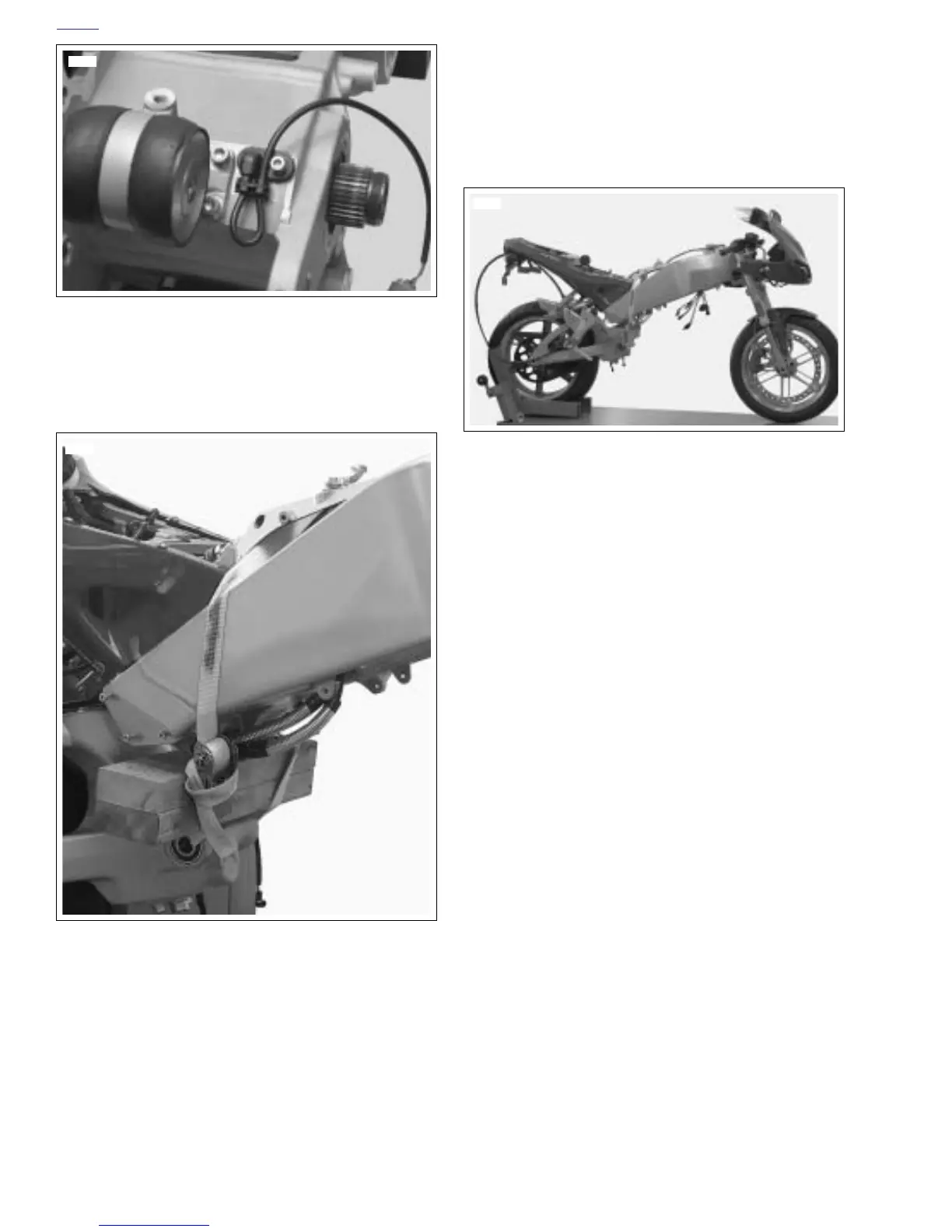

Figure 3-30. Rear Isolator and Mounting Hardware
Figure 3-31. Securing Vehicle for Relocation (Typical)
8723a
8728
Figure 3-32. Rolling Chassis (Typical)
8726

Buell 2007 LIGHTNING Specifications

General

Year	2007
Manufacturer	Buell
Model	Lightning
Category	Motorcycle
Displacement	1203 cc
Bore x Stroke	88.9 mm x 96.8 mm
Compression Ratio	10.0:1
Fuel System	Electronic fuel injection
Transmission	5-speed
Final Drive	Belt
Rear Suspension	Showa shock absorber
Rear Brakes	Single disc, 1-piston caliper
Engine Type	V-Twin
Ignition	Digital
Front Suspension	Showa inverted fork
Front Brakes	Single disc, 6-piston caliper
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Wheelbase	52.0 inches
Seat Height	30.1 inches
Dry Weight	395 lbs
Fuel Capacity	14.5 liters
