2007 Buell Lightning: Engine 3-27
HOME

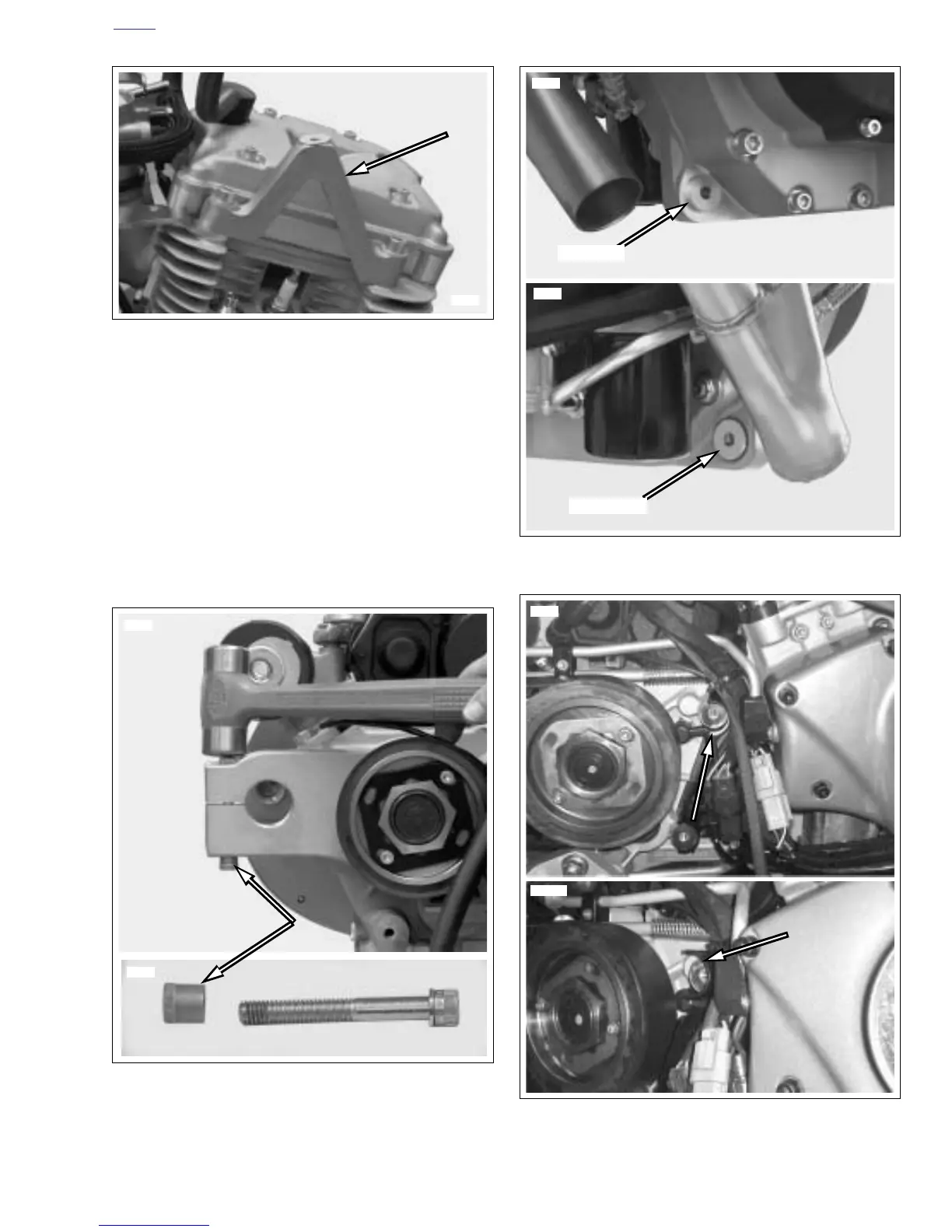

39. Once engine has been removed from vehicle finish
removing the following items as required:
a. Shifter assembly. 6.2 PRIMARY COVER.
b. See Figure 3-26. Center tie bar mount.
c. See Figure 3-27. Swingarm pivot shaft pinch bolt
threaded insert.
d. See Figure 3-28. Aluminum bushings from front
exhaust mount.
e. Timer cover.
f. See Figure 3-29. Wire guard located under the
sprocket cover.
Figure 3-26. Center Tie Bar Mount
Figure 3-27. Removing Threaded Insert
8725
8724
8729
Figure 3-28. Front Exhaust Mount Bushings (2 piece)
Figure 3-29. Wire Guard
Left Side
Right Side
8718
8727
12367
12369a
