2007 Buell Lightning: Engine 3-33
HOME
19. See Figure 3-44. Apply LOCTITE 271 (red) to rear muf-
fler bracket fasteners, install and tighten to 32-36 ft-lbs
(43.4-48.8 Nm).
20. Install front muffler mount and leave loose at this time.
NOTES
● DO NOT install muffler at this time. It is necessary to
install muffler mounts first in order to properly install feed
oil line.
● If any oil line fittings are found to be loose, or not oriented
in the proper position, those fittings must be removed
and thoroughly cleaned. After cleaning, apply LOCTITE
565 Sealant to the fitting and re-install to the correct ori-
entation. When tightening oil lines, always support the oil
line fitting with a wrench to maintain proper orientation
and prevent damage to the oil line fitting.

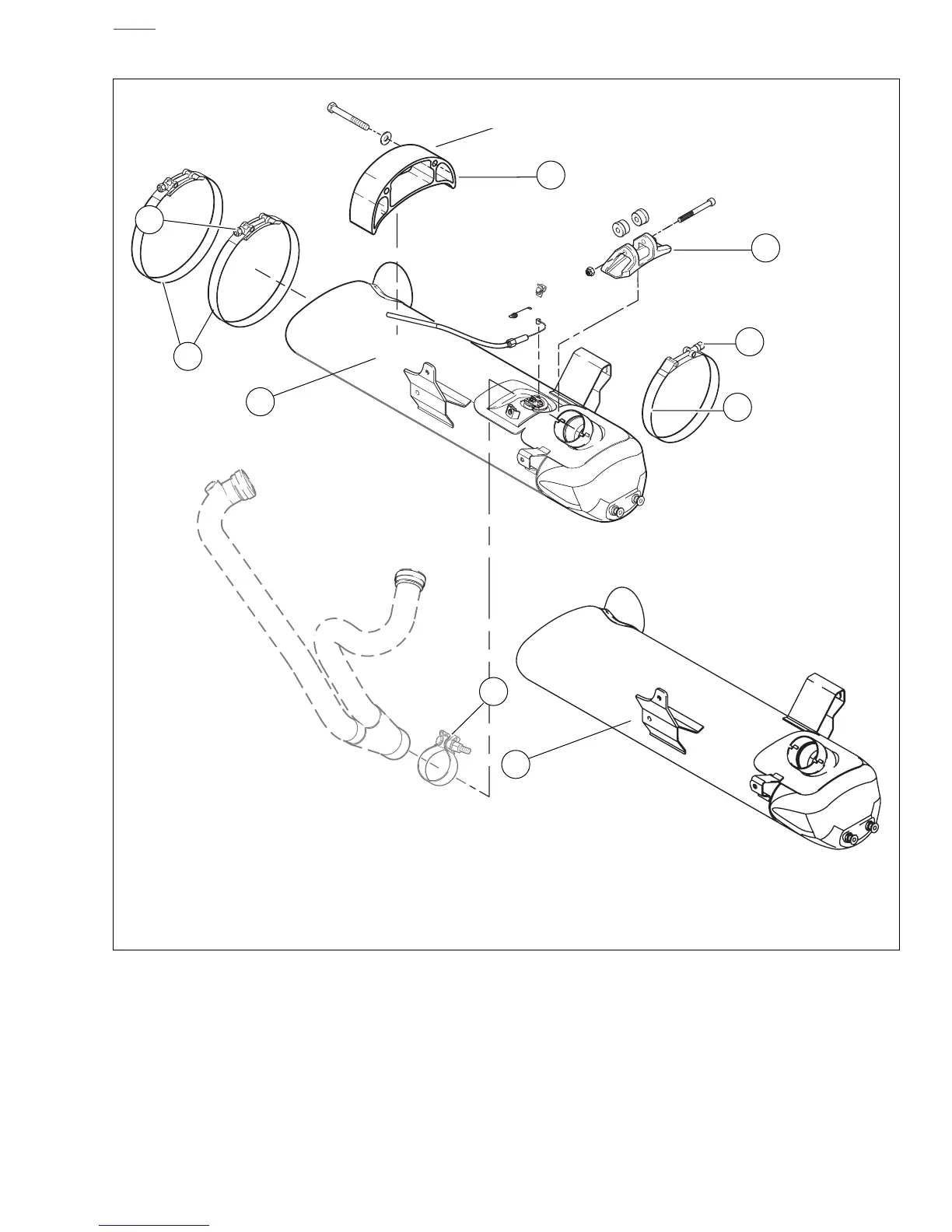

Figure 3-44. Muffler Mounting System (XB9S) and (XB12S)
Rear muffler mount
b0986x3a
1. Clamp, Torca
2. Muffler (XB9S)
3. Muffler (XB12S)
4. Muffler strap, front
5. Front muffler strap fastener
6. Front muffler mount
7. Rear muffler bracket
8. Rear muffler strap fastener
9. Muffler strap, rear (2)
2
3
4
5
6
7
7
8
1
