5-14 2007 Buell Lightning: Starter

HOME

Solenoid Hold-in Test

1. See Figure 5-12. With test leads still connected in the

manner speciﬁed in the previous SOLENOID PULL-IN

TES T,

disconnect solenoid motor terminal/battery

negative test lead (B) at negative battery post only;

reconnect loose end of this test lead to positive bat-

tery post instead.

2. Observe starter pinion.

a. If starter pinion remains in pull-in position, solenoid

is working properly.

b. If starter pinion does not remain in pull-in position,

replace the solenoid.

Solenoid Return Test

1. See Figure 5-13. With test leads still connected in the

manner speciﬁed at the end of the previous SOLENOID

HOLD-IN TEST,

disconnect solenoid relay terminal/

positive battery post test lead (C) at either end.

2. Observe starter pinion.

a. If starter pinion returns to its original position, sole-

noid is working properly.

b. If starter pinion does not return to its original posi-

tion, replace the solenoid.

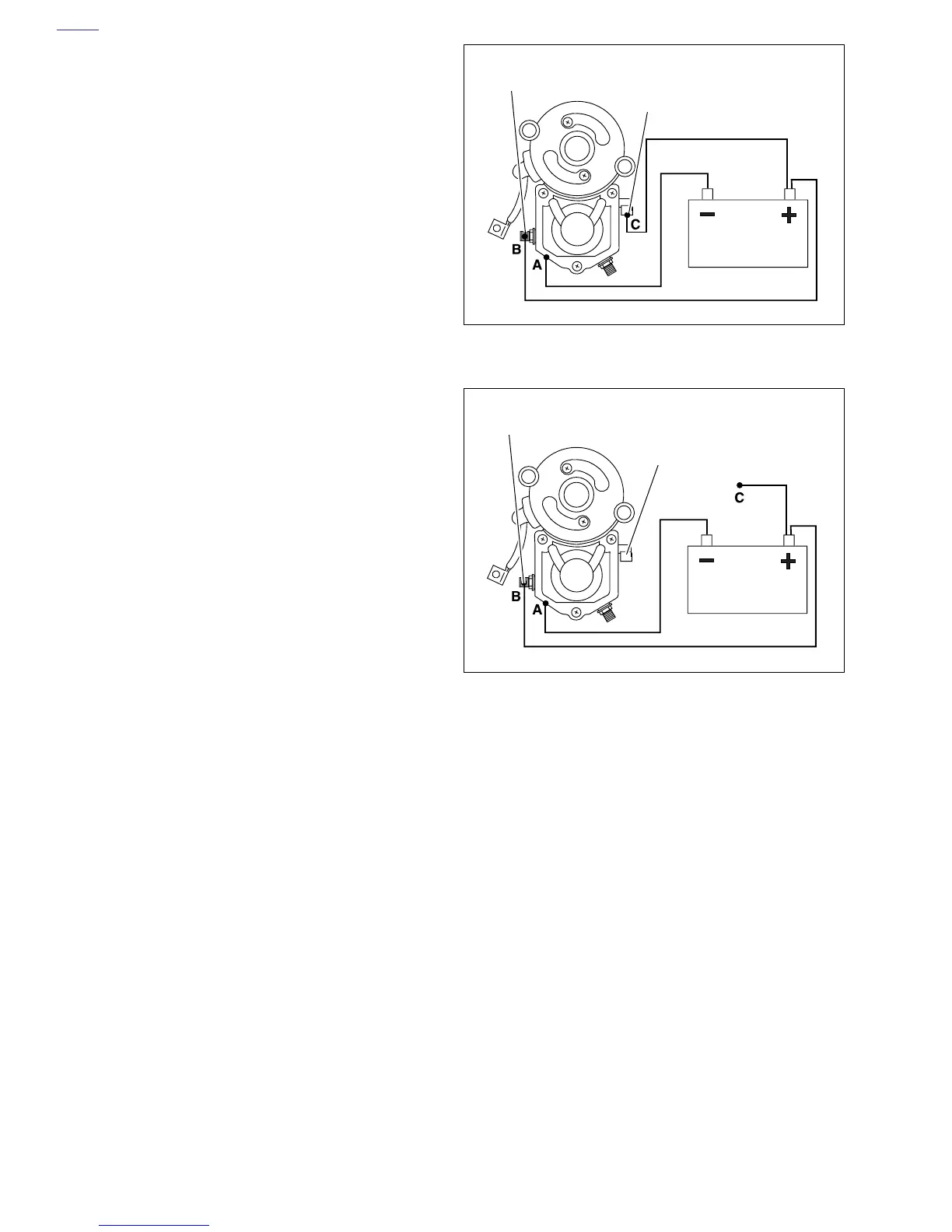

Figure 5-12. Hold-In Test

Figure 5-13. Return Test

Battery

b0162a5x

Motor terminal

Relay terminal

Battery

b0163a5x

Motor terminal

Relay terminal
