6-10 2007 Buell Lightning: Drive/Transmission
HOME

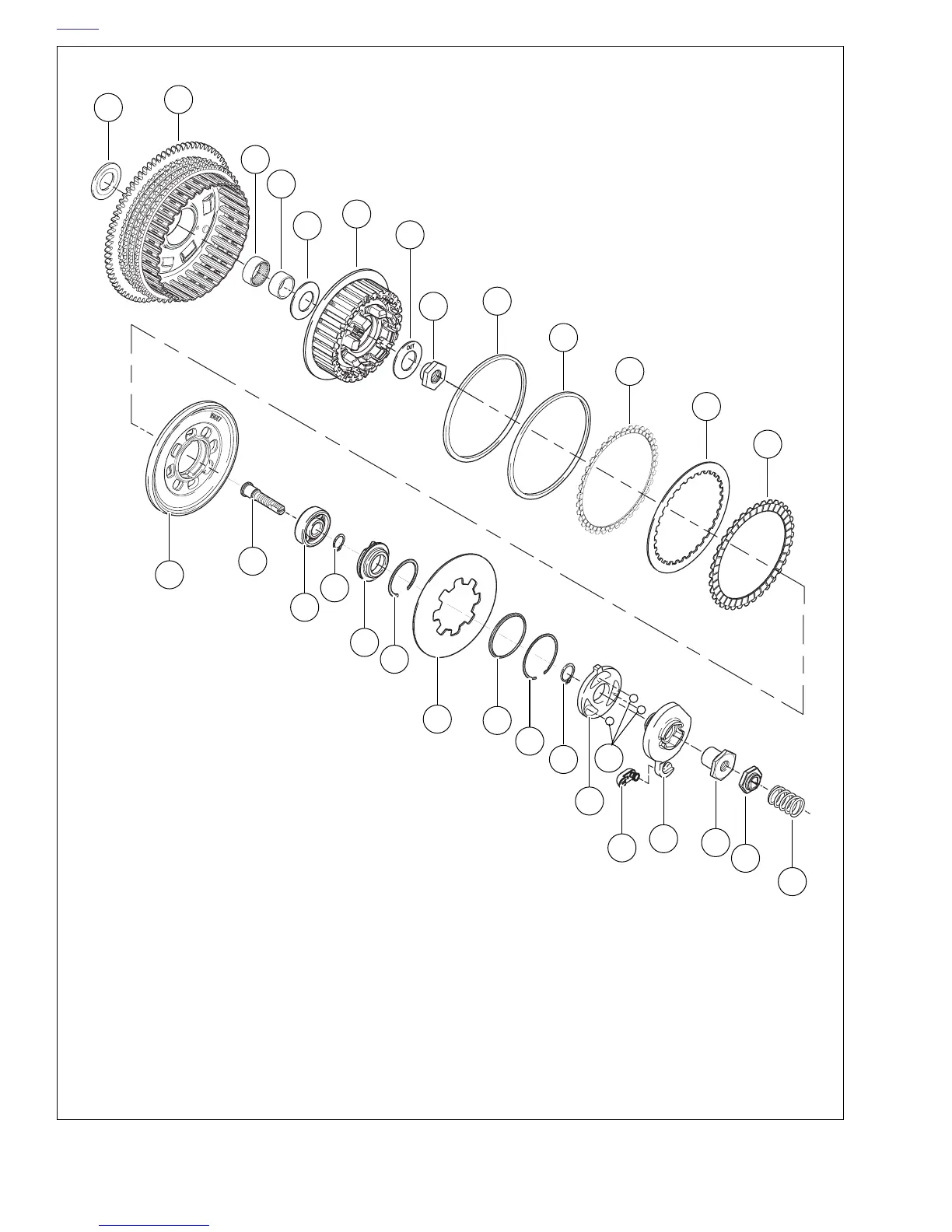

Figure 6-12. Clutch Assembly
30
18
19
20
21
22
23
25
26
27
29
28
16
17
24
15
13
12
11
10
9
7
5
4
3
2
1
14
8
6
1. Spring
2. Lockplate
3. Nut
4. Outer ramp
5. Coupling
6. Ball (3)
7. Inner ramp
8. Retaining ring
9. Retaining ring
10. Spring seat
11. Diaphragm spring
12. Retaining ring
13. Release plate
14. Retaining ring
15. Bearing
16. Adjusting screw
17. Pressure plate
18. Friction plate, paper (7)
19. Steel plate (7)
20. Friction plate, narrow
21. Damper spring
22. Damper spring seat
23. Mainshaft nut
24. Washer
25. Clutch hub
26. Inner thrust washer
27. Needle bearing Inner race
28. Needle bearing
29. Clutch shell and sprocket
30. Outer thrust washer
