6-12 2007 Buell Lightning: Drive/Transmission

HOME

ADJUSTING SCREW DISASSEM-

BLY/ASSEMBLY

1. See Figure 6-15. Remove adjusting screw assembly.

a. Remove large retaining ring.

b. Remove adjusting screw assembly from pressure

plate.

2. If necessary, disassemble adjusting screw assembly.

a. Remove and discard small retaining ring (6).

b. Separate the adjusting screw (8) from the bearing

(7) and release plate (5).

c. Remove bearing (7) from release plate (5).

3. Replace components as required and reassemble

adjusting screw assembly in reverse order.

4. Install adjusting screw assembly into pressure plate.

a. See Figure 6-37. Align two tabs on perimeter of

release plate with corresponding recesses (3) in

pressure plate.

b. Secure the adjusting screw assembly with new

retaining ring.

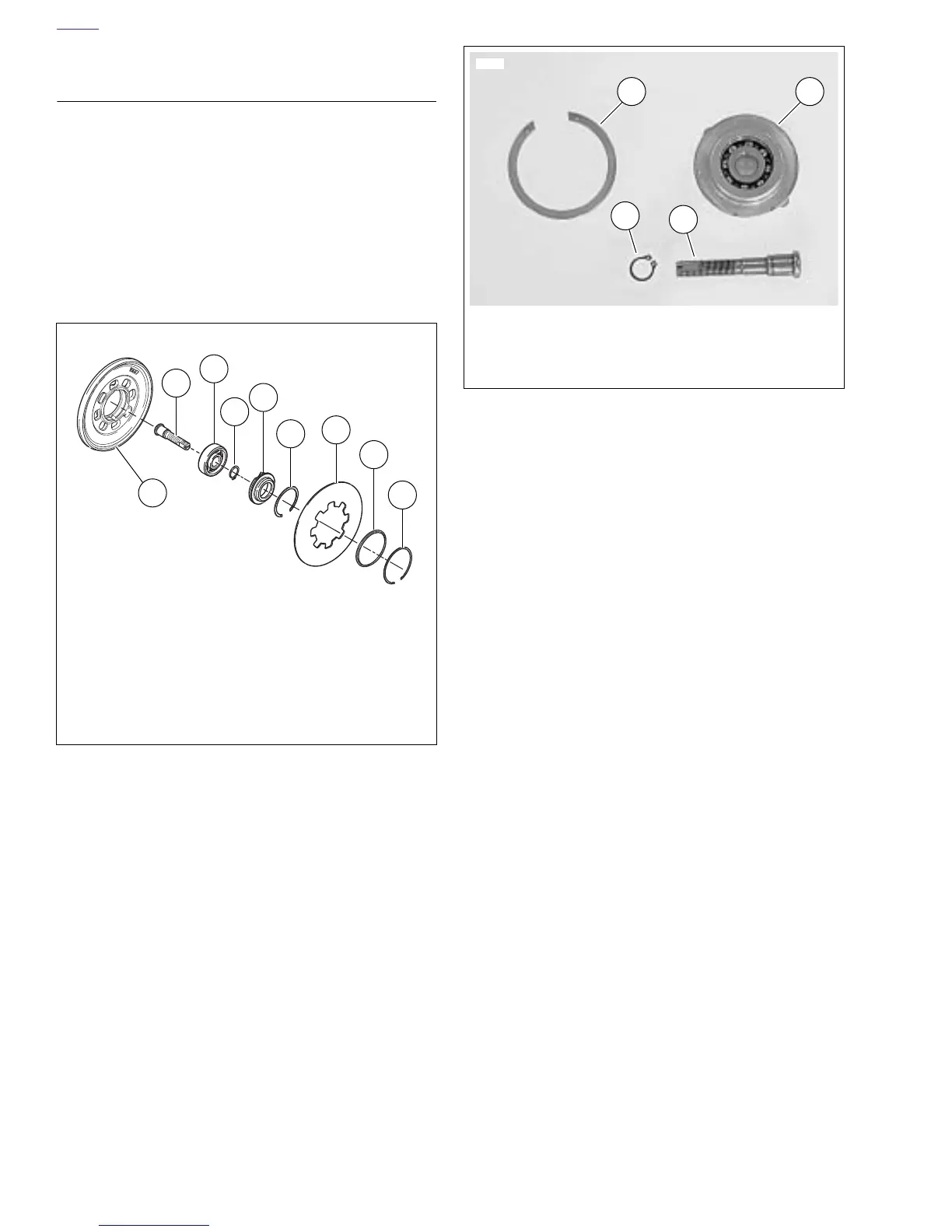

Figure 6-15. Adjusting Screw Assembly

1. Retaining ring

2. Spring seat

3. Diaphragm Spring

4. Retaining ring

5. Release plate

6. Retaining ring

7. Bearing

8. Adjusting screw

9. Pressure plate

b1062x6x

Figure 6-16. Adjusting Screw Assembly

6251

1. Retaining ring

2. Bearing and release plate

3. Retaining ring

4. Adjusting screw
