2007 Buell Lightning: Drive/Transmission 6-43

HOME

Main Drive Gear Seal

1. See Figure 6-78. From outside of crankcase, install

PILOT (Part No. HD-47856-2) over end of main drive

gear bearing inner race.

2. Coat lips of new main drive gear seal with GENUINE

HARLEY-DAVIDSON FORMULA+ TRANSMISSION

AND PRIMARY CHAINCASE LUBRICANT (Part No.

99851-05).

NOTE

ADAPTER (Part No. HD-47856-4) and main drive gear have

left-hand threads.

3. See Figure 6-79. Place seal over pilot and position seal

squarely in end of crankcase bore.

4. See Figure 6-80. THREAD ADAPTER (Part No. HD-

47856-4) onto end of main drive gear several turns. Do

NOT tighten. Doing so could make it difﬁcult to remove

adapter after seal has been installed.

5. See Figure 6-81. Slide INSTALLER (Part No. HD-47856-

1) over ADAPTER until cupped end of installer is ﬂat

against seal.

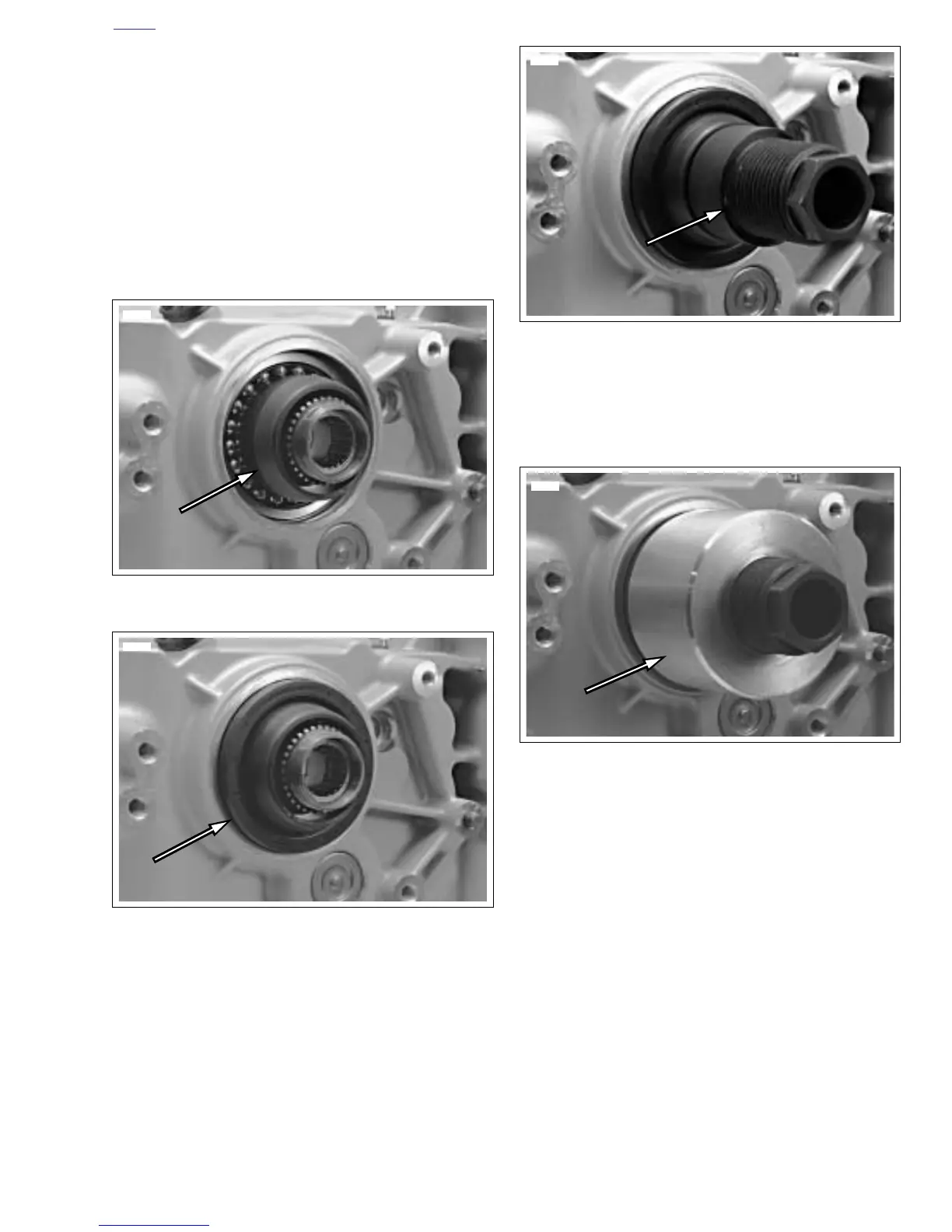

Figure 6-78. Install PILOT (Part No. HD-47856-2) (Typical)

Figure 6-79. Install Main Drive Gear Seal (Typical)

12040

12041

Figure 6-80. Install ADAPTER (Part No. HD-47856-4)

(Typical)

Figure 6-81. Place INSTALLER (Part No. HD-47856-1)

over ADAPTER (Typical)

12042

12043
