7-6 2007 Buell Lightning: Electrical

HOME

REMOVAL

1. Remove seat. See 2.44 SEAT.

1WARNING1WARNING

To prevent accidental vehicle start-up, which could

cause death or serious injury, disconnect negative (-)

battery cable before proceeding. (00048a)

2. Disconnect negative battery cable.

3. Remove windscreen.

4. See Figure 7-3. Disconnect:

●

Turn signal ﬂasher [30]

●

Turn signals [31]

●

Left [24] and right [22] handlebar wiring harnesses

●

Instrument cluster [39]

●

Horn [122]

5. Remove horn (12) from horn mount (10).

6. Cut cable strap (7) that loosely holds main wiring har-

ness (8) to the ignition switch (6) and disconnect ignition

switch connector [33].

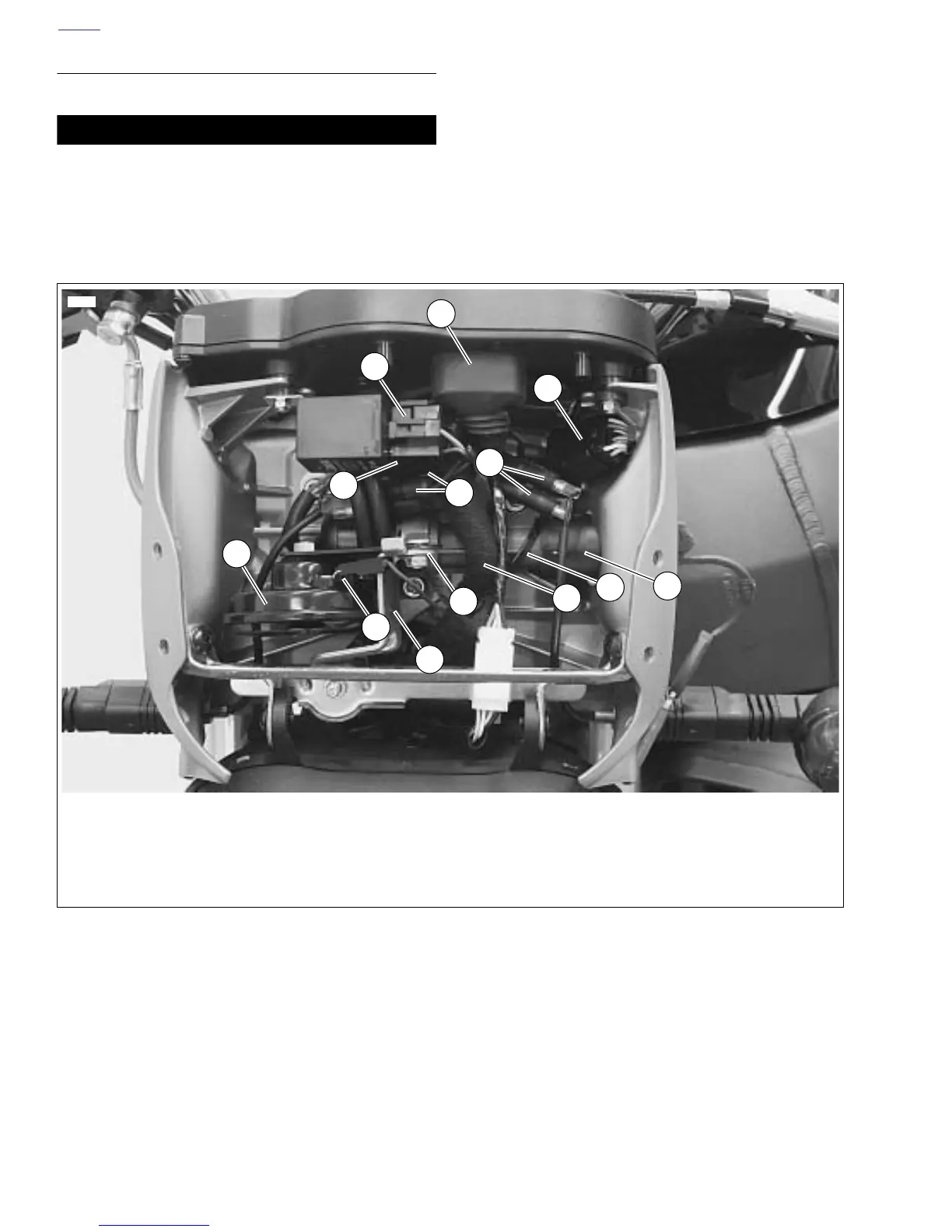

Figure 7-3. Electrical Connectors Behind Windscreen

1. Turn signal ﬂasher connector [30]

2. Instrument cluster connector [39]

3. Left handlebar connector [24]

4. Right handlebar connector [22] (Behind No. #1)

5. Turn signal connectors [31]

6. Ignition switch

7. Cable strap

8. Main harness

9. Horn fastener

10. Horn mount

11. Horn connector [122]

12. Horn

12155
