7-18 2007 Buell Lightning: Electrical
HOME
Diodes
See Figure 7-18. The diode is located in the fuse block under
the seat.
1. See Figure 7-20. Locate diode within fuse block.
2. Test diode using Starter Test flow charts under DIAG-
NOSTICS.
3. Replace the diode by pulling it straight out. Ensure it is
installed in the correct direction.

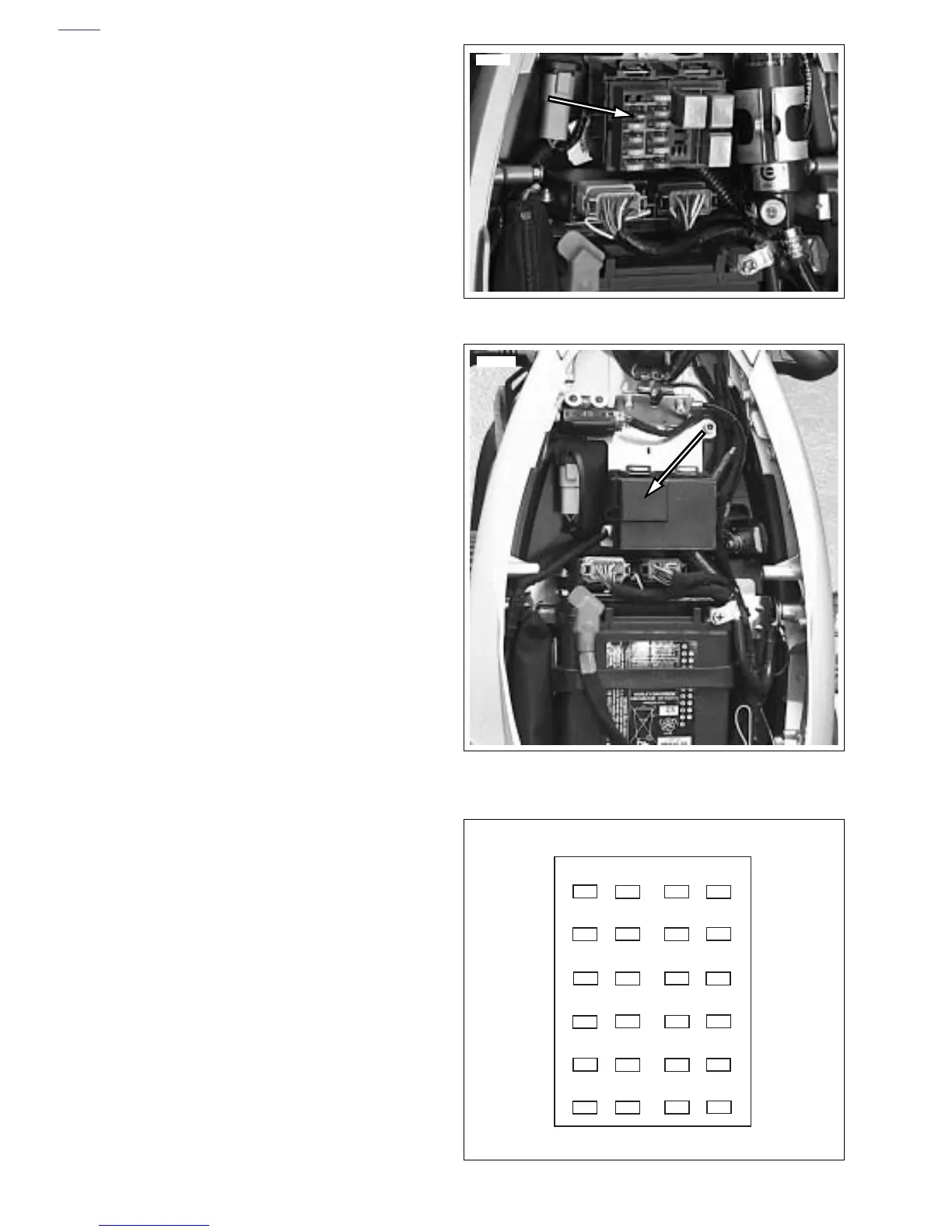

Figure 7-18. Fuse Block (contains diode)
Figure 7-19. Fuse Block (XB12Ss)
(contains diode)
Figure 7-20. Fuse Blocks
10658a
12154
39
40
41
42
43
44
33
34
35
36
37
38
21
22
23
24
25
26
28
29
30
31
32
27
Spare
Diode
Bk/Hn/Mflr
Fan
IGN
Acces.
Key Sw
Lights
ECM
Spare
Empty
Battery
