2007 Buell Lightning: Electrical 7-17
HOME
Ignition Relay
The ignition relay is located under the seat. Test the relay as
follows:
1. See Figure 7-15. Locate ignition relay (2) within relay
block.
2. To test relay, proceed to Step 3. If installing a new starter
relay, remove old relay. Install new relay into relay block.
3. See Figure 7-17. Obtain a 12 volt battery and a continu-
ity tester or ohmmeter.
a. Pull relay from relay block.
b. Connect positive battery lead to the 86 terminal.
c. Connect negative battery lead to the 85 terminal to
energize relay.
d. Check for continuity between the 30 and 87 termi-
nals. A good relay shows continuity (continuity tester
lamp “on” or a zero ohm reading on the ohmmeter).
A malfunctioning relay will not show continuity and
must be replaced.
4. Replace the relay with a new relay if necessary.
Key Switch Relay
See Figure 7-15. The key switch relay (1) is under the seat.
See Ignition Relay under 7.5 STARTER INTERLOCK for test-
ing procedure.
Battery Fuse
A 30 Amp battery fuse links the ignition key switch and the
battery. The 30 Amp battery fuse is located under the rider’s
seat. See 7.23 BATTERY FUSE AND FUSES for more infor-
mation.

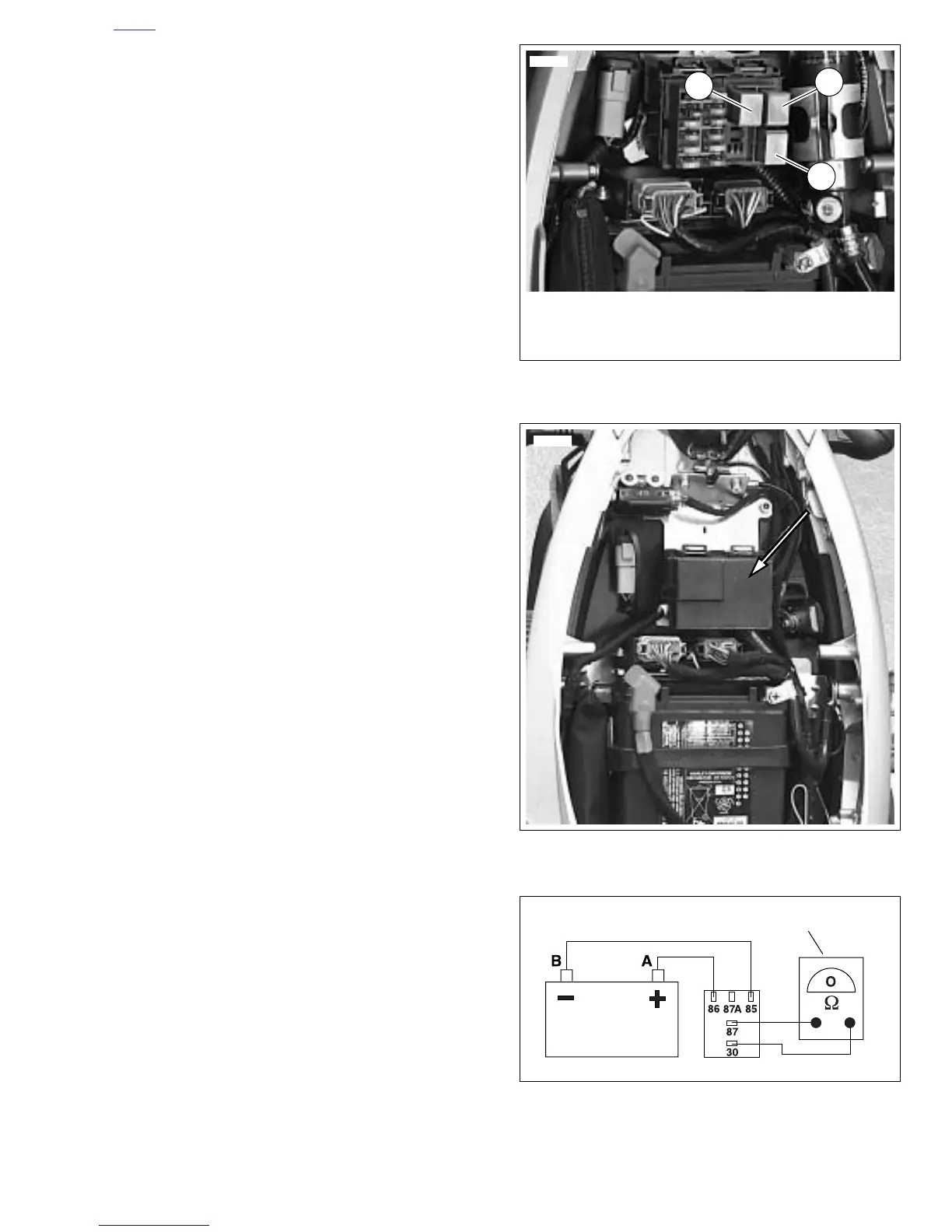

Figure 7-15. Relay Block
Figure 7-16. Relay Block (XB12Ss)
Figure 7-17. Starter Relay Test
1
10658a
1. Key switch relay
2. Ignition relay
3. Start relay
3
2
