7-16 2007 Buell Lightning: Electrical
HOME
TESTING/REPLACEMENT
Clutch Switch
See Figure 7-14. The clutch switch attaches to the clutch con-
trol lever bracket. The switch completes a path to ground for
the ignition relay and the starter relay when the clutch is dis-
engaged. Test the switch as follows:
1. Unplug the 2-place clutch switch connector [95].
2. Test the switch using an ohmmeter.
a. With clutch engaged (1) (switch open), the switch
should show ∞ ohms (infinite ohms).
b. With clutch disengaged (2) (switch closed), the
switch should show 0 ohms or little resistance.
3. Replace the assembly with a new switch if necessary.
See 2.26 CLUTCH CONTROL/CABLE.
4. Tighten fasteners to 7-10 in-lbs (0.8-1.12 Nm).

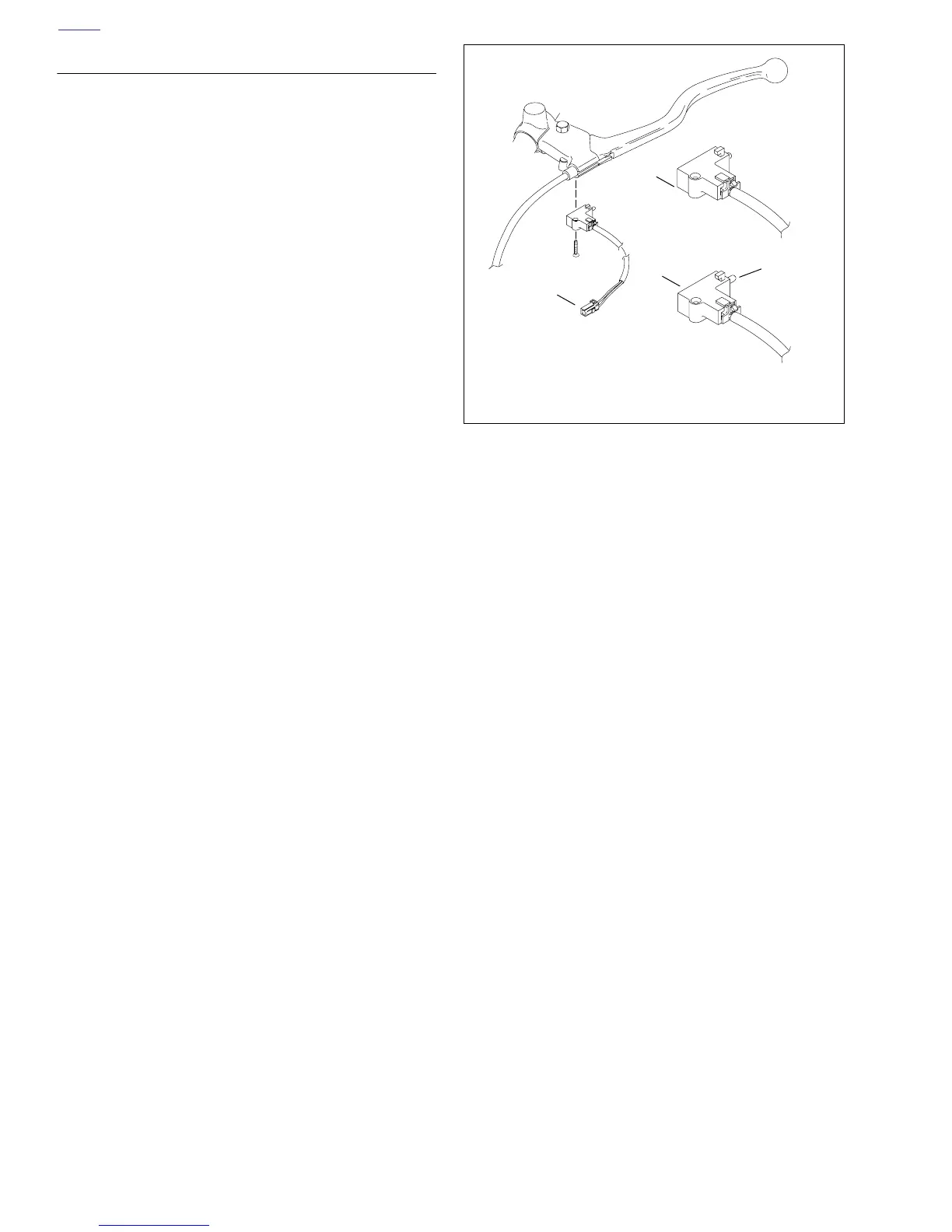

Figure 7-14. Clutch Switch
b0393x7x
1. Clutch engaged (switch open)
2. Clutch disengaged (switch closed)
3. Connector [95]
Trigger
Button
3
1
2
