7-80 2007 Buell Lightning: Electrical
HOME

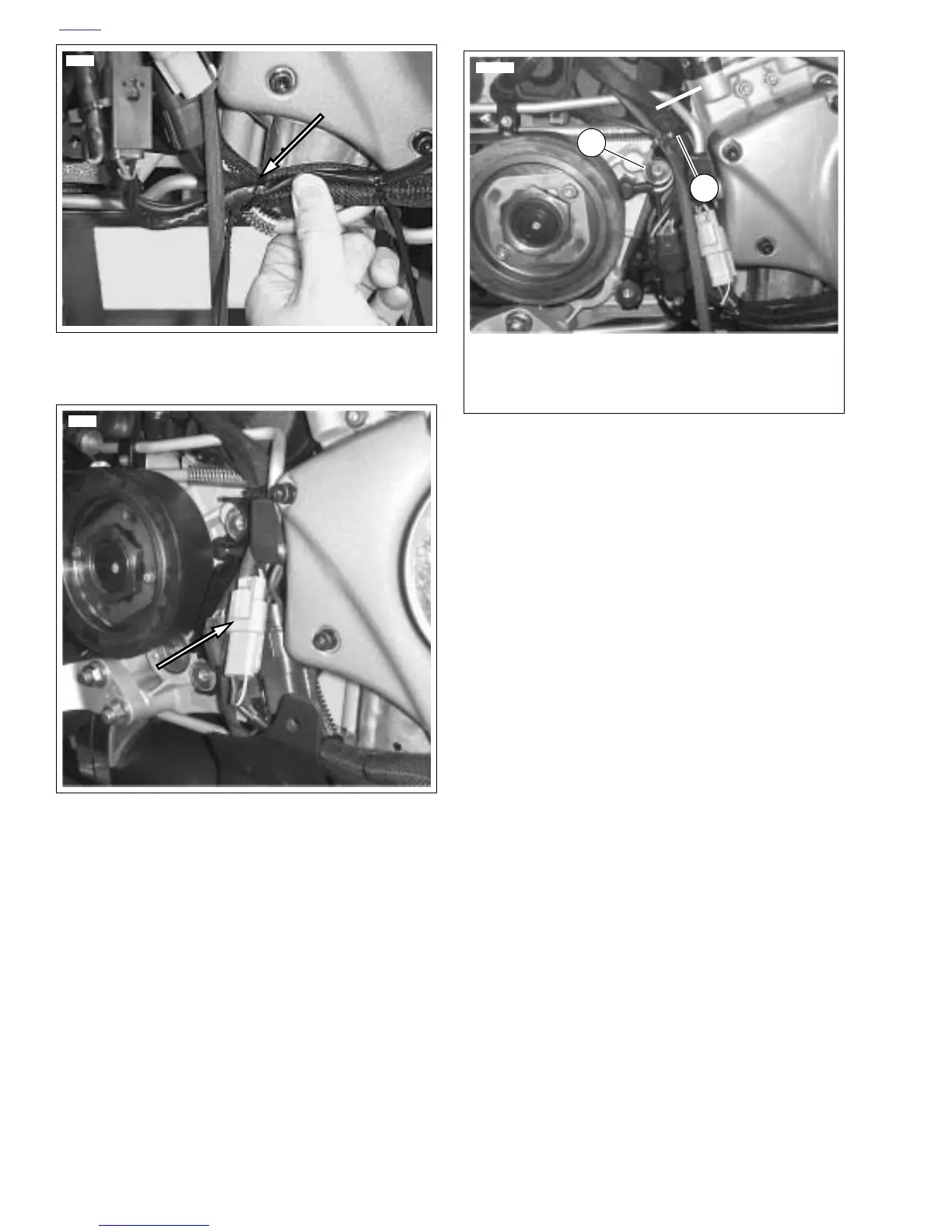

Figure 7-101. Cable Strap Wire Bundle to Return Oil Line
2nd Location
Figure 7-102. Vehicle Speed Sensor
12007
12369
Figure 7-103. Correct Location for Sprocket Cover Wiring
1. Sprocket cover boss
2. Main harness
3. Cable strap securing main harness wiring to
Return Oil Line, Upper Part of Sprocket Cover
3
12367
2
1
