2007 Buell Lightning: Chassis 2-37
HOME
6. See Figure 2-50. Disconnect brake light connector
located under the seat.
7. See Figure 2-51. Remove rear brake light switch (1)
(metric) and two copper crush washers (3) to detach
brake line (2) from master cylinder (4). Discard copper
crush washers.
8. Remove right side rider footpeg mount. See 2.33 FOOT-
PEG, HEEL GUARD AND MOUNT.
9. See Figure 2-51. Remove fasteners (11) (metric) to
detach master cylinder (4) from rider footpeg mount.
10. See Figure 2-52. Detach remote reservoir.
a. Remove top clamp (2) on hose connected to master
cylinder.
b. Remove fastener and washer (3) to detach reservoir
(1) from frame if necessary.

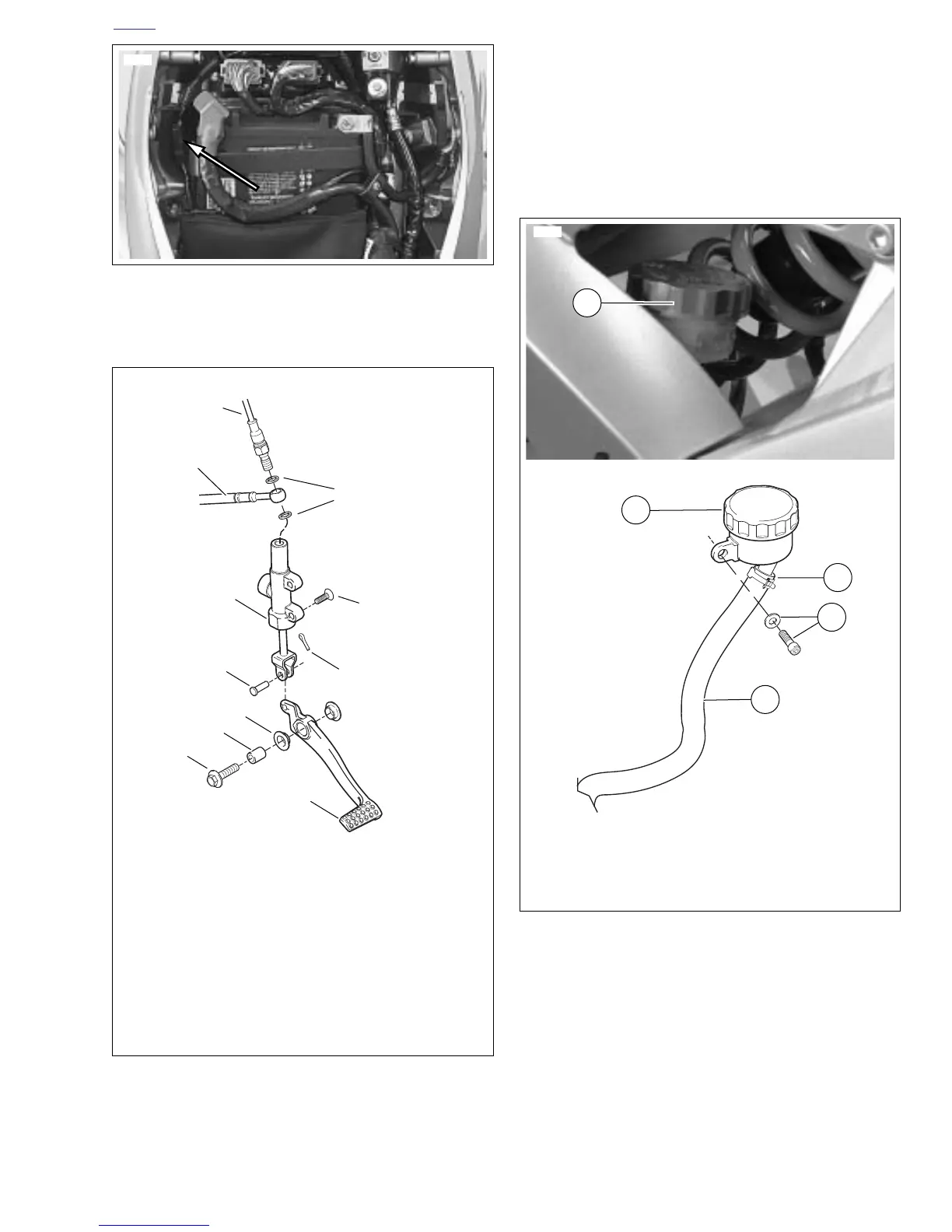

Figure 2-50. Brake Line Switch Connector (XB12S shown)
Figure 2-51. Rear Master Cylinder Assembly
8907c
b0983a2x
1. Rear brake light switch assembly
2. Brake line
3. Copper washer
4. Rear master cylinder body
5. Clevis pin
6. Pedal bearing
7. Sleeve
8. Brake pedal fastener
9. Brake pedal
10. Cotter pin
11. Rear master c
y
linder mount screw
4
5
7
8
6
10
9
2
1
11
3
Figure 2-52. Remote Reservoir (XB12S shown)
9956
1. Reservoir
2. Clamp
3. Fastener and washer
4. Remote reservoir hose
4
1
1
2
3
b11461x1
