2-14 2007 Buell P3: Chassis
HOME
INSTALLATION
1. Place wheel centrally in the swingarm. Slide wheel far
enough forward to slip belt over sprocket and rest belt on
sprocket inboard of the teeth.
NOTE
Do not place belt on sprocket teeth at this time. Alignment of
parts will be difficult. Resting belt next to teeth allows slack for
easier alignment of wheel assembly.
2. See Figure 2-10. Hold left side spacer in place and slide
caliper and carrier over rotor.
3. Slide axle through washer, swing arm, carrier, left side
spacer and wheel assembly.
a. See Figure 2-11. Hold right side spacer in place.
b. Insert axle through right side spacer and swingarm.
c. Install flat washer, lockwasher and axle nut.
4. Place screwdriver or rod through axle hole and torque
rear axle nut to 49-51 ft-lbs (67-69 Nm).
5. Slide belt on sprocket teeth by rotating wheel to “walk”
belt onto teeth.
6. Lower motorcycle rear wheel.

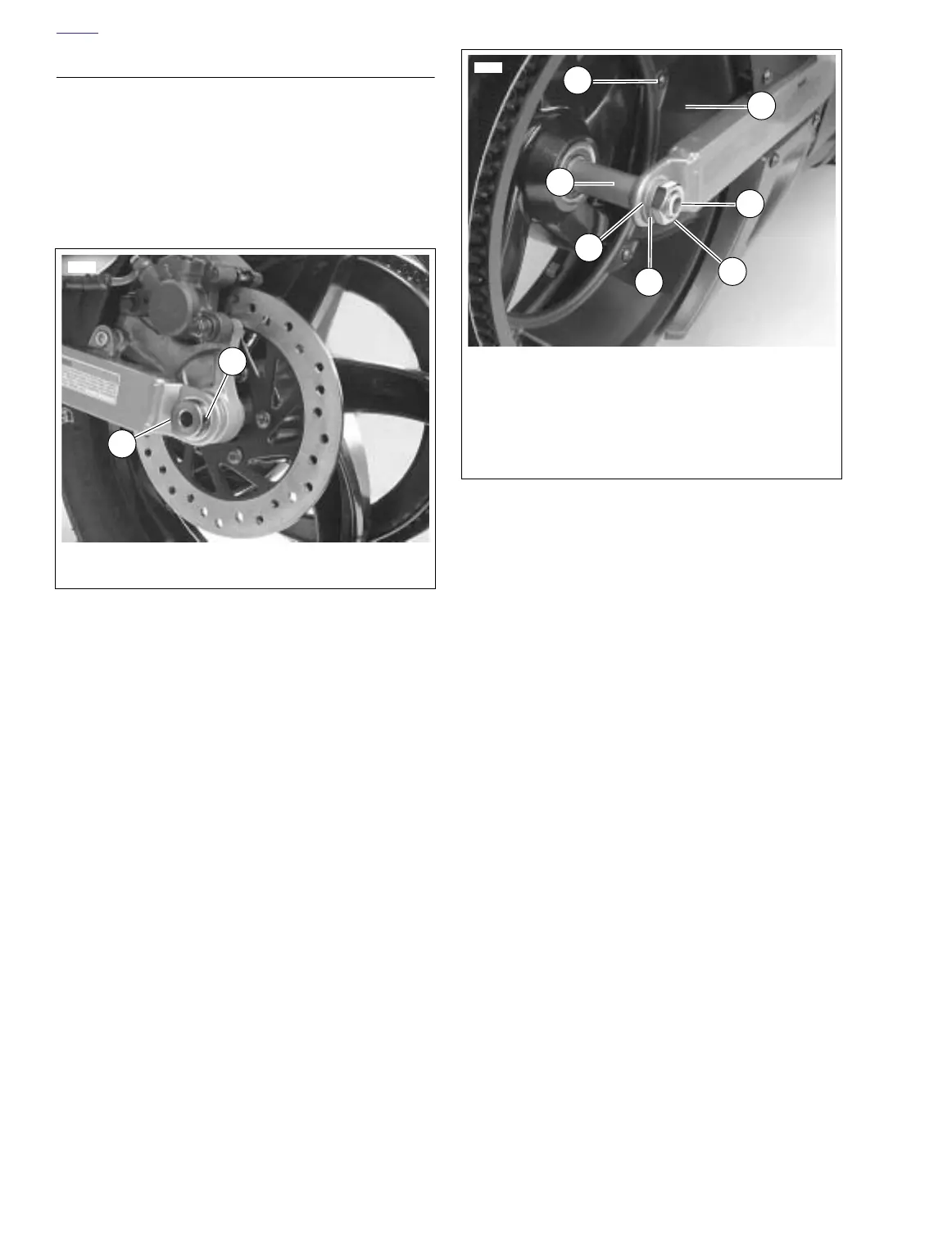

Figure 2-10. Rear Axle, Left Side
2
1
1. Axle
2. Rear axle hole
7705
Figure 2-11. Rear Axle, Right Side
2
1
7701
1. Axle
2. Axle nut (metric)
3. Lockwasher
4. Washer
5. Right axle spacer
6. Sprocket bolts (5)
7. Sprocket cover
6
7
5
3
4
